Schneider Electric HLL36025 Molded Case Circuit Breaker 600V 25A
Schneider Electric
$2,849.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

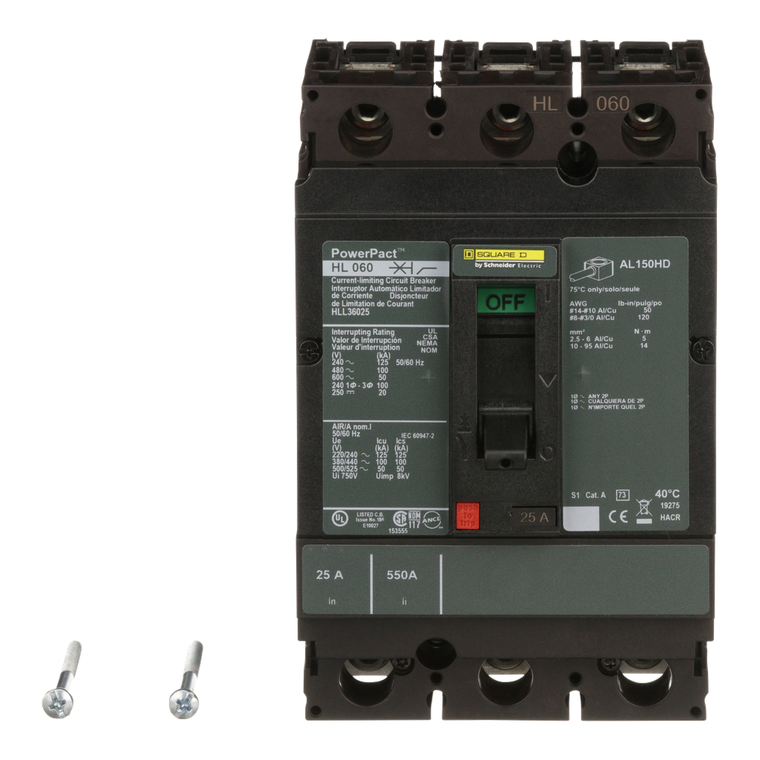

Schneider Electric HLL36025 Molded Case Circuit Breaker 600V 25A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 50kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 25A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Net Weight:
- 2.2 kg
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Line Rated Current:
- 25-25 A
- Eu Rohs Directive:
- Compliant with Exemptions
- Mercury Free:
- Yes
- Breaking Capacity:
- 125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
- Ambient Air Temperature For Storage:
- -50-85 °C
- Depth:
- 86 mm
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- [Ics] Rated Service Breaking Capacity:
- 125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Trip Unit Technology:
- thermal-magnetic
- Magnetic Tripping Current:
- 750-750 A
- Circuit Breaker Application:
- HACR rated
- Suitability For Isolation:
- yes IEC 60947-2
- Environmental Disclosure:
- ENVPEP2206027EN
- Electrical Connection:
- lugs, line || lugs, load
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Magnetic Hold Current:
- 350 A
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Product Or Component Type:
- circuit breaker
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Utilisation Category:
- category A
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Product Name:
- PowerPact H
- Quality Labels:
- CE
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Ambient Air Temperature For Operation:
- -2-70 °C
- Width:
- 104 mm
- Control Type:
- toggle
- Device Application:
- distribution
- Protected Poles Description:
- 3t
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Pollution Degree:
- 3 IEC 60947-1
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Terminal Identifier:
- AL150HD
- Network Frequency:
- 50/60 Hz
- Breaking Capacity Code:
- L
- Pvc Free:
- Yes
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Height:
- 163 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Wire Stripping Length:
- 16 mm
- Mounting Mode:
- unit mount lug)
- Quantity Per Set:
- 1
- Mounting Support:
- lug
- Range:
- PowerPact
- Poles Description:
- 3P
- Color:
- Black
- Communication Interface:
- Modbus || Ethernet
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Product Certifications:
- UL || CSA || NOM
- Continuous Current Rating:
- 0.8
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- ENVEOLI2206027EN
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
