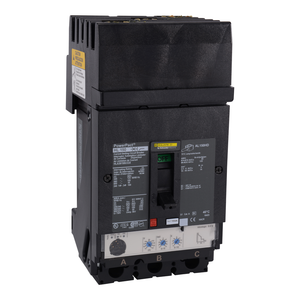

Schneider Electric HRA36150U43X Circuit breaker, PowerPacT H, 150A, 3 pole, 600VAC, 100kA, I-Line, Micrologic 5.2A, 80%, ABC

(No reviews yet) Write a Review
SKU:
HRA36150U43X
MPN:
HRA36150U43X
Condition:
New
Mounting Height:
4.5 in
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Trip Unit Name:
MicroLogic 5.2 A
Wire Stripping Length:
16 mm
Net Weight:
2.2 kg
Sustainable Offer Status:
Green Premium product
Country of Origin:
United States
Environmental Disclosure:
ENVPEP1311007EN
Length:
16 mm
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Product Name:
PowerPact H
Range:
PowerPact
Product Or Component Type:
circuit breaker
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Product Certifications:
UL || CSA || NOM
Pvc Free:
Yes
Breaking Capacity Code:
R
[Ics] Rated Service Breaking Capacity:
150 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 125 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 75 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 690 V AC 50/60 Hz IEC 60947-2
Height:
163 mm
Mercury Free:
Yes
Device Application:
distribution
Communication Interface:
Modbus || Ethernet
Mounting Support:
bracket
Ip Degree Of Protection:
front cover IP40 IEC 60529
Network Frequency:
50/60 Hz
Depth:
86 mm
Eu Rohs Directive:
Compliant
Rohs Exemption Information:
Yes
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Line Rated Current:
150-150 A
Ambient Air Temperature For Operation:
-25-70°C
Circuit Breaker Application:
HACR rated
Continuous Current Rating:
0.8
Breaking Capacity:
200 kA 240 V AC 50/60 Hz UL 489 || 200 kA 480 V AC 50/60 Hz UL 489 || 100 kA 600 V AC 50/60 Hz UL 489
Electrical Connection:
I-Line connection, line || lugs, load
Protected Poles Description:
3t
Poles Description:
3P
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Phase Connection:
ABC
Weight:
2.2 kg
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Color:
Black
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Terminal Identifier:
AL150HD
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Local Signaling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Pollution Degree:
3 IEC 60947-1
$16,254.00

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Ammeter with a 5.2A trip unit and an LSI function with a breaking capacity of 100kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 100kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
