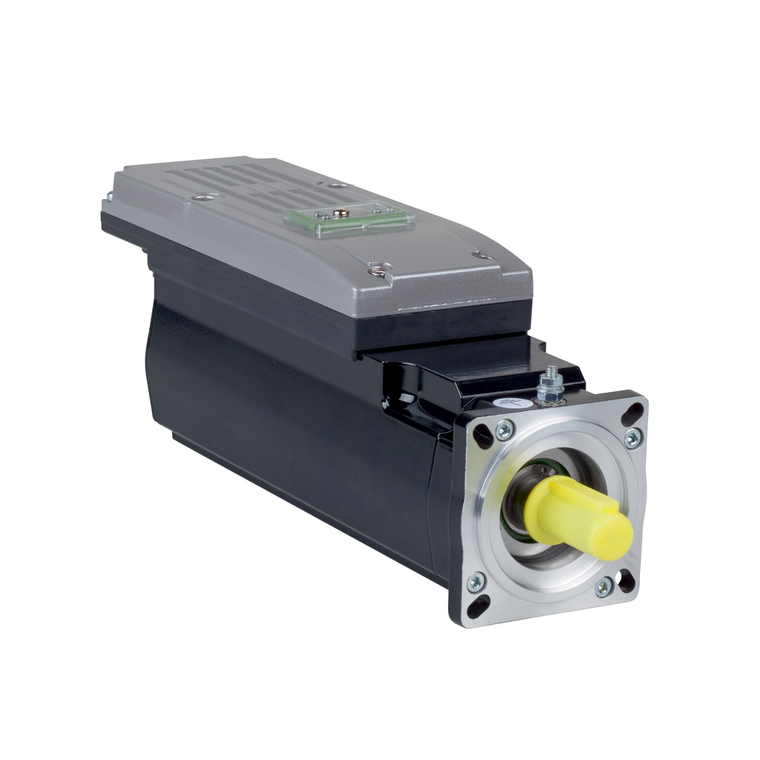

Schneider Electric ILM0702P01F0000 integrated servo motor - 1.7 Nm - 6000 rpm - with brake

(No reviews yet) Write a Review
SKU:
ILM0702P01F0000
MPN:
ILM0702P01F0000
Condition:
New
Holding Brake:
with
Peak Stall Torque:
7.6 N.m
Pvc Free:
Yes
Reach Free Of Svhc:
Yes
Motor Flange Size:
70 mm
Mercury Free:
Yes
Circle Diameter Of The Mounting Holes:
82 mm
Maximum Current Irms:
11.8 A
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Circularity Profile:
ENVEOLI1409011EN
Centring Collar Diameter:
60 mm
Weight:
3.7 kg
Type Of Cooling:
natural convection
Net Weight:
3.7 kg
Mounting Holes Diameter:
5.5 mm
Stator Inductance:
19 mH 20°C Ph/Ph || 9.5 mH 120°C Ph/N
Number Of Motor Poles:
6
Key Width:
18 mm
Shaft Diameter:
11 mm
Nominal Speed:
6000 rpm
Second Shaft:
without second shaft end
Environmental Disclosure:
ENVPEP1409011EN
Mounting Support:
international standard flange
Rotor Inertia:
0.51 kg.cm²
Line Rated Current:
1.5 A
Product Or Component Type:
servo motor integrated drive
China Rohs Regulation:
X
Feedback Type:
absolute single turn SinCos Hiperface
Number Of Motor Stacks:
2
Maximum Radial Force Fr:
710 N 1000 rpm || 560 N 2000 rpm || 490 N 3000 rpm || 450 N 4000 rpm || 410 N 5000 rpm || 390 N 6000 rpm
Continuous Stall Torque:
1.7 N.m
Shaft End:
untapped
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Speed Feedback Resolution:
128 periods
Continuous Stall Current:
2.5 A
Ip Degree Of Protection:
IP54
Stator Resistance:
4.2 Ohm 20°C Ph/Ph || 2.92 Ohm 120°C Ph/N
Range Of Product:
PacDrive 3
[Us] Rated Supply Voltage:
250...700 V
Number Of Mounting Holes:
4
Nominal Torque:
1.15 N.m
Width:
18 mm
Torque Constant:
0.76 N.m/A 120°C
Nominal Output Power:
720 W
Sustainable Offer Status:
Green Premium product
Maximum Axial Force Fa:
0.2 x Fr
Warranty:
18 months
Back Emf Constant:
48 V/krpm 20°C
$3,875.45

Description

This product is part of the PacDrive 3 range, an offer of integrated servo motors for machines from 0.31kW to 1.91kW. The 6-pole integrated servo motor features 2 stacks with a maximum mechanical speed of 6000RPM, a continuous rated stall torque 1.7Nm and smooth shaft. It is an equipped with a single-turn SinCos Hiperface® absolute encoder (128 periods per revolution) with holding brake. It is an integrated servo motor with a supply voltage of 250V to 700V, a continuous stall current of 2.5A and a maximum continuous power of 0.72kW. The shaft dimensions are 11mm (diameter) x 23mm (length). It is an IP54 rated product. The length of this product is 252mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 3.7kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. It supports international standard 70mm flange mount with a natural convection cooling system. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.
