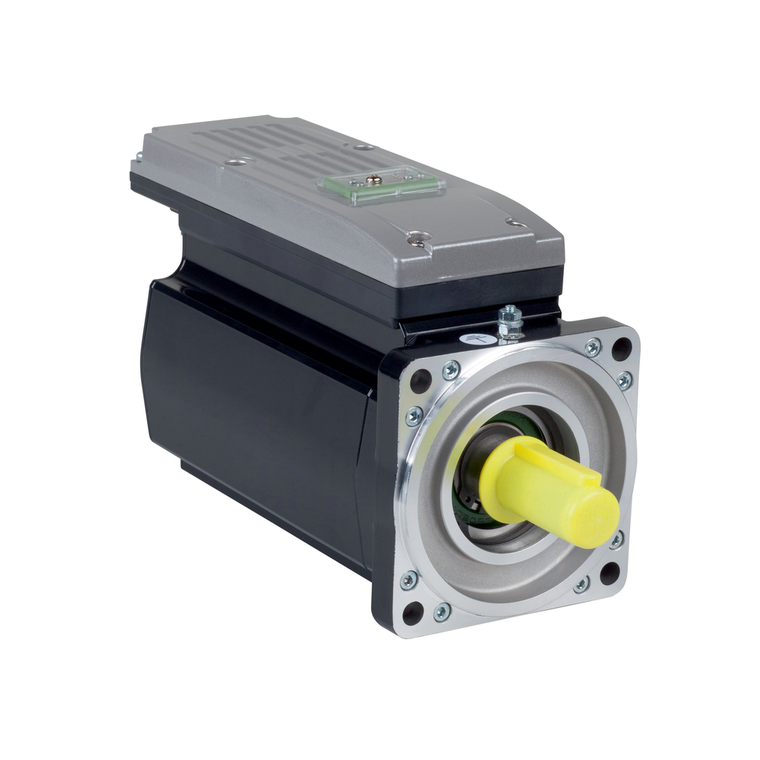

Schneider Electric ILM1001P11A0000 integrated servo motor - 2.5 Nm - 3000 rpm - keyed shaft - without brake

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ILM1001P11A0000 integrated servo motor - 2.5 Nm - 3000 rpm - keyed shaft - without brake

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ILM1001P11A0000

UPC:

MPN:

ILM1001P11A0000

Condition:

New

Key Width:

30 mm

Peak Stall Torque:

9.6 N.m

Range Of Product:

PacDrive 3

Motor Flange Size:

100 mm

Maximum Axial Force Fa:

0.2 x Fr

China Rohs Regulation:

X

Torque Constant:

1.39 N.m/A 120°C

Width:

30 mm

Maximum Radial Force Fr:

900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Circularity Profile:

ENVEOLI1409011EN

Number Of Motor Stacks:

1

Continuous Stall Current:

1.8 A

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Shaft End:

keyed

Pvc Free:

Yes

Net Weight:

4.9 kg

Mounting Holes Diameter:

9 mm

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Feedback Type:

absolute single turn SinCos Hiperface

Number Of Motor Poles:

8

Sustainable Offer Status:

Green Premium product

Mercury Free:

Yes

Environmental Disclosure:

ENVPEP1409011EN

Reach Free Of Svhc:

Yes

Nominal Speed:

3000 rpm

Product Or Component Type:

servo motor integrated drive

Holding Brake:

without

Rohs Exemption Information:

Yes

Type Of Cooling:

natural convection

Line Rated Current:

1.4 A

Speed Feedback Resolution:

128 periods

Stator Inductance:

45.7 mH 20°C Ph/Ph || 22.85 mH 120°C Ph/N

Nominal Torque:

1.9 N.m

Mounting Support:

international standard flange

[Us] Rated Supply Voltage:

250...700 V

Second Shaft:

without second shaft end

Number Of Mounting Holes:

4

Ip Degree Of Protection:

IP54

Centring Collar Diameter:

95 mm

Weight:

4.9 kg

Maximum Current Irms:

7.4 A

Length:

215 mm

Circle Diameter Of The Mounting Holes:

115 mm

Centring Collar Depth:

3.5 mm

Stator Resistance:

9.8 Ohm 20°C Ph/Ph || 6.82 Ohm 120°C Ph/N

Continuous Stall Torque:

2.5 N.m

Warranty:

18 months

Shaft Length:

40 mm

Device Short Name:

ILM
