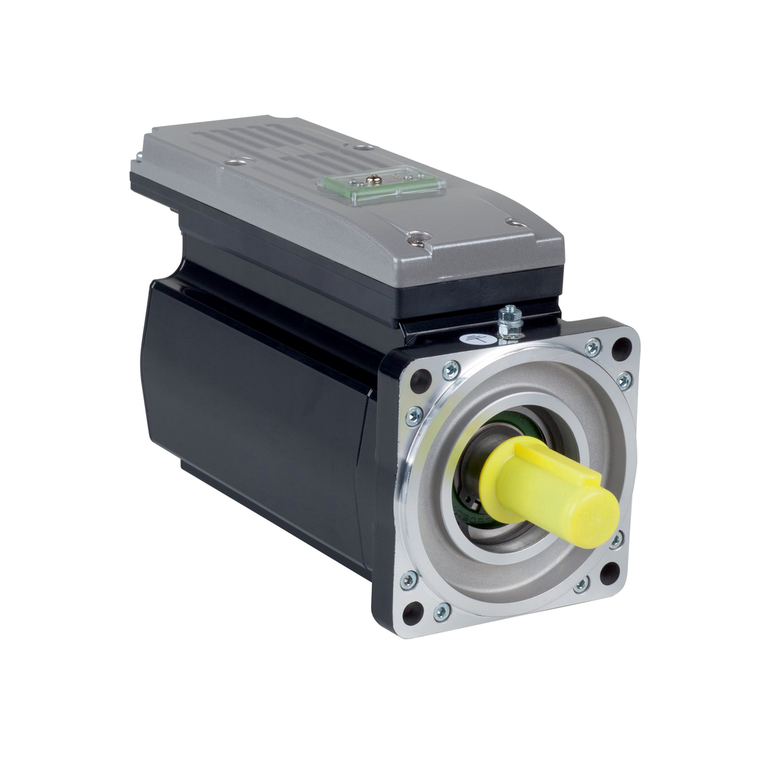

Schneider Electric ILM1001P11F0000 integrated servo motor - 2.5 Nm - 3000 rpm - keyed shaft - with brake
SKU:
ILM1001P11F0000
UPC:
MPN:
ILM1001P11F0000
Condition:
New
Environmental Disclosure:
ENVPEP1409011EN
Mounting Holes Diameter:
9 mm
Back Emf Constant:
90 V/krpm 20°C
Nominal Torque:
1.9 N.m
Weight:
5.7 kg
Circularity Profile:
ENVEOLI1409011EN
Device Short Name:
ILM
Product Or Component Type:
servo motor integrated drive
Maximum Axial Force Fa:
0.2 x Fr
Rohs Exemption Information:
Yes
Centring Collar Diameter:
95 mm
Width:
30 mm
Continuous Stall Torque:
2.5 N.m
Pvc Free:
Yes
Country of Origin:
United States
Reach Free Of Svhc:
Yes
Range Of Product:
PacDrive 3
Number Of Mounting Holes:
4
Sustainable Offer Status:
Green Premium product
Line Rated Current:
1.4 A
Peak Stall Torque:
9.6 N.m
Stator Inductance:
45.7 mH 20°C Ph/Ph || 22.85 mH 120°C Ph/N
China Rohs Regulation:
X
Torque Constant:
1.39 N.m/A 120°C
Nominal Output Power:
600 W
Speed Feedback Resolution:
128 periods
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Type Of Cooling:
natural convection
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Maximum Current Irms:
7.4 A
Mercury Free:
Yes
Number Of Motor Poles:
8
Net Weight:
5.7 kg
Motor Flange Size:
100 mm
[Us] Rated Supply Voltage:
250...700 V
Number Of Motor Stacks:
1
Rotor Inertia:
2.1 kg.cm²
Circle Diameter Of The Mounting Holes:
115 mm
Second Shaft:
without second shaft end
Ip Degree Of Protection:
IP54
Shaft Diameter:
19 mm
Shaft End:
keyed
Holding Brake:
with
Maximum Radial Force Fr:
900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm
This product is part of the PacDrive 3 range, an offer of integrated servo motors for machines from 0.31kW to 1.91kW. The 8-pole integrated servo motor features 1 stack with a maximum mechanical...
