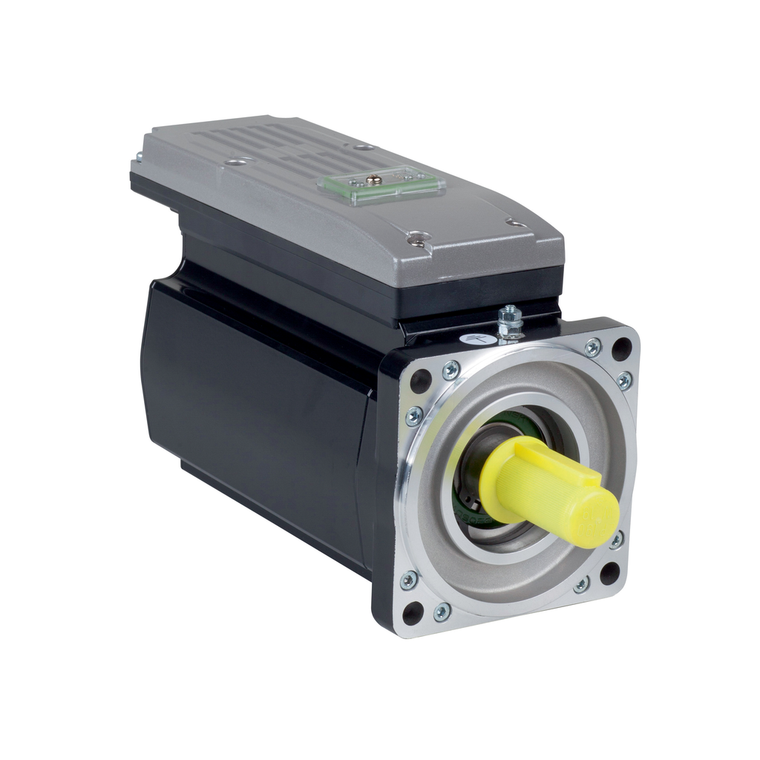

Schneider Electric ILM1001P12A0000 integrated servo motor- 2.5 Nm - 3000 rpm- keyed shaft- multiturn- without brake

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ILM1001P12A0000 integrated servo motor- 2.5 Nm - 3000 rpm- keyed shaft- multiturn- without brake

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ILM1001P12A0000

UPC:

MPN:

ILM1001P12A0000

Condition:

New

Feedback Type:

absolute multiturn SinCos Hiperface

Environmental Disclosure:

ENVPEP1409011EN

Shaft Length:

40 mm

Circle Diameter Of The Mounting Holes:

115 mm

Nominal Torque:

1.9 N.m

Mercury Free:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Rotor Inertia:

1.4 kg.cm²

Shaft End:

keyed

Continuous Stall Torque:

2.5 N.m

Stator Inductance:

45.7 mH 20°C Ph/Ph || 22.85 mH 120°C Ph/N

Product Or Component Type:

servo motor integrated drive

Shaft Diameter:

19 mm

Peak Stall Torque:

9.6 N.m

Stator Resistance:

9.8 Ohm 20°C Ph/Ph || 6.82 Ohm 120°C Ph/N

Torque Constant:

1.39 N.m/A 120°C

Ip Degree Of Protection:

IP54

Mounting Holes Diameter:

9 mm

Key Width:

30 mm

Continuous Stall Current:

1.8 A

Motor Flange Size:

100 mm

Country of Origin:

United States

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Current Irms:

7.4 A

Weight:

4.9 kg

Line Rated Current:

1.4 A

Mounting Support:

international standard flange

Nominal Speed:

3000 rpm

Back Emf Constant:

90 V/krpm 20°C

Maximum Axial Force Fa:

0.2 x Fr

Device Short Name:

ILM

Centring Collar Depth:

3.5 mm

Net Weight:

4.9 kg

Holding Brake:

without

Maximum Radial Force Fr:

900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm

[Us] Rated Supply Voltage:

250...700 V

Number Of Mounting Holes:

4

Sustainable Offer Status:

Green Premium product

Pvc Free:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Range Of Product:

PacDrive 3

Centring Collar Diameter:

95 mm

Circularity Profile:

ENVEOLI1409011EN

Second Shaft:

without second shaft end

Number Of Motor Poles:

8

Nominal Output Power:

600 W

Warranty:

18 months

Rohs Exemption Information:

Yes
