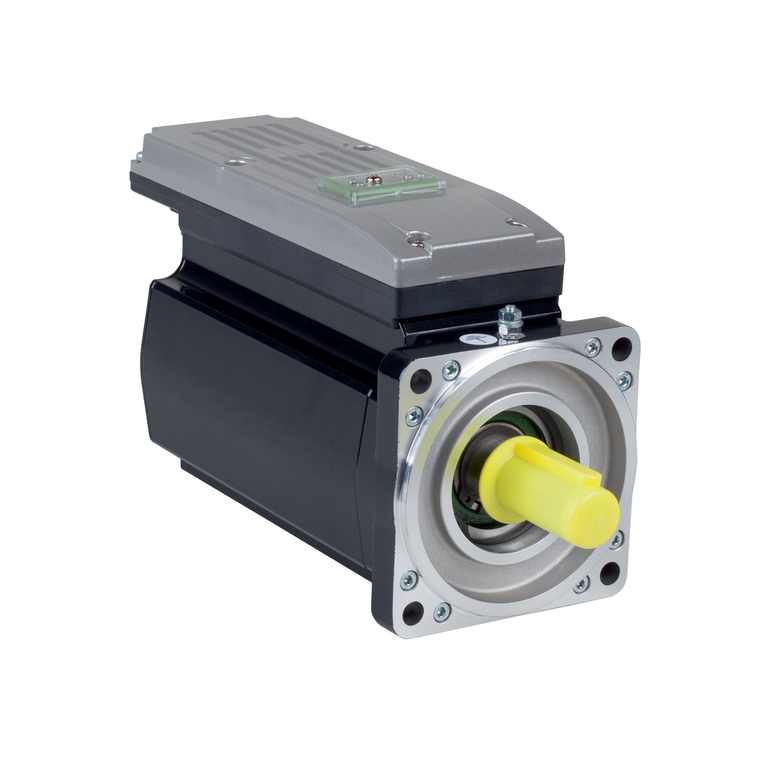

Schneider Electric ILM1001P21A0000 integrated servo motor - 2.5 Nm - 3000 rpm - without brake - IP65
SKU:
ILM1001P21A0000
UPC:
MPN:
ILM1001P21A0000
Condition:
New
Torque Constant:
1.39 N.m/A 120°C
Nominal Torque:
1.9 N.m
Back Emf Constant:
90 V/krpm 20°C
Maximum Axial Force Fa:
0.2 x Fr
Circle Diameter Of The Mounting Holes:
115 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Nominal Output Power:
600 W
Environmental Disclosure:
ENVPEP1409011EN
[Us] Rated Supply Voltage:
250...700 V
Rotor Inertia:
1.4 kg.cm²
Mounting Support:
international standard flange
Speed Feedback Resolution:
128 periods
Feedback Type:
absolute single turn SinCos Hiperface
Net Weight:
4.9 kg
Range Of Product:
PacDrive 3
Stator Resistance:
9.8 Ohm 20°C Ph/Ph || 6.82 Ohm 120°C Ph/N
Type Of Cooling:
natural convection
Nominal Speed:
3000 rpm
Second Shaft:
without second shaft end
Maximum Current Irms:
7.4 A
Length:
215 mm
China Rohs Regulation:
X
Device Short Name:
ILM
Ip Degree Of Protection:
IP65
Peak Stall Torque:
9.6 N.m
Maximum Radial Force Fr:
900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm
Reach Free Of Svhc:
Yes
Key Width:
30 mm
Width:
30 mm
Centring Collar Depth:
3.5 mm
Product Or Component Type:
servo motor integrated drive
Stator Inductance:
45.7 mH 20°C Ph/Ph || 22.85 mH 120°C Ph/N
Circularity Profile:
ENVEOLI1409011EN
Shaft Length:
40 mm
Mounting Holes Diameter:
9 mm
Number Of Motor Stacks:
1
Line Rated Current:
1.4 A
Continuous Stall Current:
1.8 A
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Shaft End:
untapped
Pvc Free:
Yes
Number Of Mounting Holes:
4
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Shaft Diameter:
19 mm
Holding Brake:
without
Reach Regulation:
Free of Substances of Very High Concern above the threshold
This product is part of the PacDrive 3 range, an offer of integrated servo motors for machines from 0.31kW to 1.91kW. The 8-pole integrated servo motor features 1 stack with a maximum mechanical...
