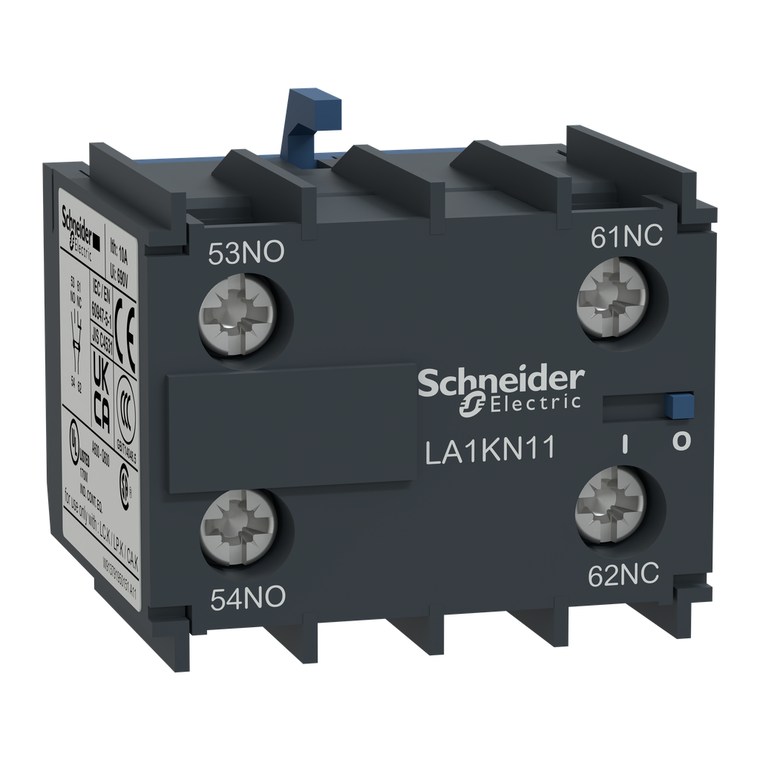

Schneider Electric LA1KN11 Auxiliary contact block, TeSys K, 1NO+1NC, front mounting, screw clamp terminals

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LA1KN11 Auxiliary contact block, TeSys K, 1NO+1NC, front mounting, screw clamp terminals

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LA1KN11

UPC:

MPN:

LA1KN11

Condition:

New

Product Name:

TeSys K

Range:

TeSys

Ambient Air Temperature For Operation:

-25-50°C

Tightening Torque:

1.3 N.m Philips No 2 || 1.3 N.m pozidriv No 2

Range Compatibility:

TeSys K LC1K || TeSys K CA2K || TeSys K CA3K || TeSys K CA4K

Product Or Component Type:

auxiliary contact block

Weight:

0.045 kg

Irms Rated Making Capacity:

110 A at <= 690 V AC conforming to IEC 60947

Environmental Characteristic:

normal environment

Net Weight:

0.045 kg

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Eu Rohs Directive:

Compliant

Depth:

35 mm

Minimum Switching Voltage:

17 V

Standards:

EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.5 || JIS C8201-5-1 || UL 60335-2-40:Annex JJ

Ambient Air Temperature For Storage:

-50-80°C

[Ith] Conventional Free Air Thermal Current:

10 A (at 50°C)

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Associated Fuse Rating:

10 A gG at <= 690 V conforming to IEC 60947

Minimum Switching Current:

5 mA

Operating Altitude:

6561.68 ft (2000 m)

Mounting Location:

front

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Country of Origin:

Indonesia

Non Overlap Distance:

0.5 mm

Reach Free Of Svhc:

Yes

Permissible Short-Time Rating:

80 A 1 s || 60 A 500 ms || 110 A 100 ms

Circularity Profile:

N/A

Product Certifications:

CB Scheme || CCC || UL || CSA || CE || UKCA

Rohs Exemption Information:

Yes

Connections - Terminals:

screw clamp terminals 1 0.34-1.5 mm²flexible with cable end || screw clamp terminals 1 0.75-4 mm²flexible without cable end || screw clamp terminals 1 1.5-4 mm²rigid || screw clamp terminals 2 0.34-1.5 mm²flexible with cable end || screw clam

Mercury Free:

Yes

Insulation Resistance:

> 10 MOhm

Auxiliary Contacts Operation:

instantaneous

Protective Treatment:

TC IEC 60068

Toxic Heavy Metal Free:

Yes

[Ue] Rated Operational Voltage:

690 V AC 25...400 Hz

Warranty:

18 months

Device Short Name:

LA1

Ip Degree Of Protection:

IP20 conforming to IEC 60529

Pole Contact Composition:

1 NO + 1 NC

[Ui] Rated Insulation Voltage:

690 V IEC 60947-5-1 || 600 V UL 60947-5-1 || 600 V CSA C22.2 No 60947-5-1

Sustainable Offer Status:

Green Premium product

Environmental Disclosure:

ENVPEP2106022
