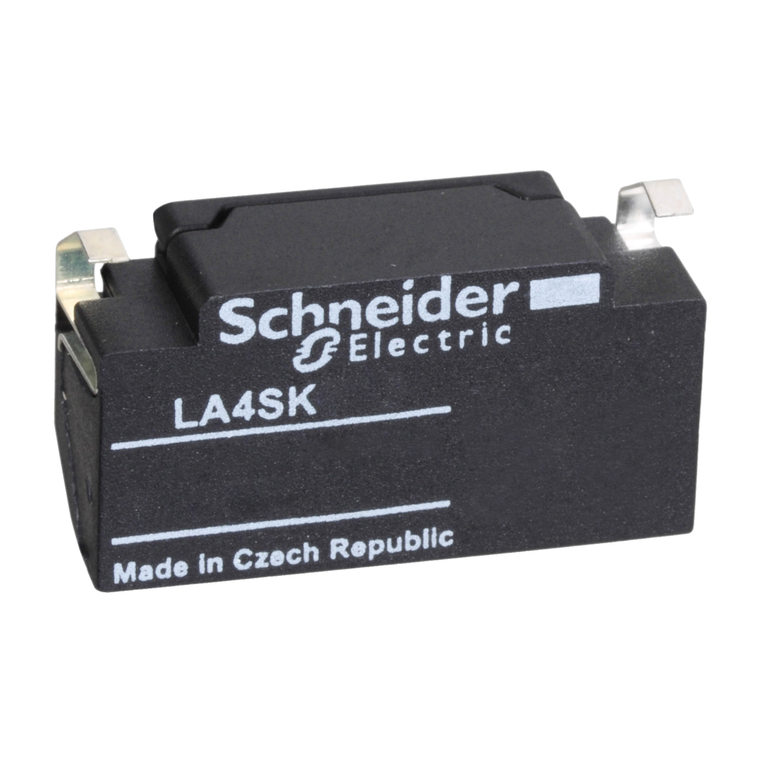

Schneider Electric LA4SKC1U TeSys SK, suppressor module, diodes, 24...250V DC

Schneider Electric LA4SKC1U TeSys SK, suppressor module, diodes, 24...250V DC

Schneider Electric
SKU:
LA4SKC1U
$26.16
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
TeSys SK suppressor module, for coil protection of mini contactors LP1SK and mini control relays CA3SK. To be used with 24-250V DC control circuits, it provides a flywheel diode protection ensuring no transient overvoltage. Clipping onto the right-hand side of contactor (no tools required), polarised component. Sold in lots of 10 units. Green Premium compliant (RoHS/REACh).
Additional Information
Net Weight:
0.003 kg
Range:
TeSys
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Quantity Per Set:
set of 10
Ambient Air Temperature For Storage:
-50-70°C
Mercury Free:
Yes
Mounting Location:
right hand side
Environmental Disclosure:
ENVPEP111253EN
Product Compatibility:
CA2SK || LC1SK06 || CA3SK || LP1SK06 || LC1SKGC
Country of Origin:
Czechia
Weight:
0.003 kg
Eu Rohs Directive:
Compliant with Exemptions
[Uc] Control Circuit Voltage:
24...250 V DC
Maximum Peak Voltage:
1 Uc
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Product Or Component Type:
suppressor module
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Device Short Name:
LA4SK
Ambient Air Temperature For Operation:
-20-50°C
Suppressor Technology:
diodes
Warranty:
18 months
Circularity Profile:
N/A
