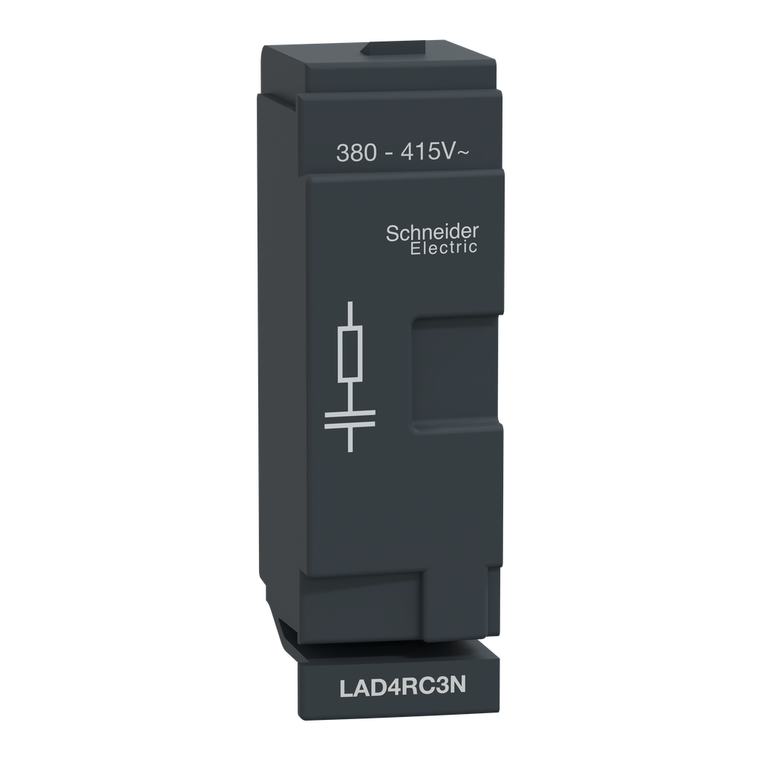

Schneider Electric LAD4RC3N D40A to D65A RC 380-415V Suppressor
Schneider Electric
$31.44
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LAD4RC3N D40A to D65A RC 380-415V Suppressor
TeSys D suppressor module, for LC1D40A-D80A, LC1DT60A-DT80A contactors. To be used with 110-240V AC control circuit voltage, it provides a RC protection limiting the transient voltage to 3 Uc max. Clip-on front mounting, overall size of the contactor is unchanged. Green Premium compliant (RoHS/REACh).
- Product Or Component Type:
- suppressor module
- Country of Origin:
- United States
- [Uc] Control Circuit Voltage:
- 380...415 V AC
- Weight:
- 0.02 kg
- Suppressor Technology:
- RC circuit
- Reach Free Of Svhc:
- Yes
- Eu Rohs Directive:
- Compliant
- Color:
- dark grey
- Rohs Exemption Information:
- Yes
- Mounting Mode:
- by clips
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ip Degree Of Protection:
- IP2XIEC 60529
- Product Compatibility:
- 3P LC1D40A...D80A || 4P LC1DT60A...DT80A
- Sustainable Offer Status:
- Green Premium product
- Warranty:
- 18 months
- Circularity Profile:
- N/A
- Device Short Name:
- LAD4
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Range:
- TeSys || TeSys Deca
- Ambient Air Temperature For Operation:
- -25-55°C
- Mounting Location:
- front
- Product Certifications:
- UL || CSA
- Net Weight:
- 0.02 kg
- Toxic Heavy Metal Free:
- Yes
- Mercury Free:
- Yes
- Environmental Disclosure:
- ENVPEP111253EN
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Standards:
- IEC 60947-5-1 || EN 60947-5-1 || CSA C22.2 No 60947-5-1 || UL 60947-5-1 || GB/T 14048.5
- Maximum Peak Voltage:
- 3 Uc
- Ambient Air Temperature For Storage:
- -40-80°C
