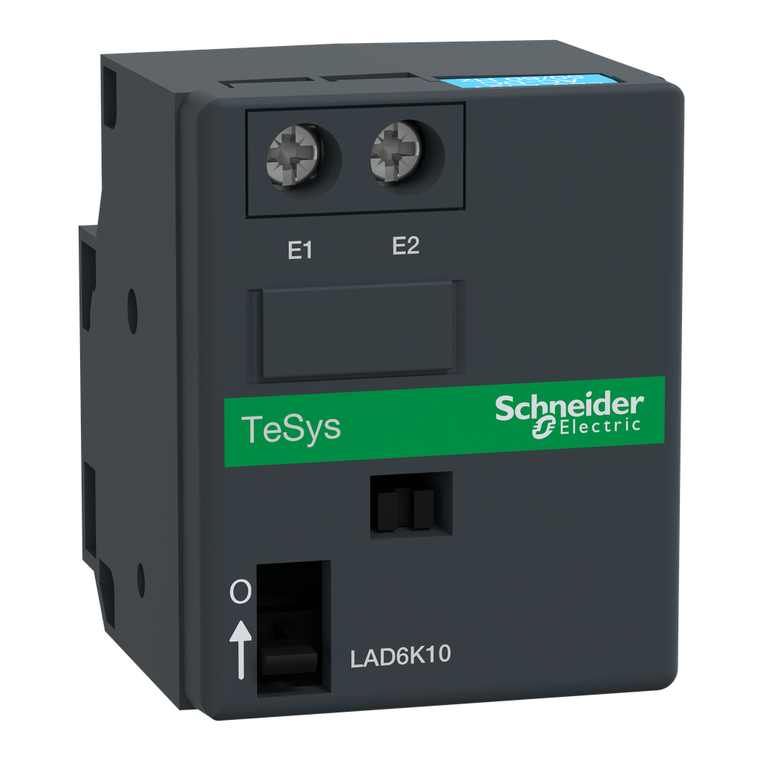

Schneider Electric LAD6K10E CONTACTOR MECH. LATCH CONTACT BLOCK IEC
TeSys Deca mechanical latch block, for LC1D09-D80A, LC1DT20-DT80A contactors and CAD control relays (except devices with low consumption coils). Electrical latching and unlatching is performed applying a 42-48V control voltage pulse (> 100ms in AC, 250ms in DC). Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. For applications with high operating rates until 1200 cycles/hour. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
- Sustainable Packaging:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ui] Rated Insulation Voltage:
- 690 V IEC 60947-5-1
- Environmental Disclosure:
- ENVPEP2011001
- Protective Treatment:
- THIEC 60068
- Product Certifications:
- UL || CSA
- Ambient Air Temperature For Storage:
- -40-80°C
- Circularity Profile:
- ENVEOLI2011001
- Product Compatibility:
- LC1D09...D38 AC/DC || LC1DT20...DT40 AC/DC || LC1D40A...D80A 3 phase AC/DC || LC1DT60A 3 phases + neutral AC/DC || LC1DT80A 3 phases + neutral AC/DC
- Weight:
- 0.07 kg
- Toxic Heavy Metal Free:
- Yes
- Product Or Component Type:
- mechanical latch block
- Power Required In W:
- 30 W DC
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Country of Origin:
- France
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Range:
- TeSys
- [Uc] Control Circuit Voltage:
- 42/48 V AC 50/60 Hz || 42/48 V DC
- On-Load Factor:
- 0.1
- Sustainable Offer Status:
- Green Premium product
- Ip Degree Of Protection:
- IP2XVDE 0106
- Eu Rohs Directive:
- Compliant with Exemptions
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Operation:
- -25-55°C
- Mercury Free:
- Yes
- Maximum Operating Rate:
- 1200 cyc/h
- Tripping Control:
- manual || electrical
- Net Weight:
- 0.07 kg
- Power Required In Va:
- 25 AC
- Mounting Location:
- front side
- Mechanical Durability:
- 500000 cycles
