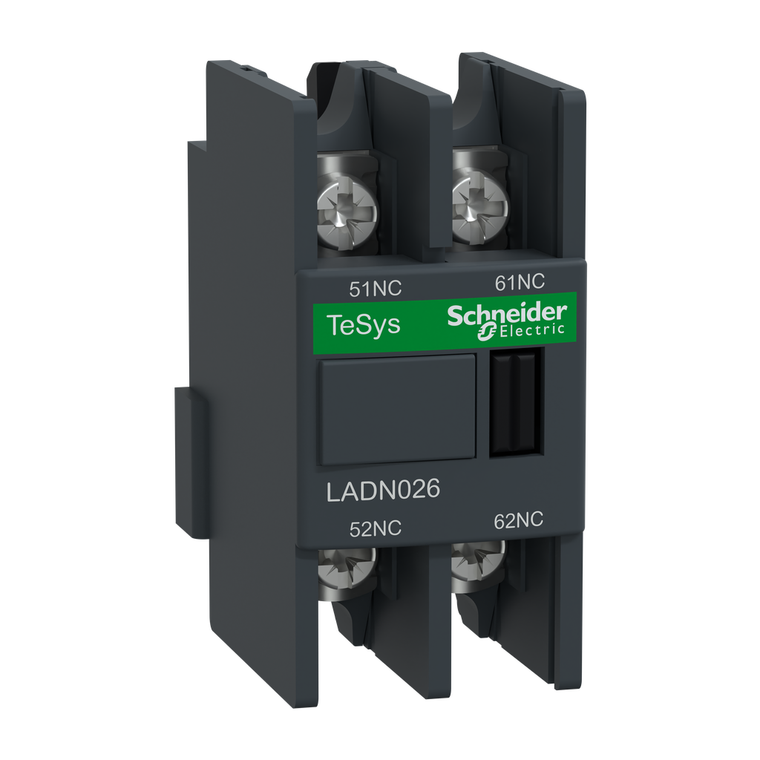

Schneider Electric LADN026 Auxiliary contact block, TeSys Deca, 2NC, front mounting, lugs-ring terminals

Schneider Electric LADN026 Auxiliary contact block, TeSys Deca, 2NC, front mounting, lugs-ring terminals

Schneider Electric
SKU:
LADN026
$24.84
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
TeSys Deca instantaneous auxiliary contact block, for contactors LC1D, LC1F. It provides 2NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by ring lugs screw terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).
Additional Information
[Ue] Rated Operational Voltage:
690 V AC 25...400 Hz
Auxiliary Contacts Operation:
instantaneous
Depth:
42 mm
Protection Type:
gG fuse 10 A
Toxic Heavy Metal Free:
Yes
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mechanical Durability:
30 Mcycles
[Ith] Conventional Free Air Thermal Current:
10 A (at 60°C)
Environmental Characteristic:
normal environment
Pole Contact Composition:
2 NC
Range:
TeSys || TeSys Deca
Country of Origin:
France
Eu Rohs Directive:
Compliant
[Ui] Rated Insulation Voltage:
690 V IEC 60947-5-1 || 600 V UL 60947-5-1 || 600 V CSA C22.2 No 60947-5-1
Mounting Location:
front
Irms Rated Making Capacity:
140 A AC conforming to IEC 60947-5-1 || 250 A DC conforming to IEC 60947-5-1
Sustainable Offer Status:
Green Premium product
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Non-Overlap Time:
1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact
Reach Free Of Svhc:
Yes
Range Compatibility:
TeSys F LC1F || TeSys F CR1F || TeSys Deca CAD || TeSys Deca LC1D
Warranty:
18 months
Product Name:
TeSys Deca
Minimum Switching Current:
5 mA
[Ie] Rated Operational Current:
6 A at 120 V AC-15 || 1.04 A at 690 V AC-15 || 0.55 A at 125 V DC-13 || 0.1 A at 600 V DC-13
Rohs Exemption Information:
Yes
Insulation Resistance:
> 10 MOhm
Product Or Component Type:
auxiliary contact block
Connections - Terminals:
lugs-ring terminals 8 mm)
Tightening Torque:
1.7 N.m flat Ø 6 mm M3.5 || 1.7 N.m Philips No 2 M3.5 || 1.7 N.m pozidriv No 2 M3.5
Ambient Air Temperature For Operation:
-5-60°C
Ip Degree Of Protection:
IP20 conforming to IEC 60529
Protective Treatment:
TH IEC 60068
Permissible Short-Time Rating:
100 A 60°C 1 s || 120 A 60°C 500 ms || 140 A 60°C 100 ms
Circularity Profile:
N/A
Device Short Name:
LADN
Sustainable Packaging:
Yes
Operating Altitude:
9842.52 ft (3000 m)
Color:
dark grey
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Mercury Free:
Yes
Standards:
EN/IEC 60947-5-1 || GB/T 14048.5 || EN 50012 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || IEC 60335-1:Clause 30.2 || IEC 60335-2-40:Annex JJ || UL 60335-2-40:Annex JJ
Ambient Air Temperature For Storage:
-60-80°C
Product Certifications:
CB Scheme || UL || CSA || CCC || EAC || UKCA
Environmental Disclosure:
ENVPEP110807EN_V3
Minimum Switching Voltage:
17 V
