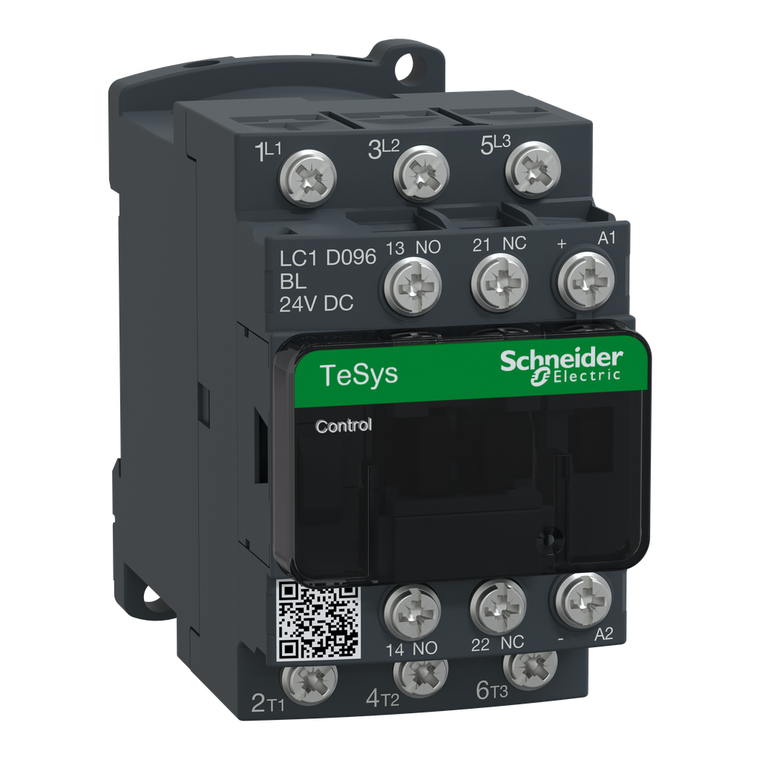

Schneider Electric LC1D096BL IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D096BL IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D096BL

UPC:

MPN:

LC1D096BL

Condition:

New

Contactor Application:

resistive load || motor control

Pvc Free:

Yes

Coil Technology:

built-in bidirectional peak limiting diode suppressor

Circularity Profile:

ENVEOLI1102030EN

Warranty:

18 months

Control Circuit Type:

DC low consumption

Maximum Operating Rate:

3600 cyc/h 60°C

Toxic Heavy Metal Free:

Yes

[Uc] Control Circuit Voltage:

24 V DC

Associated Fuse Rating:

10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 25 A gG at <= 690 V coordination type 1 for power circuit || 20 A gG at <= 690 V coordination type 2 for power circuit

Country of Origin:

Indonesia

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC

Pole Contact Composition:

3 NO

Tightening Torque:

control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5 || control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || power circuit 1.7 N.m lugs-ring terminals flat Ø 8 mm M3.5 || power circuit 1.7 N.m lugs-ring terminals Philips No 2 M3

Compatibility Code:

LC1D

Inrush Power In W:

2.4-2.4 W 20°C)

Utilisation Category:

AC-1 || AC-3 || AC-4 || AC-3e

Time Constant:

40 ms

Mounting Support:

rail || plate

Ip Degree Of Protection:

IP20 front face IEC 60529

Environmental Disclosure:

ENVPEP110230EN

Non-Overlap Time:

1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Height:

77 mm

Flame Retardance:

V1 conforming to UL 94

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Insulation Resistance:

> 10 MOhm for Signaling circuit

Range Of Product:

TeSys Deca

Minimum Switching Voltage:

17 V for Signaling circuit

Control Circuit Voltage Limits:

0.1...0.3 Uc -40-70°C drop-out DC || 0.8...1.25 Uc -40-60°C operational DC || 1...1.25 Uc 60-70°C operational DC

Mechanical Durability:

30 Mcycles

Product Certifications:

GL || BV || DNV || LROS (Lloyds register of shipping) || RINA || UL || CCC || CSA || GOST || UKCA || CB

Eu Rohs Directive:

Compliant with Exemptions

Sustainable Offer Status:

Green Premium product

Auxiliary Contacts Type:

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

[Icw] Rated Short-Time Withstand Current:

105 A 40°C - 10 s for power circuit || 210 A 40°C - 1 s for power circuit || 30 A 40°C - 10 min for power circuit || 61 A 40°C - 1 min for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms fo

Electrical Durability:

0.6 Mcycles 25 A AC-1 <= 440 V || 2 Mcycles 9 A AC-3 <= 440 V || 2 Mcycles 9 A AC-3e <= 440 V

Protective Cover:

with

Minimum Switching Current:

5 mA for Signaling circuit

[Ui] Rated Insulation Voltage:

power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL

Mechanical Robustness:

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)

Protective Treatment:

THIEC 60068-2-30

Depth:

95 mm

Hold-In Power Consumption In W:

2.4-2.4 W 20°C

Rated Breaking Capacity:

250 A at 440 V for power circuit conforming to IEC 60947

Signaling Circuit Frequency:

25...400 Hz

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Pollution Degree:

3

Poles Description:

3P

Net Weight:

0.48 kg
