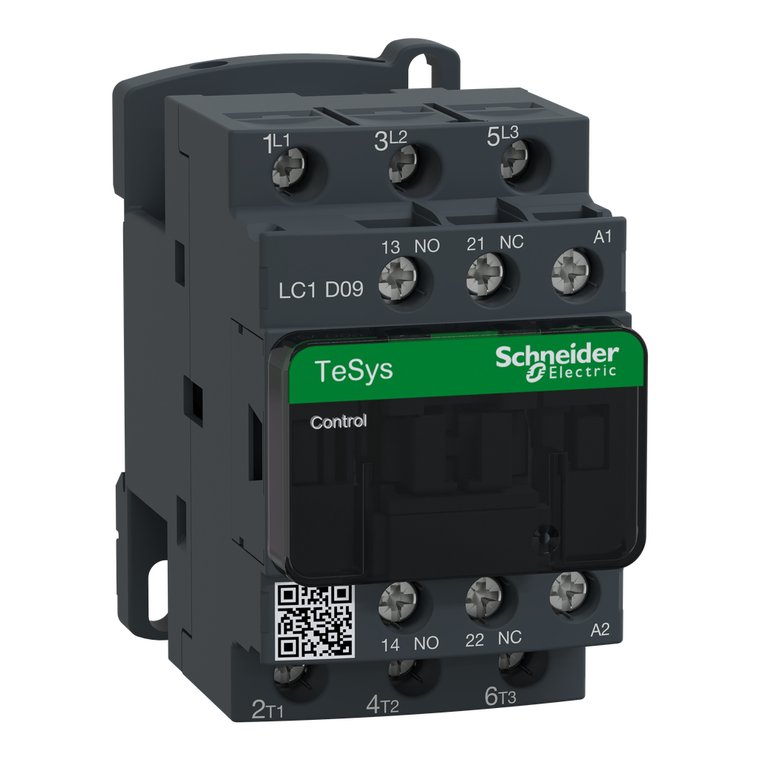

Schneider Electric LC1D09B7 IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VAC 50/60Hz coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D09B7 IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VAC 50/60Hz coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D09B7

UPC:

MPN:

LC1D09B7

Condition:

New

Non-Overlap Time:

1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Poles Description:

3P

Net Weight:

0.32 kg

Contactor Application:

resistive load || motor control

Operating Time:

12...22 ms closing || 4...19 ms opening

Permissible Ambient Air Temperature Around The Device:

-40-60°C || 60-70°C with derating

[Uc] Control Circuit Voltage:

24 V AC 50/60 Hz

Heat Dissipation:

2-3 W at 50/60 Hz

Ip Degree Of Protection:

IP20 front face IEC 60529

Inrush Power In Va:

70-70 VA 60 Hz cos phi 0.75 (at 20°C) || 70-70 VA 50 Hz cos phi 0.75 (at 20°C)

Product Or Component Type:

contactor

Device Short Name:

LC1D

Maximum Operating Rate:

3600 cyc/h 60°C

[Ui] Rated Insulation Voltage:

power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC

Standards:

CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1

Electrical Durability:

0.6 Mcycles 25 A AC-1 <= 440 V || 2 Mcycles 9 A AC-3 <= 440 V || 2 Mcycles 9 A AC-3e <= 440 V

Power Dissipation Per Pole:

1.56 W AC-1 || 0.2 W AC-3 || 0.2 W AC-3e

Mechanical Durability:

15 Mcycles

Auxiliary Contacts Type:

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Country of Origin:

France

[Ith] Conventional Free Air Thermal Current:

25 A (at 60°C) for power circuit || 10 A (at 60°C) for Signaling circuit

Protective Cover:

with

Compatibility Code:

LC1D

Environmental Disclosure:

ENVPEP1501004

Associated Fuse Rating:

10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 25 A gG at <= 690 V coordination type 1 for power circuit || 20 A gG at <= 690 V coordination type 2 for power circuit

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

Pvc Free:

Yes

Warranty:

18 months

Control Circuit Type:

AC 50/60 Hz standard

Fire Resistance:

850°C IEC 60695-2-1

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Pole Contact Composition:

3 NO

Utilisation Category:

AC-4 || AC-1 || AC-3 || AC-3e

Flame Retardance:

V1 conforming to UL 94

Control Circuit Voltage Limits:

0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz

Insulation Resistance:

> 10 MOhm for Signaling circuit

Hold-In Power Consumption In Va:

7.5-7.5 VA 60 Hz cos phi 0.3 (at 20°C) || 7-7 VA 50 Hz cos phi 0.3 (at 20°C)

Minimum Switching Voltage:

17 V for Signaling circuit

Sustainable Offer Status:

Green Premium product

Maximum Horse Power Rating:

1 hp at 230/240 V AC 50/60 Hz for 1 phase motors || 2 hp at 200/208 V AC 50/60 Hz for 3 phase motors || 2 hp at 230/240 V AC 50/60 Hz for 3 phase motors || 5 hp at 460/480 V AC 50/60 Hz for 3 phase motors || 7.5 hp at 575/600 V AC 50/60 Hz for 3 phas

Mechanical Robustness:

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)

Weight:

0.32 kg

Eu Rohs Directive:

Compliant

Product Certifications:

GL || CSA || GOST || RINA || LROS (Lloyds register of shipping) || UL || DNV || BV || CCC || CB

Overvoltage Category:

III
