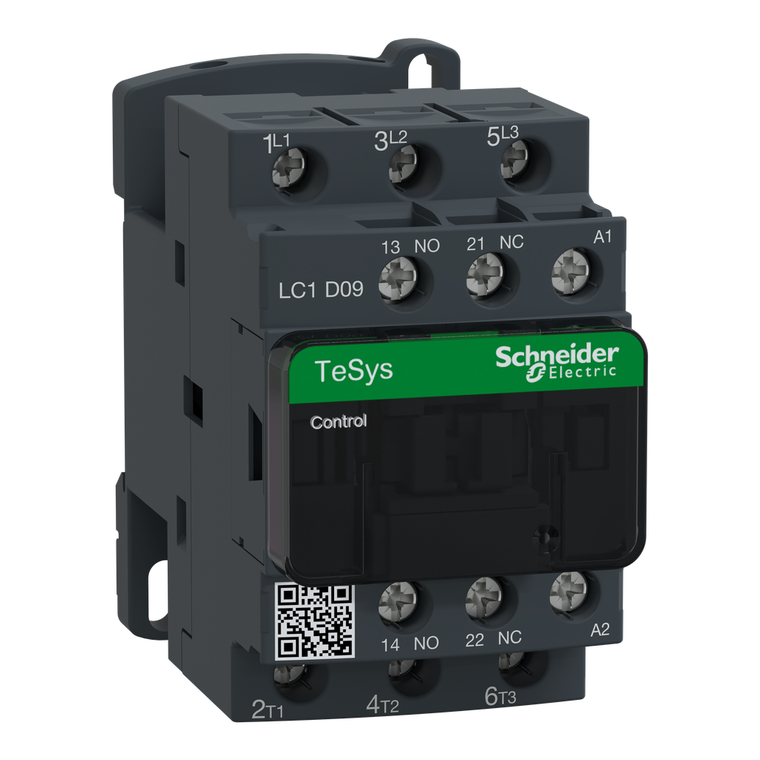

Schneider Electric LC1D09K7 IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 100VAC 50/60Hz coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D09K7 IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 100VAC 50/60Hz coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D09K7

UPC:

MPN:

LC1D09K7

Condition:

New

Height:

77 mm

Auxiliary Contact Composition:

1 NO + 1 NC

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC

[Icw] Rated Short-Time Withstand Current:

105 A 40°C - 10 s for power circuit || 210 A 40°C - 1 s for power circuit || 30 A 40°C - 10 min for power circuit || 61 A 40°C - 1 min for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms fo

Heat Dissipation:

2-3 W at 50/60 Hz

Minimum Switching Voltage:

17 V for Signaling circuit

Net Weight:

0.32 kg

Associated Fuse Rating:

10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 25 A gG at <= 690 V coordination type 1 for power circuit || 20 A gG at <= 690 V coordination type 2 for power circuit

Ip Degree Of Protection:

IP20 front face IEC 60529

Warranty:

18 months

Pollution Degree:

3

Mercury Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Range Of Product:

TeSys Deca

Average Impedance:

2.5 mOhm - Ith 25 A 50 Hz for power circuit

Standards:

CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1

[Uc] Control Circuit Voltage:

100 V AC 50/60 Hz

Mounting Support:

rail || plate

Country of Origin:

Indonesia

Permissible Ambient Air Temperature Around The Device:

-40-60°C || 60-70°C with derating

Toxic Heavy Metal Free:

Yes

Depth:

86 mm

Control Circuit Voltage Limits:

0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz

Product Or Component Type:

contactor

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

Environmental Disclosure:

ENVPEP1501004

Motor Power Kw:

2.2 kW at 220...230 V AC 50/60 Hz (AC-3) || 4 kW at 380...400 V AC 50/60 Hz (AC-3) || 4 kW at 415...440 V AC 50/60 Hz (AC-3) || 5.5 kW at 500 V AC 50/60 Hz (AC-3) || 5.5 kW at 660...690 V AC 50/60 Hz (AC-3) || 2.2 kW at 400 V AC 50/60 Hz (AC-4) || 2.

Connections - Terminals:

power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminals 1 1-4 mm² - cable

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Electrical Durability:

0.6 Mcycles 25 A AC-1 <= 440 V || 2 Mcycles 9 A AC-3 <= 440 V || 2 Mcycles 9 A AC-3e <= 440 V

Insulation Resistance:

> 10 MOhm for Signaling circuit

Protective Cover:

with

Compatibility Code:

LC1D

Protective Treatment:

THIEC 60068-2-30

Rated Breaking Capacity:

250 A at 440 V for power circuit conforming to IEC 60947

Coil Technology:

without built-in suppressor module

Fire Resistance:

850°C IEC 60695-2-1

Signaling Circuit Frequency:

25...400 Hz

Climatic Withstand:

IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat

Flame Retardance:

V1 conforming to UL 94

Weight:

0.32 kg

Product Certifications:

GL || BV || DNV || LROS (Lloyds register of shipping) || RINA || UL || CCC || CSA || GOST || UKCA || CB

Power Dissipation Per Pole:

1.56 W AC-1 || 0.2 W AC-3 || 0.2 W AC-3e

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Auxiliary Contacts Type:

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Sustainable Offer Status:

Green Premium product

[Ui] Rated Insulation Voltage:

power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL

Operating Time:

12...22 ms closing || 4...19 ms opening

Mechanical Robustness:

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)
