Schneider Electric LC1D128BD IEC contactor, TeSys Deca, nonreversing, 25A resistive, 4 pole, 2 NO and 2 NC, 24VDC coil, open style

Schneider Electric LC1D128BD IEC contactor, TeSys Deca, nonreversing, 25A resistive, 4 pole, 2 NO and 2 NC, 24VDC coil, open style

Schneider Electric
SKU:
LC1D128BD
$172.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

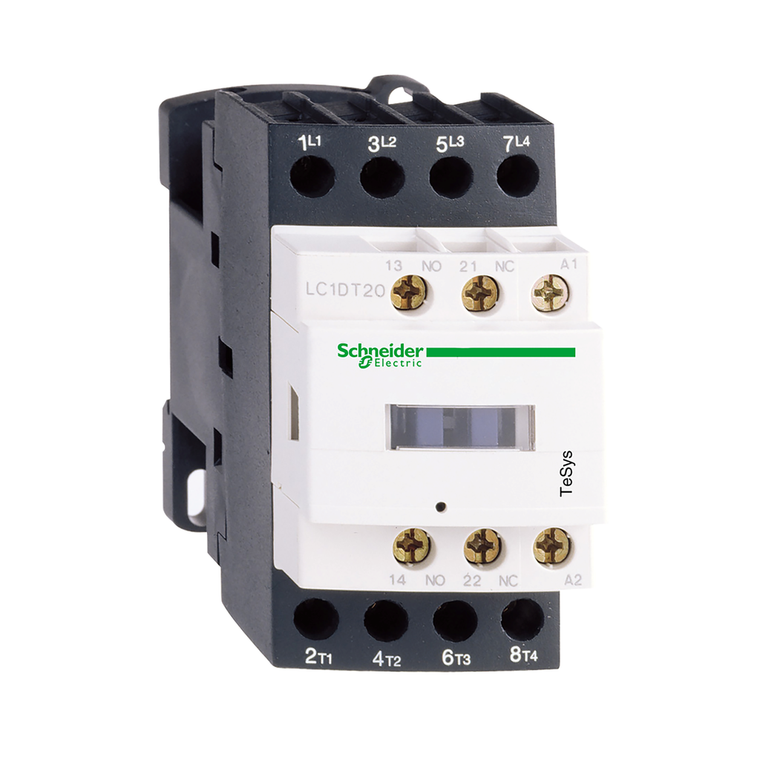

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has two normally open and two normally closed power contacts. Power contacts have a 25A resistive load rating. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.90 inches deep. It weighs 1.16 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
Additional Information
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Environmental Disclosure:
ENVPEP110230EN
Electrical Durability:
0.8 Mcycles 25 A AC-1 <= 440 V
[Uc] Control Circuit Voltage:
24 V DC
Pole Contact Composition:
2 NO + 2 NC
Product Certifications:
GL || BV || DNV || LROS (Lloyds register of shipping) || RINA || UL || CCC || CSA || GOST || UKCA || CB
Power Dissipation Per Pole:
1.56 W AC-1
Poles Description:
4P
Rated Breaking Capacity:
250 A at 440 V for power circuit conforming to IEC 60947
Coil Technology:
with integral suppression device
Signaling Circuit Frequency:
25...400 Hz
Non-Overlap Time:
1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
Overvoltage Category:
III
Minimum Switching Current:
5 mA for Signaling circuit
Time Constant:
28 ms
[Ith] Conventional Free Air Thermal Current:
25 A (at 60°C) for power circuit || 10 A (at 60°C) for Signaling circuit
Minimum Switching Voltage:
17 V for Signaling circuit
Fire Resistance:
850°C IEC 60695-2-1
Ip Degree Of Protection:
IP20 front face IEC 60529
Protective Treatment:
THIEC 60068-2-30
Auxiliary Contact Composition:
1 NO + 1 NC
Hold-In Power Consumption In W:
5.4-5.4 W 20°C
Standards:
CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
Compatibility Code:
LC1D
Operating Time:
63±15 % ms closing || 20±20 % ms opening
Mercury Free:
Yes
Eu Rohs Directive:
Compliant with Exemptions
Maximum Operating Rate:
3600 cyc/h 60°C
Net Weight:
0.525 kg
Control Circuit Type:
DC standard
Rohs Exemption Information:
Yes
Warranty:
18 months
Utilisation Category:
AC-1 || AC-3 || AC-3e || AC-4
Insulation Resistance:
> 10 MOhm for Signaling circuit
Tightening Torque:
power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || contro
Mounting Support:
plate || rail
Contactor Application:
resistive load
Irms Rated Making Capacity:
250 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1
[Ue] Rated Operational Voltage:
power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
Device Short Name:
LC1D
Control Circuit Voltage Limits:
0.1...0.25 Uc -40-70°C drop-out DC || 0.7...1.25 Uc -40-60°C operational DC || 1...1.25 Uc 60-70°C operational DC
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947
Flame Retardance:
V1 conforming to UL 94
Range Of Product:
TeSys Deca
[Icw] Rated Short-Time Withstand Current:
105 A 40°C - 10 s for power circuit || 210 A 40°C - 1 s for power circuit || 30 A 40°C - 10 min for power circuit || 61 A 40°C - 1 min for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms fo
Weight:
0.525 kg
Protective Cover:
with
