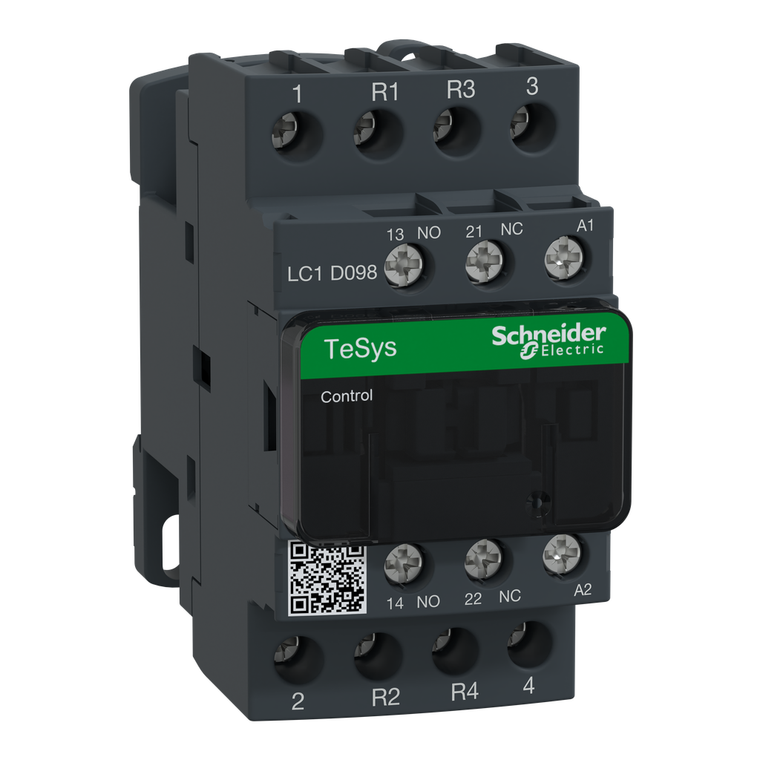

Schneider Electric LC1D128P7 IEC contactor, TeSys Deca, nonreversing, 25A resistive, 4 pole, 2 NO and 2 NC, 230VAC 50/60Hz coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D128P7 IEC contactor, TeSys Deca, nonreversing, 25A resistive, 4 pole, 2 NO and 2 NC, 230VAC 50/60Hz coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D128P7

UPC:

MPN:

LC1D128P7

Condition:

New

Control Circuit Type:

AC 50/60 Hz

Contactor Application:

resistive load

Net Weight:

0.365 kg

Auxiliary Contact Composition:

1 NO + 1 NC

Pole Contact Composition:

2 NO + 2 NC

Overvoltage Category:

III

Protective Cover:

with

Pollution Degree:

3

Height:

85 mm

Irms Rated Making Capacity:

250 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1

Warranty:

18 months

Environmental Disclosure:

ENVPEP1501004

Minimum Switching Voltage:

17 V for Signaling circuit

Compatibility Code:

LC1D

Permissible Ambient Air Temperature Around The Device:

-40-60°C || 60-70°C with derating

Range Of Product:

TeSys Deca

[Uc] Control Circuit Voltage:

230 V AC 50/60 Hz

Fire Resistance:

850°C IEC 60695-2-1

Pvc Free:

Yes

Maximum Operating Rate:

3600 cyc/h 60°C

Average Impedance:

2.5 mOhm - Ith 25 A 50 Hz for power circuit

[Icw] Rated Short-Time Withstand Current:

105 A 40°C - 10 s for power circuit || 210 A 40°C - 1 s for power circuit || 30 A 40°C - 10 min for power circuit || 61 A 40°C - 1 min for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms fo

Circularity Profile:

ENVEOLI1501004

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Ith] Conventional Free Air Thermal Current:

25 A (at 60°C) for power circuit || 10 A (at 60°C) for Signaling circuit

Climatic Withstand:

IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

Eu Rohs Directive:

Compliant

Non-Overlap Time:

1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Standards:

CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1

Control Circuit Voltage Limits:

0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz

Protective Treatment:

THIEC 60068-2-30

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Electrical Durability:

0.8 Mcycles 25 A AC-1 <= 440 V

Tightening Torque:

power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || contro

Operating Altitude:

0...9842.52 ft (0...3000 m)

Poles Description:

4P

Country of Origin:

France

Product Or Component Type:

contactor

Minimum Switching Current:

5 mA for Signaling circuit

Operating Time:

12...22 ms closing || 4...19 ms opening

[Ie] Rated Operational Current:

25 A (at <60°C) at <= 440 V AC AC-1 for power circuit

Sustainable Offer Status:

Green Premium product

Inrush Power In Va:

70-70 VA 60 Hz cos phi 0.75 (at 20°C) || 70-70 VA 50 Hz cos phi 0.75 (at 20°C)

Depth:

92 mm

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
