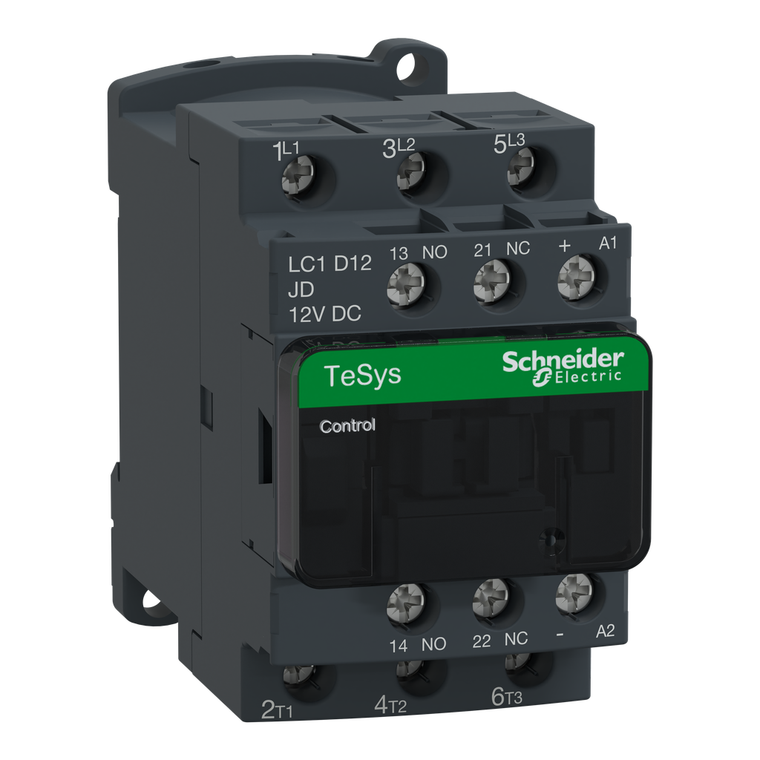

Schneider Electric LC1D12JD IEC contactor, TeSys Deca, nonreversing, 12A, 7.5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 12VDC coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D12JD IEC contactor, TeSys Deca, nonreversing, 12A, 7.5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 12VDC coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D12JD

UPC:

MPN:

LC1D12JD

Condition:

New

Eu Rohs Directive:

Compliant with Exemptions

Depth:

95 mm

Product Or Component Type:

contactor

[Ith] Conventional Free Air Thermal Current:

25 A (at 60°C) for power circuit || 10 A (at 60°C) for Signaling circuit

Rohs Exemption Information:

Yes

Signaling Circuit Frequency:

25...400 Hz

Product Certifications:

GL || BV || DNV || LROS (Lloyds register of shipping) || RINA || UL || CCC || CSA || GOST || UKCA || CB

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

Control Circuit Voltage Limits:

0.1...0.25 Uc -40-70°C drop-out DC || 0.7...1.25 Uc -40-60°C operational DC || 1...1.25 Uc 60-70°C operational DC

Warranty:

18 months

Device Short Name:

LC1D

Range Of Product:

TeSys Deca

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Overvoltage Category:

III

Fire Resistance:

850°C IEC 60695-2-1

Flame Retardance:

V1 conforming to UL 94

Insulation Resistance:

> 10 MOhm for Signaling circuit

Average Impedance:

2.5 mOhm - Ith 25 A 50 Hz for power circuit

Permissible Ambient Air Temperature Around The Device:

-40-60°C || 60-70°C with derating

Compatibility Code:

LC1D

Pole Contact Composition:

3 NO

Weight:

0.485 kg

[Ie] Rated Operational Current:

25 A (at <60°C) at <= 440 V AC AC-1 for power circuit || 12 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 12 A (at <60°C) at <= 440 V AC AC-3e for power circuit

Width:

45 mm

Irms Rated Making Capacity:

250 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1

Poles Description:

3P

[Uc] Control Circuit Voltage:

12 V DC

Pvc Free:

Yes

Minimum Switching Voltage:

17 V for Signaling circuit

Minimum Switching Current:

5 mA for Signaling circuit

Power Dissipation Per Pole:

0.36 W AC-3 || 1.56 W AC-1 || 0.36 W AC-3e

Mercury Free:

Yes

Net Weight:

0.485 kg

Contactor Application:

motor control || resistive load

Pollution Degree:

3

Coil Technology:

with integral suppression device

Mechanical Robustness:

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)

Inrush Power In W:

5.4-5.4 W 20°C)

Height:

77 mm

Control Circuit Type:

DC standard

Auxiliary Contact Composition:

1 NO + 1 NC

Associated Fuse Rating:

10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 40 A gG at <= 690 V coordination type 1 for power circuit || 25 A gG at <= 690 V coordination type 2 for power circuit

Operating Time:

63±15 % ms closing || 20±20 % ms opening

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC

Utilisation Category:

AC-1 || AC-4 || AC-3 || AC-3e

Mechanical Durability:

30 Mcycles

Motor Power Kw:

3 kW at 220...230 V AC 50/60 Hz (AC-3) || 5.5 kW at 380...400 V AC 50/60 Hz (AC-3) || 5.5 kW at 415...440 V AC 50/60 Hz (AC-3) || 7.5 kW at 500 V AC 50/60 Hz (AC-3) || 7.5 kW at 660...690 V AC 50/60 Hz (AC-3) || 3.7 kW at 400 V AC 50/60 Hz (AC-4) ||

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Standards:

CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
