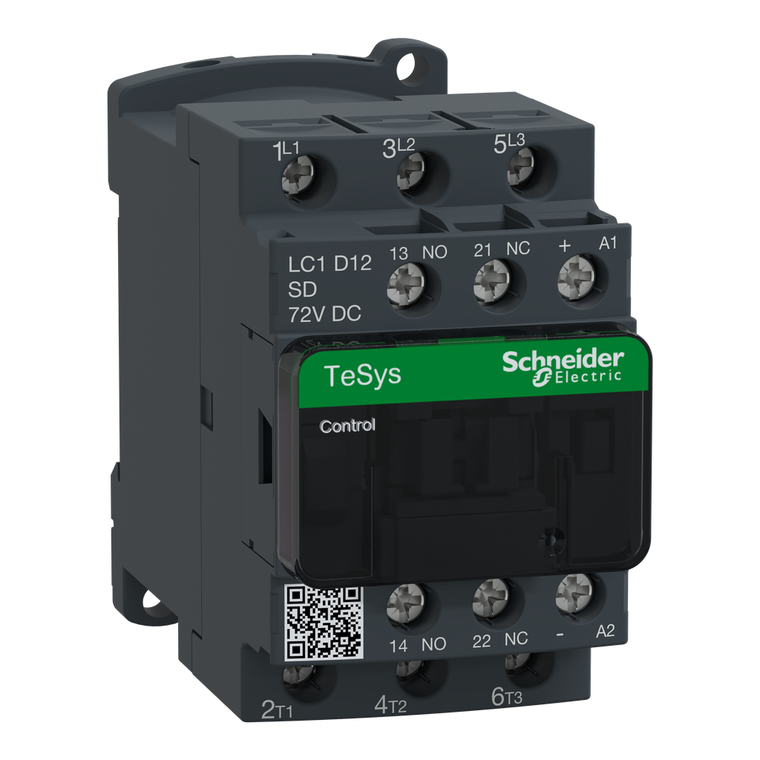

Schneider Electric LC1D12SD IEC contactor, TeSys Deca, nonreversing, 12A, 7.5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 72VDC coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D12SD IEC contactor, TeSys Deca, nonreversing, 12A, 7.5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 72VDC coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D12SD

UPC:

MPN:

LC1D12SD

Condition:

New

Environmental Disclosure:

ENVPEP110230EN

Auxiliary Contact Composition:

1 NO + 1 NC

[Ie] Rated Operational Current:

25 A (at <60°C) at <= 440 V AC AC-1 for power circuit || 12 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 12 A (at <60°C) at <= 440 V AC AC-3e for power circuit

[Icw] Rated Short-Time Withstand Current:

105 A 40°C - 10 s for power circuit || 210 A 40°C - 1 s for power circuit || 30 A 40°C - 10 min for power circuit || 61 A 40°C - 1 min for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms fo

Protective Cover:

with

Mechanical Robustness:

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)

Standards:

CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1

[Uc] Control Circuit Voltage:

72 V DC

Tightening Torque:

power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || contro

Minimum Switching Current:

5 mA for Signaling circuit

Protective Treatment:

THIEC 60068-2-30

Circularity Profile:

ENVEOLI1102030EN

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

Pole Contact Composition:

3 NO

Inrush Power In W:

5.4-5.4 W 20°C)

Overvoltage Category:

III

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Poles Description:

3P

Product Certifications:

GL || BV || DNV || LROS (Lloyds register of shipping) || RINA || UL || CCC || CSA || GOST || UKCA || CB

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Coil Technology:

with integral suppression device

Hold-In Power Consumption In W:

5.4-5.4 W 20°C

Mechanical Durability:

30 Mcycles

Rohs Exemption Information:

Yes

Flame Retardance:

V1 conforming to UL 94

Contactor Application:

resistive load || motor control

Operating Altitude:

0...9842.52 ft (0...3000 m)

Minimum Switching Voltage:

17 V for Signaling circuit

Compatibility Code:

LC1D

Climatic Withstand:

IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat

Sustainable Offer Status:

Green Premium product

Non-Overlap Time:

1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Maximum Operating Rate:

3600 cyc/h 60°C

Rated Breaking Capacity:

250 A at 440 V for power circuit conforming to IEC 60947

Weight:

0.485 kg

[Ith] Conventional Free Air Thermal Current:

25 A (at 60°C) for power circuit || 10 A (at 60°C) for Signaling circuit

Mercury Free:

Yes

Time Constant:

28 ms

Pollution Degree:

3

Maximum Horse Power Rating:

0.5 hp at 115 V AC 50/60 Hz for 1 phase motors || 2 hp at 230/240 V AC 50/60 Hz for 1 phase motors || 3 hp at 200/208 V AC 50/60 Hz for 3 phase motors || 3 hp at 230/240 V AC 50/60 Hz for 3 phase motors || 7.5 hp at 460/480 V AC 50/60 Hz for 3 phase

Operating Time:

63±15 % ms closing || 20±20 % ms opening

Electrical Durability:

2 Mcycles 12 A AC-3 <= 440 V || 0.8 Mcycles 25 A AC-1 <= 440 V || 2 Mcycles 12 A AC-3e <= 440 V

Width:

45 mm

Control Circuit Voltage Limits:

0.1...0.25 Uc -40-70°C drop-out DC || 0.7...1.25 Uc -40-60°C operational DC || 1...1.25 Uc 60-70°C operational DC

Height:

77 mm

Power Dissipation Per Pole:

0.36 W AC-3 || 1.56 W AC-1 || 0.36 W AC-3e

Permissible Ambient Air Temperature Around The Device:

-40-60°C || 60-70°C with derating

Pvc Free:

Yes
