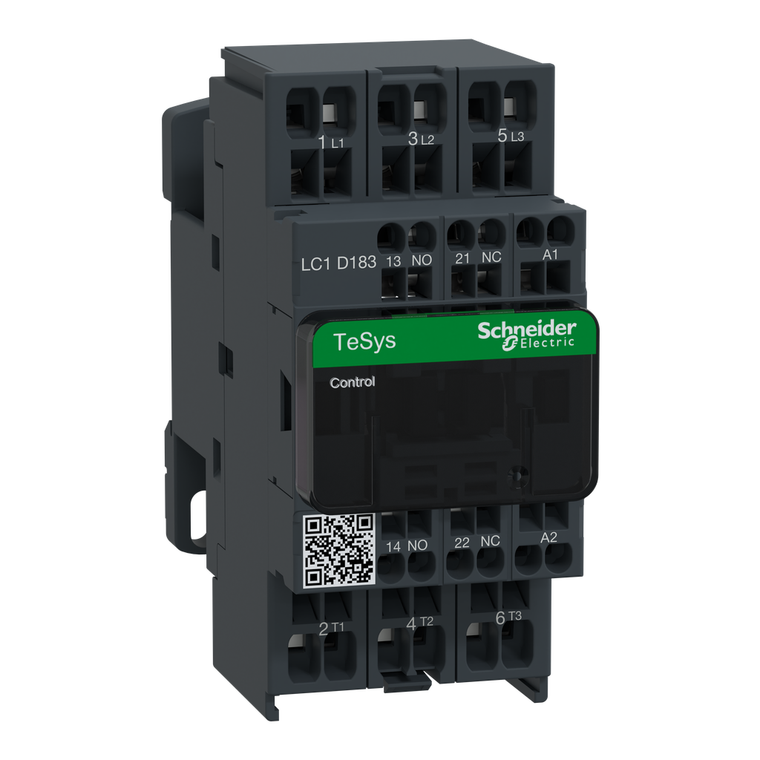

Schneider Electric LC1D183FE7 IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, 3 phase, 3 pole, 3 NO, 115VAC 50/60Hz coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D183FE7 IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, 3 phase, 3 pole, 3 NO, 115VAC 50/60Hz coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D183FE7

UPC:

MPN:

LC1D183FE7

Condition:

New

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

Protective Treatment:

THIEC 60068-2-30

Product Certifications:

GL || BV || DNV || LROS (Lloyds register of shipping) || RINA || UL || CCC || CSA || GOST || UKCA || CB

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Heat Dissipation:

2-3 W at 50/60 Hz

Compatibility Code:

LC1D

Rohs Exemption Information:

Yes

Toxic Heavy Metal Free:

Yes

Sustainable Offer Status:

Green Premium product

[Icw] Rated Short-Time Withstand Current:

145 A 40°C - 10 s for power circuit || 240 A 40°C - 1 s for power circuit || 40 A 40°C - 10 min for power circuit || 84 A 40°C - 1 min for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms fo

Overvoltage Category:

III

Inrush Power In Va:

70-70 VA 60 Hz cos phi 0.75 (at 20°C) || 70-70 VA 50 Hz cos phi 0.75 (at 20°C)

Mechanical Durability:

15 Mcycles

Operating Time:

12...22 ms closing || 4...19 ms opening

Maximum Horse Power Rating:

1 hp at 115 V AC 50/60 Hz for 1 phase motors || 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors || 5 hp at 200/208 V AC 50/60 Hz for 3 phase motors || 5 hp at 230/240 V AC 50/60 Hz for 3 phase motors || 10 hp at 460/480 V AC 50/60 Hz for 3 phase mot

Control Circuit Voltage Limits:

0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz

Permissible Ambient Air Temperature Around The Device:

-40-60°C || 60-70°C with derating

Range Of Product:

TeSys Deca

Minimum Switching Current:

5 mA for Signaling circuit

Warranty:

18 months

Pole Contact Composition:

3 NO

Connections - Terminals:

control circuit: spring terminals 1 2.5-2.5 mm² - cable stiffness: flexible without cable end || control circuit: spring terminals 2 2.5-2.5 mm² - cable stiffness: flexible without cable end || power circuit: spring terminals 1 4-4 mm² - cable sti

Standards:

CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1

Product Or Component Type:

contactor

Auxiliary Contacts Type:

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Eu Rohs Directive:

Compliant

Climatic Withstand:

IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat

Width:

45 mm

Hold-In Power Consumption In Va:

7.5-7.5 VA 60 Hz cos phi 0.3 (at 20°C) || 7-7 VA 50 Hz cos phi 0.3 (at 20°C)

Utilisation Category:

AC-1 || AC-4 || AC-3 || AC-3e

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Depth:

86 mm

Contactor Application:

resistive load || motor control

Rated Breaking Capacity:

300 A at 440 V for power circuit conforming to IEC 60947

[Ui] Rated Insulation Voltage:

power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL

Ip Degree Of Protection:

IP20 front face IEC 60529

Associated Fuse Rating:

10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 50 A gG at <= 690 V coordination type 1 for power circuit || 35 A gG at <= 690 V coordination type 2 for power circuit

Coil Technology:

without built-in suppressor module

[Ith] Conventional Free Air Thermal Current:

25 A (at 60°C) for power circuit || 10 A (at 60°C) for Signaling circuit

Pollution Degree:

3

Insulation Resistance:

> 10 MOhm for Signaling circuit

Power Dissipation Per Pole:

2.5 W AC-1 || 0.8 W AC-3 || 0.8 W AC-3e

Country of Origin:

United States

Net Weight:

0.33 kg

Environmental Disclosure:

ENVPEP1501004

Weight:

0.33 kg

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Average Impedance:

2.5 mOhm - Ith 25 A 50 Hz for power circuit
