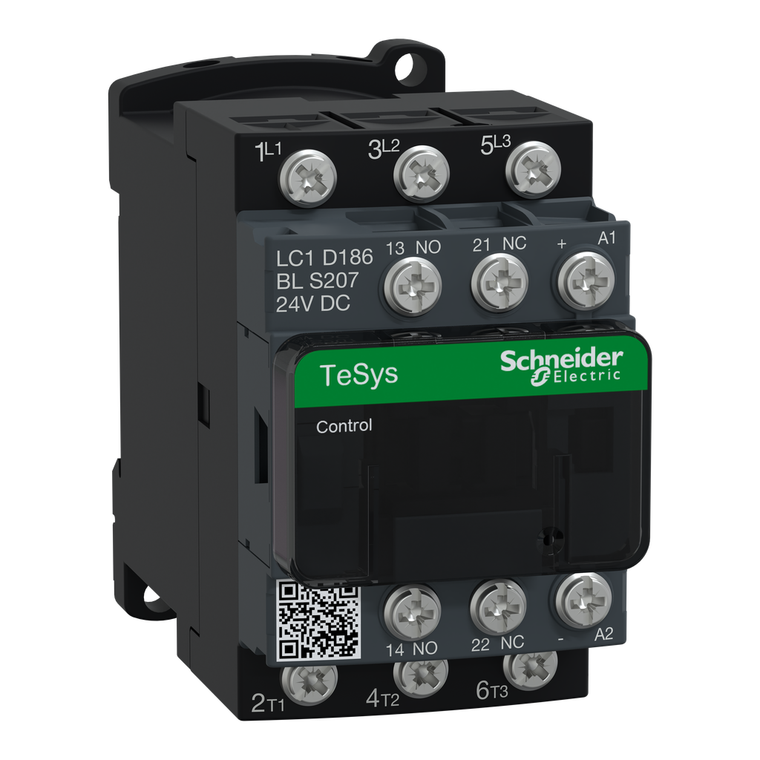

Schneider Electric LC1D186BLS207 IEC contactor, TeSys D, nonreversing, 18A, 10HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D186BLS207 IEC contactor, TeSys D, nonreversing, 18A, 10HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D186BLS207

UPC:

MPN:

LC1D186BLS207

Condition:

New

Mechanical Robustness:

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)

Rated Breaking Capacity:

300 A at 440 V for power circuit conforming to IEC 60947

Device Short Name:

LC1D

Irms Rated Making Capacity:

140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 300 A at 440 V for power circuit conforming to IEC 60947

Eu Rohs Directive:

Compliant with Exemptions

Warranty:

18 months

Power Dissipation Per Pole:

2.5 W AC-1 || 0.8 W AC-3 || 0.8 W AC-3e

Tightening Torque:

control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5 || control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || power circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || power circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3

Control Circuit Type:

DC low consumption

[Ui] Rated Insulation Voltage:

power circuit 690 V IEC 60947-4-1 || Signaling circuit 690 V IEC 60947-1

Mounting Support:

plate || rail

Protective Cover:

with

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz

Associated Fuse Rating:

10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 50 A gG at <= 690 V coordination type 1 for power circuit || 35 A gG at <= 690 V coordination type 2 for power circuit

Time Constant:

37 ms

Poles Description:

3P

Environmental Disclosure:

ENVPEP2205004

Electrical Durability:

1.65 Mcycles 18 A AC-3 <= 440 V || 1 Mcycles 32 A AC-1 <= 440 V || 1.65 Mcycles 18 A AC-3e <= 440 V

Insulation Resistance:

> 10 MOhm for Signaling circuit

Country of Origin:

France

Hold-In Power Consumption In W:

4-4 W 20°C

Non-Overlap Time:

1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Operating Time:

77±15 % ms closing || 25±20 % ms opening

Product Certifications:

IEC || CCC || EAC || UA || TR || UKCA

Rohs Exemption Information:

Yes

Compatibility Code:

LC1D

Coil Technology:

with integral suppression device

Ambient Air Temperature For Storage:

-60-80°C

[Ith] Conventional Free Air Thermal Current:

10 A (at 60°C) for Signaling circuit || 32 A (at 60°C) for power circuit

Sustainable Offer Status:

Green Premium product

Contactor Application:

motor control || resistive load

Minimum Switching Voltage:

17 V for Signaling circuit

Motor Power Kw:

4 kW at 220/230 V AC 50 Hz (AC-3) || 7.5 kW at 380/400 V AC 50 Hz (AC-3) || 9 kW at 415 V AC 50 Hz (AC-3) || 9 kW at 440 V AC 50 Hz (AC-3) || 10 kW at 500 V AC 50 Hz (AC-3) || 10 kW at 660/690 V AC 50 Hz (AC-3) || 4 kW at 220/230 V AC 50 Hz (AC-3e) |

Inrush Power In W:

4-4 W 20°C)

Control Circuit Voltage Limits:

0.1...0.25 Uc -40-70°C drop-out DC || 0.7...1.25 Uc -40-70°C operational DC

Pvc Free:

Yes

Overvoltage Category:

III

Width:

45 mm

Weight:

0.33 kg

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Range:

TeSys || TeSys Deca

Pole Contact Composition:

3 NO

Minimum Switching Current:

5 mA for Signaling circuit

Auxiliary Contacts Type:

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Net Weight:

0.33 kg

Standards:

EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || EN 45545: R22 HL3 || EN 45545: R26 HL3 || DIN 5510-2

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947
