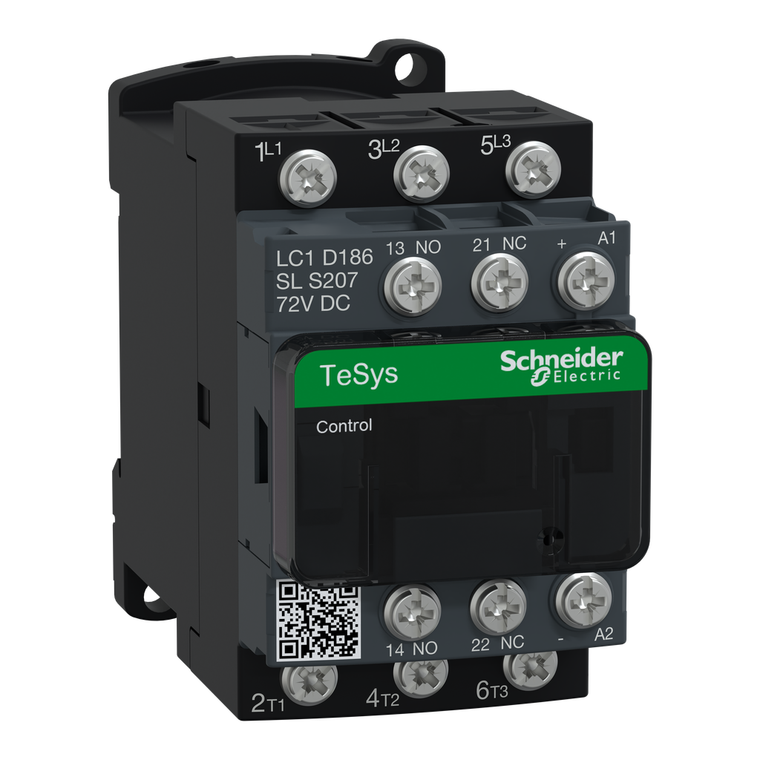

Schneider Electric LC1D186SLS207 IEC contactor, TeSys D, nonreversing, 18A, 10HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 72VDC coil, open style

Schneider Electric LC1D186SLS207 IEC contactor, TeSys D, nonreversing, 18A, 10HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 72VDC coil, open style

Schneider Electric
SKU:
LC1D186SLS207
$214.20
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This TeSys D contactor has been designed for motor control in railway applications. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 18A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 5HP at 200 to 208VAC, 5HP at 240VAC, 10HP at 480VAC and 15HP at 600VAC three phase. Contactor is also rated for 1HP at 115VAC and 3HP at 240VAC single phase. Contactor is supplied with a low consumption 72 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Ring-lug screw terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.03 inches tall, 1.77 inches wide and 3.74 inches deep. It weighs 1.08 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
Additional Information
Product Certifications:
IEC || CCC || EAC || UA || TR || UKCA
Protective Cover:
with
Overvoltage Category:
III
[Ui] Rated Insulation Voltage:
power circuit 690 V IEC 60947-4-1 || Signaling circuit 690 V IEC 60947-1
Operating Time:
77±15 % ms closing || 25±20 % ms opening
[Ith] Conventional Free Air Thermal Current:
10 A (at 60°C) for Signaling circuit || 32 A (at 60°C) for power circuit
Tightening Torque:
control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5 || control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || power circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || power circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3
Weight:
0.33 kg
Contactor Application:
motor control || resistive load
Device Short Name:
LC1D
Average Impedance:
2.5 mOhm - Ith 32 A 50 Hz for power circuit
Environmental Disclosure:
ENVPEP2205004
Connections - Terminals:
control circuit: lugs-ring terminals - external diameter: 8 mm || power circuit: lugs-ring terminals - external diameter: 9.5 mm
Depth:
95 mm
Range Of Product:
TeSys Deca
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Time Constant:
37 ms
Mechanical Durability:
30 Mcycles
Mechanical Robustness:
vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)
Hold-In Power Consumption In W:
4-4 W 20°C
Mounting Support:
rail || plate
Pole Contact Composition:
3 NO
Operating Altitude:
0...9842.52 ft (0...3000 m)
Ambient Air Temperature For Storage:
-60-80°C
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947
Insulation Resistance:
> 10 MOhm for Signaling circuit
Standards:
EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || EN 45545: R22 HL3 || EN 45545: R26 HL3 || DIN 5510-2
Eu Rohs Directive:
Compliant with Exemptions
[Ue] Rated Operational Voltage:
power circuit <= 690 V AC 25...400 Hz
Electrical Durability:
1.65 Mcycles 18 A AC-3 <= 440 V || 1 Mcycles 32 A AC-1 <= 440 V || 1.65 Mcycles 18 A AC-3e <= 440 V
Control Circuit Type:
DC low consumption
Circularity Profile:
N/A
Fire Resistance:
850°C IEC 60695-2-1
Compatibility Code:
LC1D
Auxiliary Contacts Type:
mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Non-Overlap Time:
1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
Pvc Free:
Yes
Irms Rated Making Capacity:
140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 300 A at 440 V for power circuit conforming to IEC 60947
Product Or Component Type:
contactor
Country of Origin:
United States
Auxiliary Contact Composition:
1 NO + 1 NC
Inrush Power In W:
4-4 W 20°C)
Width:
45 mm
Range:
TeSys || TeSys Deca
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rohs Exemption Information:
Yes
Control Circuit Voltage Limits:
0.1...0.25 Uc -40-70°C drop-out DC || 0.7...1.25 Uc -40-70°C operational DC
Coil Technology:
with integral suppression device
