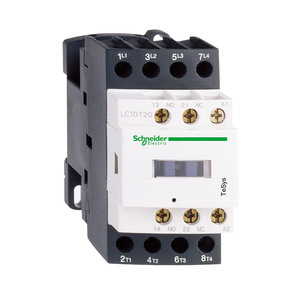

Schneider Electric LC1D188BD IEC contactor, TeSys Deca, nonreversing, 32A resistive, 4 pole, 2 NO and 2 NC, 24VDC coil, open style
Schneider Electric
$200.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LC1D188BD IEC contactor, TeSys Deca, nonreversing, 32A resistive, 4 pole, 2 NO and 2 NC, 24VDC coil, open style
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has two normally open and two normally closed power contacts. Power contacts have a 32A resistive load rating. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.58 inches tall, 1.77 inches wide and 4.21 inches deep. It weighs 1.29 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Weight:
- 0.585 kg
- Pvc Free:
- Yes
- Mounting Support:
- plate || rail
- Height:
- 91 mm
- Warranty:
- 18 months
- Auxiliary Contacts Type:
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- Sustainable Offer Status:
- Green Premium product
- Width:
- 45 mm
- Non-Overlap Time:
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Mercury Free:
- Yes
- Pollution Degree:
- 3
- Power Dissipation Per Pole:
- 2.5 W AC-1
- Flame Retardance:
- V1 conforming to UL 94
- Inrush Power In W:
- 5.4-5.4 W 20°C)
- [Ith] Conventional Free Air Thermal Current:
- 10 A (at 60°C) for Signaling circuit || 32 A (at 60°C) for power circuit
- Safety Reliability Level:
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- [Ue] Rated Operational Voltage:
- power circuit <= 690 V AC 25...400 Hz
- Protective Treatment:
- THIEC 60068-2-30
- Hold-In Power Consumption In W:
- 5.4-5.4 W 20°C
- Depth:
- 107 mm
- Product Or Component Type:
- contactor
- Electrical Durability:
- 1 Mcycles 32 A AC-1 <= 440 V
- Maximum Operating Rate:
- 3600 cyc/h 60°C
- Country of Origin:
- Indonesia
- Utilisation Category:
- AC-1 || AC-3 || AC-3e || AC-4
- Coil Technology:
- with integral suppression device
- Compatibility Code:
- LC1D
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Protective Cover:
- with
- Insulation Resistance:
- > 10 MOhm for Signaling circuit
- Eu Rohs Directive:
- Compliant with Exemptions
- Tightening Torque:
- control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 1.8 N.m screw clamps terminals flat Ø 6 mm || po
- Average Impedance:
- 2.5 mOhm - Ith 32 A 50 Hz for power circuit
- Circularity Profile:
- ENVEOLI1102030EN
- Permissible Ambient Air Temperature Around The Device:
- -40-60°C || 60-70°C with derating
- Pole Contact Composition:
- 2 NO + 2 NC
- Minimum Switching Current:
- 5 mA for Signaling circuit
- Net Weight:
- 0.585 kg
- [Icw] Rated Short-Time Withstand Current:
- 145 A 40°C - 10 s for power circuit || 240 A 40°C - 1 s for power circuit || 40 A 40°C - 10 min for power circuit || 84 A 40°C - 1 min for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms fo
- [Uc] Control Circuit Voltage:
- 24 V DC
- Auxiliary Contact Composition:
- 1 NO + 1 NC
- [Ui] Rated Insulation Voltage:
- power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL
- Control Circuit Type:
- DC standard
- Connections - Terminals:
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-4 mm² -
- Time Constant:
- 28 ms
- Mechanical Robustness:
- vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)
- Range Of Product:
- TeSys Deca
- Product Certifications:
- UL || CSA || CCC || EAC || UKCA || CB || EU-RO-MR by DNV-GL
