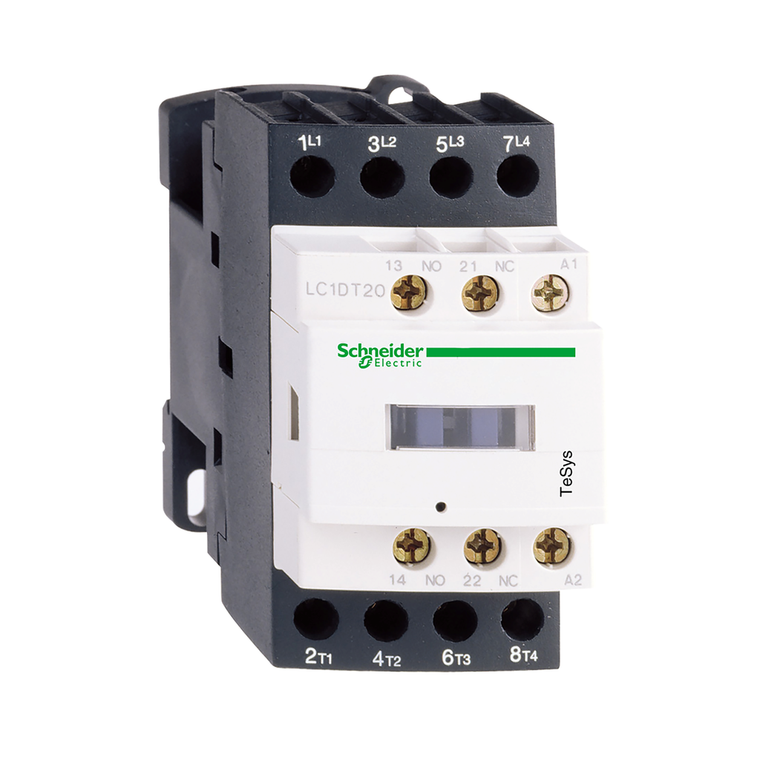

Schneider Electric LC1D188BL IEC contactor, TeSys Deca, nonreversing, 32A resistive, 4 pole, 2 NO and 2 NC, low consumption 24VDC coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D188BL IEC contactor, TeSys Deca, nonreversing, 32A resistive, 4 pole, 2 NO and 2 NC, low consumption 24VDC coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D188BL

UPC:

MPN:

LC1D188BL

Condition:

New

Rated Breaking Capacity:

300 A at 440 V for power circuit conforming to IEC 60947

Auxiliary Contact Composition:

1 NO + 1 NC

Auxiliary Contacts Type:

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Hold-In Power Consumption In W:

2.4-2.4 W 20°C

Connections - Terminals:

control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-4 mm² -

Product Certifications:

UL || CSA || CCC || EAC || UKCA || CB || EU-RO-MR by DNV-GL

Flame Retardance:

V1 conforming to UL 94

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Irms Rated Making Capacity:

140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 300 A at 440 V for power circuit conforming to IEC 60947

Protective Cover:

with

Signaling Circuit Frequency:

25...400 Hz

Mercury Free:

Yes

Warranty:

18 months

Protective Treatment:

THIEC 60068-2-30

Permissible Ambient Air Temperature Around The Device:

-40-60°C || 60-70°C with derating

Compatibility Code:

LC1D

Insulation Resistance:

> 10 MOhm for Signaling circuit

Ip Degree Of Protection:

IP20 front face IEC 60529

[Uc] Control Circuit Voltage:

24 V DC

Climatic Withstand:

IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat

Operating Altitude:

0...9842.52 ft (0...3000 m)

Fire Resistance:

850°C IEC 60695-2-1

Associated Fuse Rating:

10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 50 A gG at <= 690 V coordination type 1 for power circuit || 35 A gG at <= 690 V coordination type 2 for power circuit

Electrical Durability:

1 Mcycles 32 A AC-1 <= 440 V

Control Circuit Type:

DC low consumption

Range Of Product:

TeSys Deca

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Icw] Rated Short-Time Withstand Current:

145 A 40°C - 10 s for power circuit || 240 A 40°C - 1 s for power circuit || 40 A 40°C - 10 min for power circuit || 84 A 40°C - 1 min for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms fo

Depth:

107 mm

Circularity Profile:

ENVEOLI1102030EN

Environmental Disclosure:

ENVPEP110230EN

Minimum Switching Current:

5 mA for Signaling circuit

Device Short Name:

LC1D

Sustainable Offer Status:

Green Premium product

Mechanical Robustness:

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)

Inrush Power In W:

2.4-2.4 W 20°C)

Average Impedance:

2.5 mOhm - Ith 32 A 50 Hz for power circuit

Poles Description:

4P

Utilisation Category:

AC-1 || AC-3 || AC-3e || AC-4

Pole Contact Composition:

2 NO + 2 NC

Mechanical Durability:

30 Mcycles

Width:

45 mm

Mounting Support:

plate || rail

[Ith] Conventional Free Air Thermal Current:

10 A (at 60°C) for Signaling circuit || 32 A (at 60°C) for power circuit

Standards:

EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4

Pvc Free:

Yes

Height:

91 mm

Eu Rohs Directive:

Compliant with Exemptions
