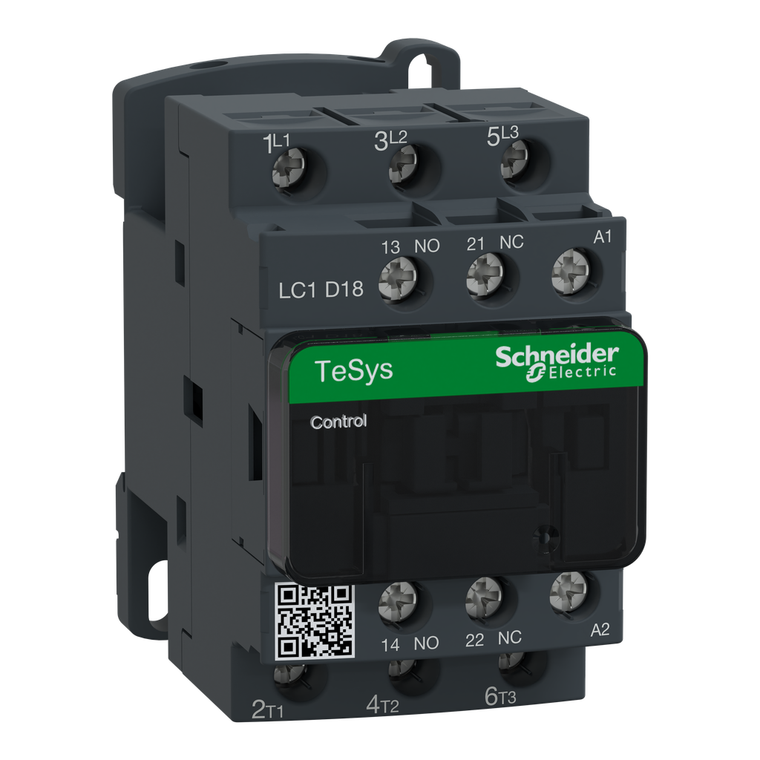

Schneider Electric LC1D18B7 IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VAC 50/60Hz coil, open
Schneider Electric
$163.20
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LC1D18B7 IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VAC 50/60Hz coil, open
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 18A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 5HP at 200-208VAC, 5HP at 240VAC, 10HP at 480VAC and 15HP at 600VAC three phase. Contactor is also rated for 1HP at 115VAC and 3HP at 240VAC single phase. When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 40A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.03 inches tall, 1.77 inches wide and 3.39 inches deep. It weighs 0.73 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Weight:
- 0.33 kg
- Coil Technology:
- without built-in suppressor module
- Height:
- 77 mm
- [Ie] Rated Operational Current:
- 18 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 32 A (at <60°C) at <= 440 V AC AC-1 for power circuit || 18 A (at <60°C) at <= 440 V AC AC-3e for power circuit
- Signaling Circuit Frequency:
- 25...400 Hz
- Tightening Torque:
- power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || contro
- Environmental Disclosure:
- ENVPEP1501004
- Net Weight:
- 0.33 kg
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Poles Description:
- 3P
- [Ui] Rated Insulation Voltage:
- power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL
- Contactor Application:
- resistive load || motor control
- Auxiliary Contact Composition:
- 1 NO + 1 NC
- Country of Origin:
- Indonesia
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947
- Sustainable Offer Status:
- Green Premium product
- [Ue] Rated Operational Voltage:
- power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
- Flame Retardance:
- V1 conforming to UL 94
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Overvoltage Category:
- III
- Power Dissipation Per Pole:
- 2.5 W AC-1 || 0.8 W AC-3 || 0.8 W AC-3e
- Minimum Switching Voltage:
- 17 V for Signaling circuit
- Control Circuit Type:
- AC 50/60 Hz standard
- Protective Cover:
- with
- Non-Overlap Time:
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Product Certifications:
- GL || BV || DNV || LROS (Lloyds register of shipping) || RINA || UL || CCC || CSA || GOST || UKCA || CB
- [Ith] Conventional Free Air Thermal Current:
- 10 A (at 60°C) for Signaling circuit || 32 A (at 60°C) for power circuit
- Operating Time:
- 12...22 ms closing || 4...19 ms opening
- Pollution Degree:
- 3
- Operating Altitude:
- 0...9842.52 ft (0...3000 m)
- Depth:
- 86 mm
- Pvc Free:
- Yes
- Mechanical Durability:
- 15 Mcycles
- Ip Degree Of Protection:
- IP20 front face IEC 60529
- Range Of Product:
- TeSys Deca
- Average Impedance:
- 2.5 mOhm - Ith 32 A 50 Hz for power circuit
- Motor Power Kw:
- 4 kW at 220...230 V AC 50/60 Hz (AC-3) || 7.5 kW at 380...400 V AC 50/60 Hz (AC-3) || 9 kW at 415...440 V AC 50/60 Hz (AC-3) || 10 kW at 500 V AC 50/60 Hz (AC-3) || 10 kW at 660...690 V AC 50/60 Hz (AC-3) || 4 kW at 400 V AC 50/60 Hz (AC-4) || 4 kW a
- Insulation Resistance:
- > 10 MOhm for Signaling circuit
- Auxiliary Contacts Type:
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- Irms Rated Making Capacity:
- 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 300 A at 440 V for power circuit conforming to IEC 60947
- Permissible Ambient Air Temperature Around The Device:
- -40-60°C || 60-70°C with derating
- Rated Breaking Capacity:
- 300 A at 440 V for power circuit conforming to IEC 60947
- Mounting Support:
- rail || plate
- Rohs Exemption Information:
- Yes
