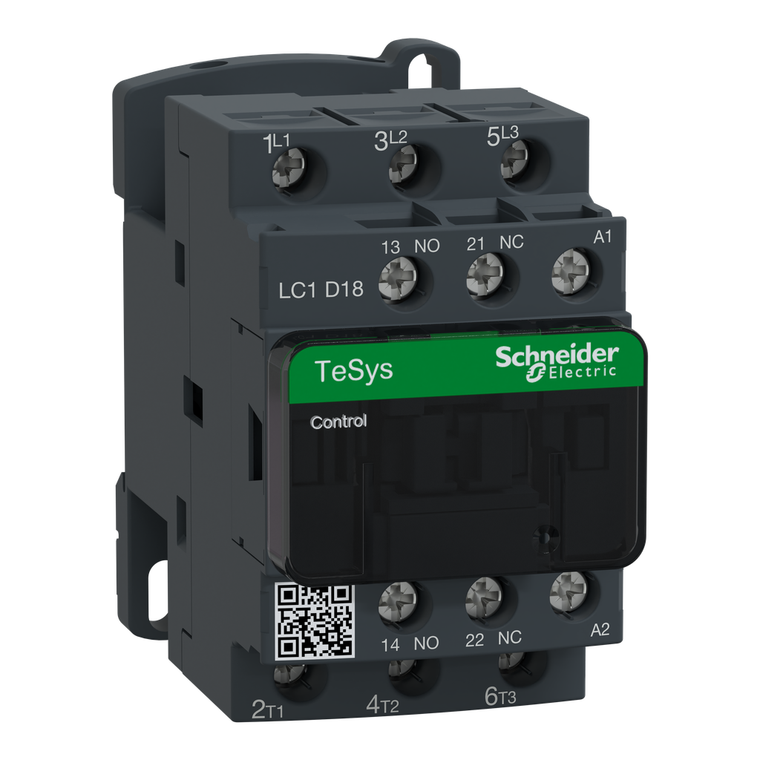

Schneider Electric LC1D18M7 IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 220VAC 50/60Hz coil, open

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D18M7 IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 220VAC 50/60Hz coil, open

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D18M7

UPC:

MPN:

LC1D18M7

Condition:

New

Eu Rohs Directive:

Compliant

Operating Altitude:

0...9842.52 ft (0...3000 m)

Mechanical Robustness:

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)

Irms Rated Making Capacity:

140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 300 A at 440 V for power circuit conforming to IEC 60947

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Rohs Exemption Information:

Yes

[Ith] Conventional Free Air Thermal Current:

10 A (at 60°C) for Signaling circuit || 32 A (at 60°C) for power circuit

[Uc] Control Circuit Voltage:

220 V AC 50/60 Hz

Product Certifications:

GL || BV || DNV || LROS (Lloyds register of shipping) || RINA || UL || CCC || CSA || GOST || UKCA || CB

Auxiliary Contacts Type:

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Hold-In Power Consumption In Va:

7.5-7.5 VA 60 Hz cos phi 0.3 (at 20°C) || 7-7 VA 50 Hz cos phi 0.3 (at 20°C)

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Permissible Ambient Air Temperature Around The Device:

-40-60°C || 60-70°C with derating

Protective Treatment:

THIEC 60068-2-30

Maximum Operating Rate:

3600 cyc/h 60°C

Product Or Component Type:

contactor

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

Country of Origin:

United States

Maximum Horse Power Rating:

1 hp at 115 V AC 50/60 Hz for 1 phase motors || 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors || 5 hp at 200/208 V AC 50/60 Hz for 3 phase motors || 5 hp at 230/240 V AC 50/60 Hz for 3 phase motors || 10 hp at 460/480 V AC 50/60 Hz for 3 phase mot

Rated Breaking Capacity:

300 A at 440 V for power circuit conforming to IEC 60947

Auxiliary Contact Composition:

1 NO + 1 NC

Mounting Support:

plate || rail

Utilisation Category:

AC-1 || AC-4 || AC-3 || AC-3e

Depth:

86 mm

Environmental Disclosure:

ENVPEP1501004

Standards:

CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1

Electrical Durability:

1.65 Mcycles 18 A AC-3 <= 440 V || 1 Mcycles 32 A AC-1 <= 440 V || 1.65 Mcycles 18 A AC-3e <= 440 V

Circularity Profile:

ENVEOLI1501004

Flame Retardance:

V1 conforming to UL 94

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Connections - Terminals:

control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-4 mm² -

Minimum Switching Current:

5 mA for Signaling circuit

Insulation Resistance:

> 10 MOhm for Signaling circuit

Warranty:

18 months

Power Dissipation Per Pole:

2.5 W AC-1 || 0.8 W AC-3 || 0.8 W AC-3e

Range Of Product:

TeSys Deca

Toxic Heavy Metal Free:

Yes

Contactor Application:

resistive load || motor control

Non-Overlap Time:

1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Motor Power Kw:

4 kW at 220...230 V AC 50/60 Hz (AC-3) || 7.5 kW at 380...400 V AC 50/60 Hz (AC-3) || 9 kW at 415...440 V AC 50/60 Hz (AC-3) || 10 kW at 500 V AC 50/60 Hz (AC-3) || 10 kW at 660...690 V AC 50/60 Hz (AC-3) || 4 kW at 400 V AC 50/60 Hz (AC-4) || 4 kW a

Fire Resistance:

850°C IEC 60695-2-1

Net Weight:

0.33 kg

Inrush Power In Va:

70-70 VA 60 Hz cos phi 0.75 (at 20°C) || 70-70 VA 50 Hz cos phi 0.75 (at 20°C)

Minimum Switching Voltage:

17 V for Signaling circuit

Climatic Withstand:

IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat

Mercury Free:

Yes

Pole Contact Composition:

3 NO
