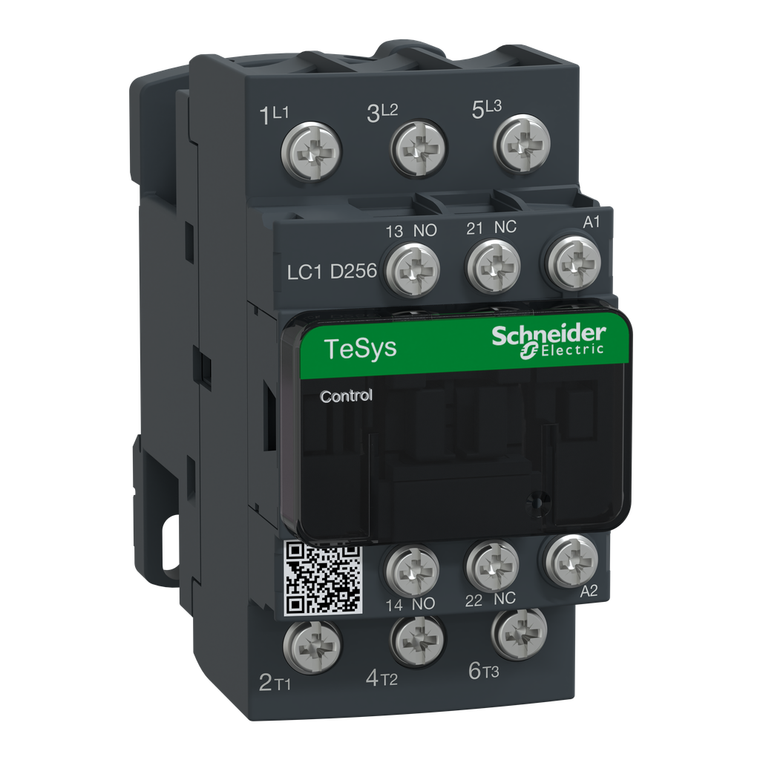

Schneider Electric LC1D256K7 IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, 3 phase, 3 pole, 3 NO, 100VAC 50/60Hz coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D256K7 IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, 3 phase, 3 pole, 3 NO, 100VAC 50/60Hz coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D256K7

UPC:

MPN:

LC1D256K7

Condition:

New

[Icw] Rated Short-Time Withstand Current:

240 A 40°C - 10 s for power circuit || 380 A 40°C - 1 s for power circuit || 50 A 40°C - 10 min for power circuit || 120 A 40°C - 1 min for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms f

Net Weight:

0.37 kg

Compatibility Code:

LC1D

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Contactor Application:

motor control || resistive load

Maximum Operating Rate:

3600 cyc/h 60°C

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Operating Time:

12...22 ms closing || 4...19 ms opening

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

Mechanical Durability:

15 Mcycles

Inrush Power In Va:

70-70 VA 60 Hz cos phi 0.75 (at 20°C) || 70-70 VA 50 Hz cos phi 0.75 (at 20°C)

Product Or Component Type:

contactor

Operating Altitude:

0...9842.52 ft (0...3000 m)

Pollution Degree:

3

Weight:

0.37 kg

Average Impedance:

2 mOhm - Ith 40 A 50 Hz for power circuit

Irms Rated Making Capacity:

140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 450 A at 440 V for power circuit conforming to IEC 60947

Overvoltage Category:

III

Environmental Disclosure:

ENVPEP110229EN

Poles Description:

3P

Tightening Torque:

control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5 || control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || power circuit 2.5 N.m lugs-ring terminals flat Ø 8 mm M4 || power circuit 2.5 N.m lugs-ring terminals Philips No 2 M4 |

Flame Retardance:

V1 conforming to UL 94

[Ui] Rated Insulation Voltage:

power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL

[Uc] Control Circuit Voltage:

100 V AC 50/60 Hz

Electrical Durability:

1.65 Mcycles 25 A AC-3 <= 440 V || 1.4 Mcycles 40 A AC-1 <= 440 V || 1.65 Mcycles 25 A AC-3e <= 440 V

Motor Power Kw:

5.5 kW at 220...230 V AC 50/60 Hz || 11 kW at 380...400 V AC 50/60 Hz || 11 kW at 415...440 V AC 50/60 Hz || 15 kW at 500 V AC 50/60 Hz || 15 kW at 660...690 V AC 50/60 Hz

Circularity Profile:

ENVEOLI110229EN

Connections - Terminals:

control circuit: lugs-ring terminals - external diameter: 8 mm || power circuit: lugs-ring terminals - external diameter: 10 mm

Rohs Exemption Information:

Yes

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC

Product Certifications:

DNV || GL || RINA || GOST || BV || CSA || UL || CCC || LROS (Lloyds register of shipping) || UKCA

Warranty:

18 months

Country of Origin:

Indonesia

Associated Fuse Rating:

10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 63 A gG at <= 690 V coordination type 1 for power circuit || 40 A gG at <= 690 V coordination type 2 for power circuit

Auxiliary Contact Composition:

1 NO + 1 NC

Pvc Free:

Yes

Depth:

92 mm

Rated Breaking Capacity:

450 A at 440 V for power circuit conforming to IEC 60947

Permissible Ambient Air Temperature Around The Device:

-40-60°C || 60-70°C with derating

Protective Treatment:

THIEC 60068-2-30

Control Circuit Type:

AC 50/60 Hz

Sustainable Offer Status:

Green Premium product

Maximum Horse Power Rating:

3 hp at 230/240 V AC 50/60 Hz for 1 phase motors || 2 hp at 115 V AC 50/60 Hz for 1 phase motors || 7.5 hp at 230/240 V AC 50/60 Hz for 3 phase motors || 15 hp at 460/480 V AC 50/60 Hz for 3 phase motors || 20 hp at 575/600 V AC 50/60 Hz for 3 phase

Fire Resistance:

850°C IEC 60695-2-1
