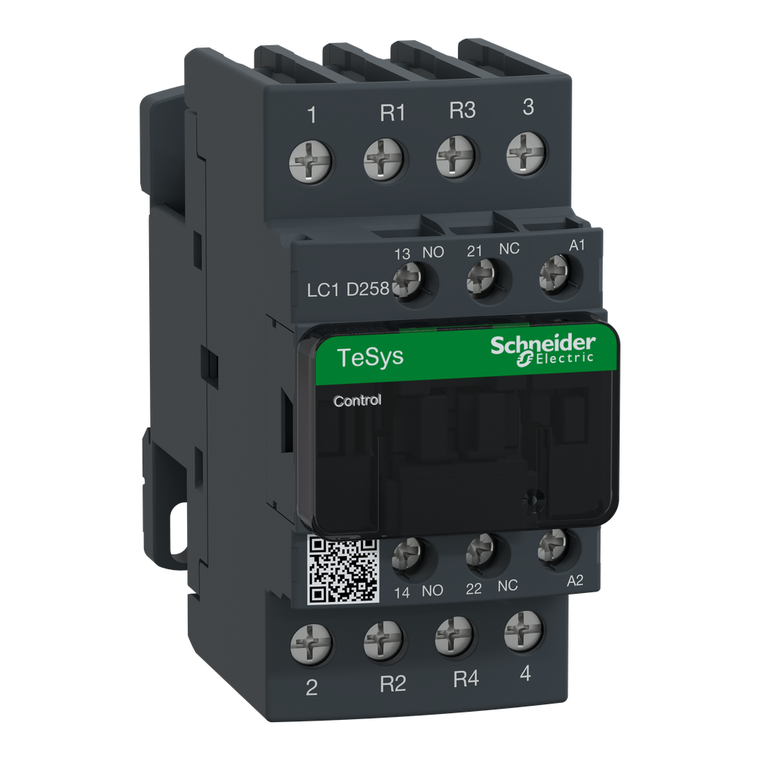

Schneider Electric LC1D258M7 IEC contactor, TeSys Deca, nonreversing, 40A resistive, 4 pole, 2 NO and 2 NC, 220VAC 50/60Hz coil, open style
Schneider Electric
$246.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LC1D258M7 IEC contactor, TeSys Deca, nonreversing, 40A resistive, 4 pole, 2 NO and 2 NC, 220VAC 50/60Hz coil, open style
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has two normally open and two normally closed power contacts. Power contacts have a 40A resistive load rating. Contactor is supplied with a 220 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.13 inches tall, 1.77 inches wide and 3.90 inches deep. It weighs 0.94 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
- Control Circuit Type:
- AC 50/60 Hz
- [Icw] Rated Short-Time Withstand Current:
- 240 A 40°C - 10 s for power circuit || 380 A 40°C - 1 s for power circuit || 50 A 40°C - 10 min for power circuit || 120 A 40°C - 1 min for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms f
- Rohs Exemption Information:
- Yes
- Minimum Switching Current:
- 5 mA for Signaling circuit
- [Ui] Rated Insulation Voltage:
- power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL
- Associated Fuse Rating:
- 10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 63 A gG at <= 690 V coordination type 1 for power circuit || 40 A gG at <= 690 V coordination type 2 for power circuit
- Non-Overlap Time:
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Coil Technology:
- without built-in suppressor module
- Average Impedance:
- 2 mOhm - Ith 40 A 50 Hz for power circuit
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947
- Protective Treatment:
- THIEC 60068-2-30
- Width:
- 45 mm
- Operating Time:
- 12...22 ms closing || 4...19 ms opening
- Mechanical Robustness:
- vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor closed 15 Gn for 11 ms) || shocks contactor open 8 Gn for 11 ms)
- Eu Rohs Directive:
- Compliant
- Product Or Component Type:
- contactor
- Circularity Profile:
- ENVEOLI110229EN
- Minimum Switching Voltage:
- 17 V for Signaling circuit
- Mounting Support:
- rail || plate
- Hold-In Power Consumption In Va:
- 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20°C) || 7-7 VA 50 Hz cos phi 0.3 (at 20°C)
- Environmental Disclosure:
- ENVPEP110229EN
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Device Short Name:
- LC1D
- Fire Resistance:
- 850°C IEC 60695-2-1
- Inrush Power In Va:
- 70-70 VA 60 Hz cos phi 0.75 (at 20°C) || 70-70 VA 50 Hz cos phi 0.75 (at 20°C)
- Auxiliary Contact Composition:
- 1 NO + 1 NC
- Pollution Degree:
- 3
- Standards:
- EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4
- Pvc Free:
- Yes
- Connections - Terminals:
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-4 mm² -
- Maximum Operating Rate:
- 3600 cyc/h 60°C
- Country of Origin:
- France
- Safety Reliability Level:
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Insulation Resistance:
- > 10 MOhm for Signaling circuit
- Mechanical Durability:
- 15 Mcycles
- Depth:
- 99 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Contactor Application:
- resistive load
- Sustainable Offer Status:
- Green Premium product
- Protective Cover:
- with
- Tightening Torque:
- control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 1.8 N.m screw clamps terminals flat Ø 6 mm || po
- Operating Altitude:
- 0...9842.52 ft (0...3000 m)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Flame Retardance:
- V1 conforming to UL 94
- Utilisation Category:
- AC-1 || AC-3 || AC-3e || AC-4
- Ip Degree Of Protection:
- IP20 front face IEC 60529
- Power Dissipation Per Pole:
- 3.2 W AC-1
