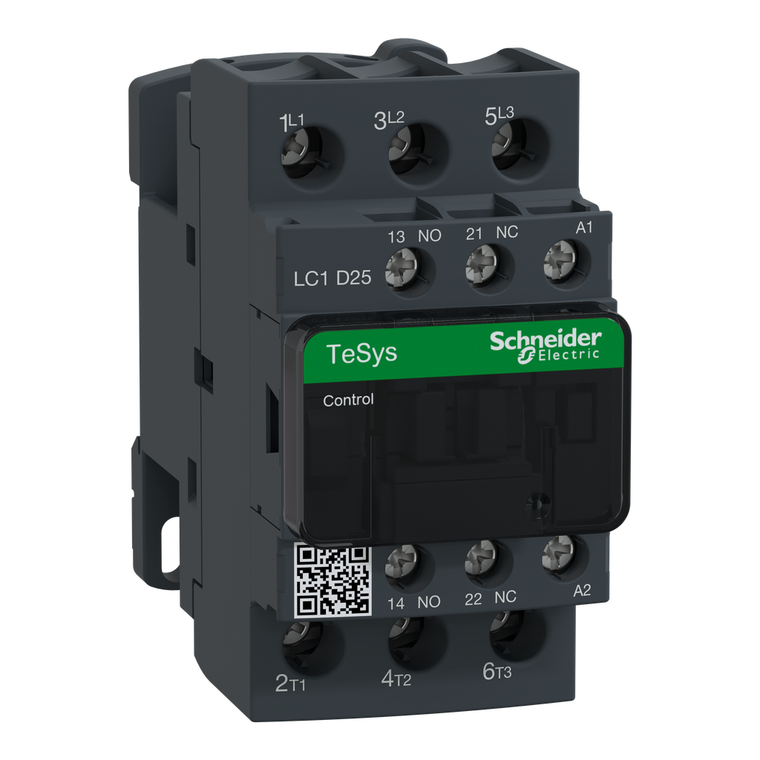

Schneider Electric LC1D25U7 IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 240VAC 50/60Hz coil, open

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D25U7 IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 240VAC 50/60Hz coil, open

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D25U7

UPC:

MPN:

LC1D25U7

Condition:

New

Height:

85 mm

[Ui] Rated Insulation Voltage:

power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL

Compatibility Code:

LC1D

Eu Rohs Directive:

Compliant

Climatic Withstand:

IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat

Rated Breaking Capacity:

450 A at 440 V for power circuit conforming to IEC 60947

Signaling Circuit Frequency:

25...400 Hz

Insulation Resistance:

> 10 MOhm for Signaling circuit

Operating Altitude:

0...9842.52 ft (0...3000 m)

Auxiliary Contacts Type:

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Width:

45 mm

[Ie] Rated Operational Current:

25 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 40 A (at <60°C) at <= 440 V AC AC-1 for power circuit || 25 A (at <60°C) at <= 440 V AC AC-3e for power circuit

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

Overvoltage Category:

III

Pollution Degree:

3

Contactor Application:

motor control || resistive load

Tightening Torque:

control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm || power circuit 2.5 N.m screw clamp terminals Philips No 2 || contro

Non-Overlap Time:

1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

[Ith] Conventional Free Air Thermal Current:

10 A (at 60°C) for Signaling circuit || 40 A (at 60°C) for power circuit

Inrush Power In Va:

70-70 VA 60 Hz cos phi 0.75 (at 20°C) || 70-70 VA 50 Hz cos phi 0.75 (at 20°C)

Average Impedance:

2 mOhm - Ith 40 A 50 Hz for power circuit

Range Of Product:

TeSys Deca

[Icw] Rated Short-Time Withstand Current:

240 A 40°C - 10 s for power circuit || 380 A 40°C - 1 s for power circuit || 50 A 40°C - 10 min for power circuit || 120 A 40°C - 1 min for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms f

Hold-In Power Consumption In Va:

7.5-7.5 VA 60 Hz cos phi 0.3 (at 20°C) || 7-7 VA 50 Hz cos phi 0.3 (at 20°C)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Circularity Profile:

ENVEOLI110229EN

Weight:

0.37 kg

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC

Standards:

CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1

Warranty:

18 months

Permissible Ambient Air Temperature Around The Device:

-40-60°C || 60-70°C with derating

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Mechanical Durability:

15 Mcycles

Heat Dissipation:

2-3 W at 50/60 Hz

Maximum Operating Rate:

3600 cyc/h 60°C

Flame Retardance:

V1 conforming to UL 94

Fire Resistance:

850°C IEC 60695-2-1

Depth:

92 mm

Control Circuit Voltage Limits:

0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz

Product Or Component Type:

contactor

Protective Cover:

with

Maximum Horse Power Rating:

3 hp at 230/240 V AC 50/60 Hz for 1 phase motors || 2 hp at 115 V AC 50/60 Hz for 1 phase motors || 7.5 hp at 230/240 V AC 50/60 Hz for 3 phase motors || 15 hp at 460/480 V AC 50/60 Hz for 3 phase motors || 20 hp at 575/600 V AC 50/60 Hz for 3 phase

Auxiliary Contact Composition:

1 NO + 1 NC

Associated Fuse Rating:

10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 63 A gG at <= 690 V coordination type 1 for power circuit || 40 A gG at <= 690 V coordination type 2 for power circuit

Minimum Switching Current:

5 mA for Signaling circuit

Electrical Durability:

1.65 Mcycles 25 A AC-3 <= 440 V || 1.4 Mcycles 40 A AC-1 <= 440 V || 1.65 Mcycles 25 A AC-3e <= 440 V

[Uc] Control Circuit Voltage:

240 V AC 50/60 Hz

Country of Origin:

France

Minimum Switching Voltage:

17 V for Signaling circuit
