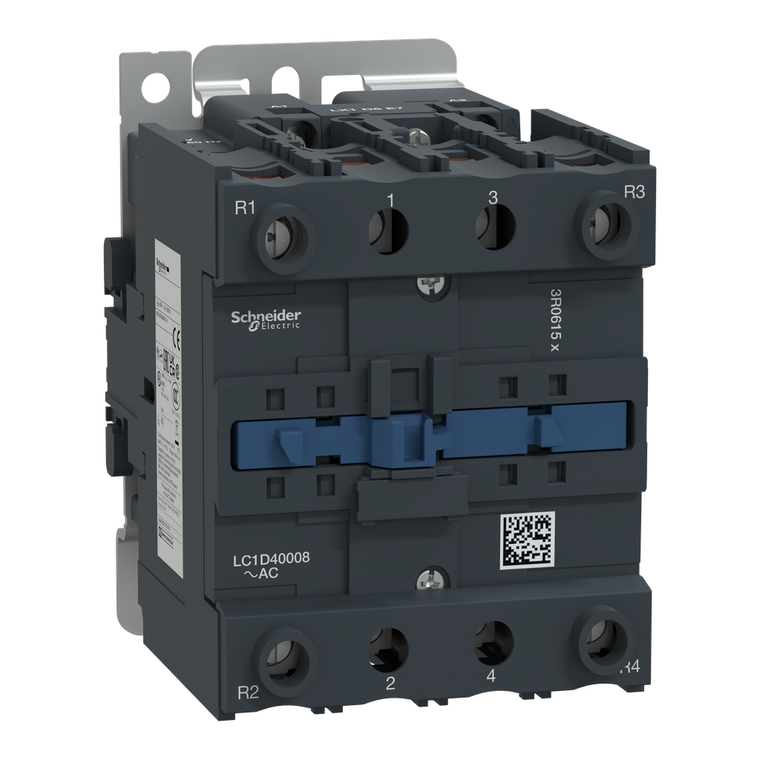

Schneider Electric LC1D40008G6 IEC contactor, TeSys Deca, nonreversing, 60A resistive, 4 pole, 2 NO and 2 NC, 120VAC 60Hz coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D40008G6 IEC contactor, TeSys Deca, nonreversing, 60A resistive, 4 pole, 2 NO and 2 NC, 120VAC 60Hz coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D40008G6

UPC:

MPN:

LC1D40008G6

Condition:

New

Range:

TeSys

Mounting Support:

plate || rail

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC

Weight:

1.44 kg

Net Weight:

1.44 kg

[Ie] Rated Operational Current:

60 A (at <60°C) at <= 440 V AC AC-1 for power circuit

Maximum Operating Rate:

3600 cyc/h 60°C

Connections - Terminals:

control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - c

Country of Origin:

United States

Power Dissipation Per Pole:

5.4 W AC-1

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Climatic Withstand:

IACS E10 exposure to damp heat

Toxic Heavy Metal Free:

Yes

Reach Free Of Svhc:

Yes

[Uc] Control Circuit Voltage:

120 V AC 60 Hz

Range Of Product:

TeSys Deca

Mercury Free:

Yes

Operating Altitude:

0...9842.52 ft (0...3000 m)

Hold-In Power Consumption In Va:

13-13 VA 60 Hz cos phi 0.3 (at 20°C)

Coil Technology:

without built-in suppressor module

Overvoltage Category:

III

Compatibility Code:

LC1D

Associated Fuse Rating:

80 A gG at <= 690 V coordination type 1 for power circuit || 80 A gG at <= 690 V coordination type 2 for power circuit

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

[Ui] Rated Insulation Voltage:

power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1

Permissible Ambient Air Temperature Around The Device:

-40-60°C || 60-70°C with derating

Pollution Degree:

3

Rohs Exemption Information:

Yes

Standards:

CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508

Irms Rated Making Capacity:

800 A at 440 V for power circuit conforming to IEC 60947

Tightening Torque:

control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 8 N.m screw clamp terminals 25-35 mm² hexagonal 4 mm || power circuit 5 N.m screw clamp terminals 1-25 mm² hex

Rated Breaking Capacity:

800 A at 440 V for power circuit conforming to IEC 60947

Mechanical Robustness:

shocks contactor open 8 Gn for 11 ms) || shocks contactor closed 10 Gn for 11 ms) || vibrations contactor opened 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz)

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Electrical Durability:

1.4 Mcycles 60 A AC-1 <= 440 V

Product Certifications:

CSA || CCC || BV || GL || DNV || UL || GOST || RINA || LROS (Lloyds register of shipping)

Average Impedance:

1.5 mOhm - Ith 60 A 50 Hz for power circuit

Height:

127 mm

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

Protective Treatment:

THIEC 60068-2-30

Fire Resistance:

850°C IEC 60695-2-1

Protective Cover:

without

Pole Contact Composition:

2 NO + 2 NC

Inrush Power In Va:

140-140 VA 60 Hz cos phi 0.75 (at 20°C)

Contactor Application:

resistive load

Ip Degree Of Protection:

IP20 front face IEC 60529

Device Short Name:

LC1D
