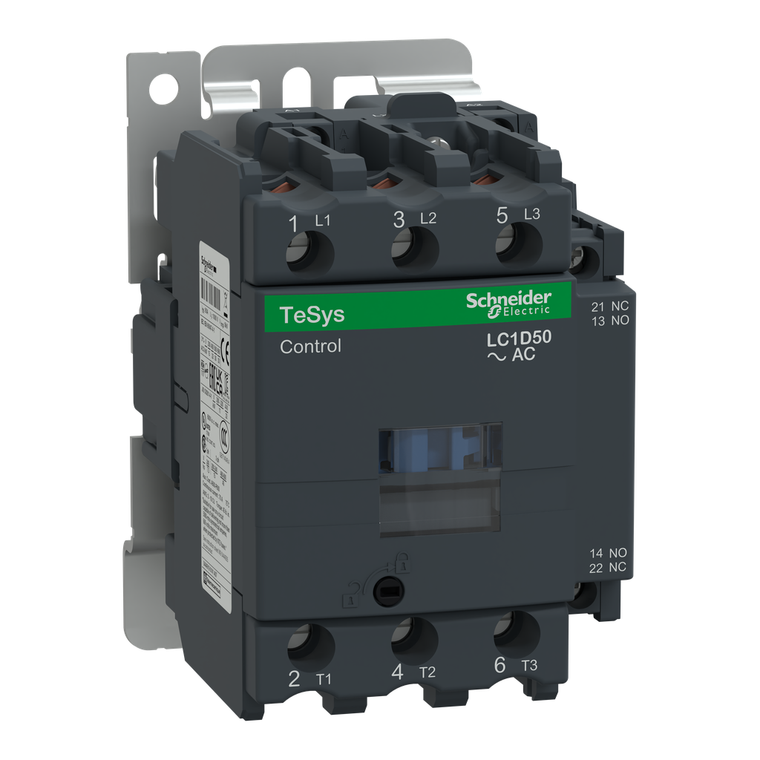

Schneider Electric LC1D50E7 IEC contactor, TeSys D, nonreversing, 50A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 48VAC 50/60Hz coil, open

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D50E7 IEC contactor, TeSys D, nonreversing, 50A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 48VAC 50/60Hz coil, open

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D50E7

UPC:

MPN:

LC1D50E7

Condition:

New

Hold-In Power Consumption In W:

7.4-7.4 W 20°C

Pole Contact Composition:

3 NO

Time Constant:

34 ms

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Fire Resistance:

850°C IEC 60695-2-1

Rated Breaking Capacity:

900 A at 440 V for power circuit conforming to IEC 60947

[Uc] Control Circuit Voltage:

48 V DC

Rohs Exemption Information:

Yes

Rated Operational Power In W:

12 W 48 V DC-13 10000000 cycles - control circuit || 38 W 48 V DC-13 3000000 cycles - control circuit

Non-Overlap Time:

1.5 ms on energisation between NC and NO contacts || 1.5 ms on de-energisation between NC and NO contacts

Inrush Power In W:

19-19 W 20°C)

Eu Rohs Directive:

Compliant

Operating Time:

12...26 ms closing || 50 ms closing || 20 ms opening

Associated Fuse Rating:

100 A gG at <= 690 V coordination type 1 for power circuit || 100 A gG at <= 690 V coordination type 2 for power circuit conforming to IEC 60947-5-1 || 10 A gG for control circuit conforming to IEC 60947-5-1

[Ui] Rated Insulation Voltage:

control circuit 600 V UL || power circuit 600 V CSA || power circuit 600 V UL IEC 60947-1 || control circuit 690 V IEC 60947-1 || power circuit 690 V CSA IEC 60947-1 || control circuit 600 V CSA

Range:

TeSys

Device Short Name:

LC1D

Product Or Component Type:

contactor

Maximum Operating Rate:

3600 cyc/h 60°C

Depth:

176 mm

Connections - Terminals:

control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigid without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cab

Contactor Application:

motor control

Irms Rated Making Capacity:

140 A AC for control circuit conforming to IEC 60947-5-1 || 900 A at 440 V for power circuit conforming to IEC 60947 || 250 A DC for control circuit conforming to IEC 60947-5-1

Standards:

UL 508 || IEC 60947-5-1 || EN 60947-4-1 || EN 60947-5-1 || CSA C22.2 No 14 || IEC 60947-4-1

Hold-In Power Consumption In Va:

15-15 VA 50 Hz cos phi 0.3 (at 20°C)

Inrush Power In Va:

160-160 VA cos phi 0.75 (at 20°C)

[Ith] Conventional Free Air Thermal Current:

80 A (at 60°C) for power circuit || 10 A (at 60°C) for control circuit

Minimum Switching Current:

5 mA for control circuit

Compatibility Code:

LC1D

Sustainable Offer Status:

Green Premium product

Product Certifications:

CCC || BV || CSA || GOST || UL || DNV || GL || LROS (Lloyds register of shipping) || UKCA

[Ie] Rated Operational Current:

80 A (at <60°C) at <= 440 V AC AC-1 for power circuit || 50 A (at <60°C) at <= 440 V AC AC-3e for power circuit || 50 A (at <60°C) at <= 440 V AC AC-3 for power circuit

Coil Technology:

built-in bidirectional peak limiting diode suppressor

Circularity Profile:

N/A

Control Circuit Type:

DC standard

Poles Description:

3P

Width:

85 mm

Climatic Withstand:

IACS E10 exposure to damp heat

Mounting Support:

rail || plate

Range Of Product:

TeSys Deca

Maximum Horse Power Rating:

7.5 hp at 230/240 V AC 60 Hz for 1 phase motors || 15 hp at 200/208 V AC 60 Hz for 3 phase motors || 15 hp at 230/240 V AC 60 Hz for 3 phase motors || 40 hp at 460/480 V AC 60 Hz for 3 phase motors || 40 hp at 575/600 V AC 60 Hz for 3 phase motors ||

Weight:

2.185 kg

Net Weight:

2.185 kg

Height:

127 mm

Warranty:

18 months

Reach Free Of Svhc:

Yes

Toxic Heavy Metal Free:

Yes

Country of Origin:

Czechia

Utilisation Category:

AC-2 || AC-4 || AC-3 || AC-3e

Auxiliary Contacts Type:

mirror contact 1 NC IEC 60947-4-1 || mechanically linked 1 NO + 1 NC IEC 60947-5-1
