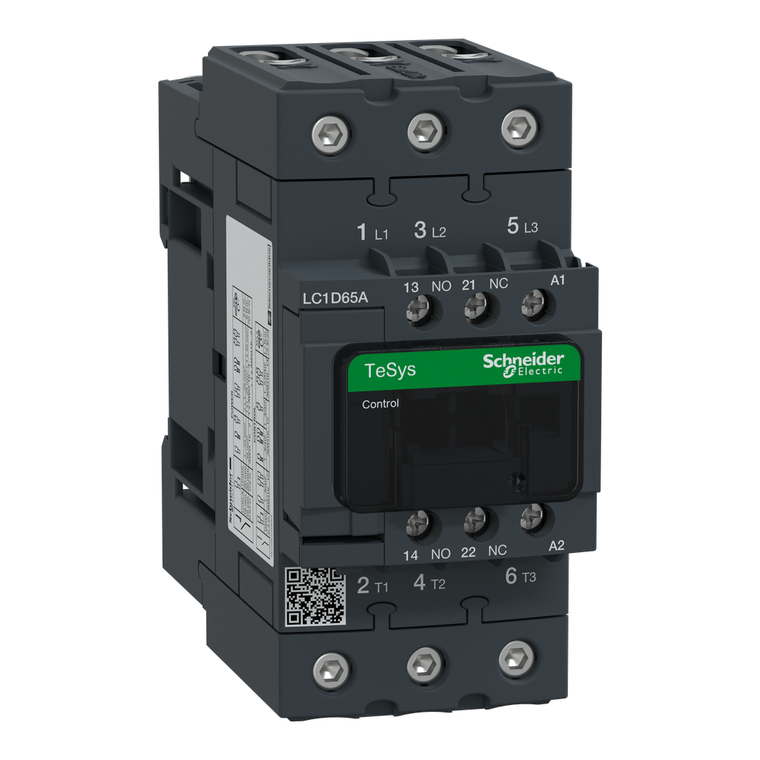

Schneider Electric LC1D65AB6 IEC contactor, TeSys D, nonreversing, 65A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VAC 60Hz coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D65AB6 IEC contactor, TeSys D, nonreversing, 65A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VAC 60Hz coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D65AB6

UPC:

MPN:

LC1D65AB6

Condition:

New

Standards:

EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 60947-4-1 || IEC 60335-2-40:Annex JJ || UL 60335-2-40:Annex JJ || IEC 60335-1:Clause 30.2

Reach Free Of Svhc:

Yes

[Ith] Conventional Free Air Thermal Current:

80 A (at 60°C) for power circuit || 10 A (at 60°C) for Signaling circuit

Auxiliary Contacts Type:

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Depth:

120 mm

Control Circuit Voltage Limits:

0.3...0.6 Uc -40-70°C drop-out AC 60 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 60 Hz

Eu Rohs Directive:

Compliant

Overvoltage Category:

III

Fire Resistance:

850°C IEC 60695-2-1

Inrush Power In Va:

140-140 VA 60 Hz cos phi 0.75 (at 20°C)

Toxic Heavy Metal Free:

Yes

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC

Rohs Exemption Information:

Yes

Width:

55 mm

Pvc Free:

Yes

Control Circuit Type:

AC 60 Hz

Poles Description:

3P

Irms Rated Making Capacity:

1000 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1

Circularity Profile:

ENVEOLI1503009EN

Contactor Application:

motor control || resistive load

Power Dissipation Per Pole:

9.6 W AC-1 || 6.3 W AC-3 || 6.3 W AC-3e

Net Weight:

0.86 kg

Coil Technology:

without built-in suppressor module

Ip Degree Of Protection:

IP20 front face IEC 60529

Operating Altitude:

0...9842.52 ft (0...3000 m)

Sustainable Offer Status:

Green Premium product

Climatic Withstand:

IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat

Utilisation Category:

AC-3 || AC-4 || AC-1 || AC-3e

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

[Icw] Rated Short-Time Withstand Current:

110 A 40°C - 10 min for power circuit || 260 A 40°C - 1 min for power circuit || 640 A 40°C - 10 s for power circuit || 900 A 40°C - 1 s for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms

Mechanical Robustness:

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Motor Power Kw:

11 kW at 400 V AC 50/60 Hz (AC-4) || 18.5 kW at 220...230 V AC 50/60 Hz (AC-3) || 30 kW at 380...400 V AC 50/60 Hz (AC-3) || 37 kW at 500 V AC 50/60 Hz (AC-3) || 37 kW at 660...690 V AC 50/60 Hz (AC-3) || 18.5 kW at 220...230 V AC 50/60 Hz (AC-3e) ||

Signaling Circuit Frequency:

25...400 Hz

Product Or Component Type:

contactor

Tightening Torque:

control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mm || power circuit 5 N.m EverLink BTR screw connecto

Product Certifications:

CCC || UL || CB Scheme || CSA || CE || UKCA || Marine || EAC

Range:

TeSys

Minimum Switching Current:

5 mA for Signaling circuit

[Ie] Rated Operational Current:

80 A (at <60°C) at <= 440 V AC AC-1 for power circuit || 65 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 65 A (at <60°C) at <= 440 V AC AC-3e for power circuit

Environmental Disclosure:

ENVPEP1503009EN

Flame Retardance:

V1 conforming to UL 94

Insulation Resistance:

> 10 MOhm for Signaling circuit

Protective Cover:

with

Permissible Ambient Air Temperature Around The Device:

-40-60°C || 60-70°C with derating

Non-Overlap Time:

1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Average Impedance:

1.5 mOhm - Ith 80 A 50 Hz for power circuit
