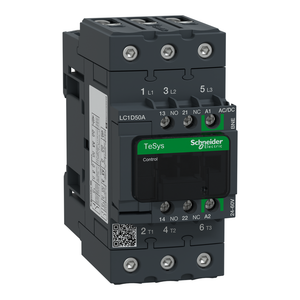

Schneider Electric LC1D65ABNE IEC contactor, TeSys Deca Green, nonreversing, 65A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24/60VAC/VDC coil, open

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D65ABNE IEC contactor, TeSys Deca Green, nonreversing, 65A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24/60VAC/VDC coil, open

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D65ABNE

UPC:

MPN:

LC1D65ABNE

Condition:

New

Weight:

1.002 kg

[Ie] Rated Operational Current:

80 A (at <60°C) at <= 440 V AC-1 for power circuit || 65 A (at <60°C) at <= 440 V AC-3 for power circuit || 65 A (at <60°C) at <= 440 V AC-3e for power circuit

Mechanical Durability:

6 Mcycles

[Uc] Control Circuit Voltage:

24...60 V AC 50/60 Hz || 24...60 V DC

Permissible Ambient Air Temperature Around The Device:

-40-60°C || 60-70°C with derating

Net Weight:

1.002 kg

Circularity Profile:

ENVEOLI1607010EN

Standards:

EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || IEC 60335-1

Mercury Free:

Yes

Average Impedance:

1.5 mOhm - Ith 80 A 50 Hz for power circuit

Non-Overlap Time:

1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Environmental Disclosure:

ENVPEP1607010EN

Protective Cover:

with

[Ui] Rated Insulation Voltage:

power circuit 690 V IEC 60947-4-1 || Signaling circuit 690 V IEC 60947-1

Motor Power Kw:

18.5 kW at 220...230 V AC 50 Hz (AC-3) || 30 kW at 380...400 V AC 50 Hz (AC-3) || 37 kW at 415 V AC 50 Hz (AC-3) || 37 kW at 440 V AC 50 Hz (AC-3) || 37 kW at 500 V AC 50 Hz (AC-3) || 37 kW at 660...690 V AC 50 Hz (AC-3) || 18.5 kW at 220...230 V AC

Mechanical Robustness:

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)

[Ith] Conventional Free Air Thermal Current:

80 A (at 60°C) for power circuit || 10 A (at 60°C) for Signaling circuit

Product Or Component Type:

contactor

Flame Retardance:

V1 conforming to UL 94

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz

Range Of Product:

TeSys Deca

Mounting Support:

rail || plate

Sustainable Offer Status:

Green Premium product

Auxiliary Contacts Type:

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Eu Rohs Directive:

Compliant with Exemptions

Minimum Switching Current:

5 mA for Signaling circuit

Minimum Switching Voltage:

17 V for Signaling circuit

Range:

TeSys || TeSys Deca

Overvoltage Category:

III

Signaling Circuit Frequency:

25...400 Hz

Inrush Power In W:

16-16 W 20°C)

Coil Technology:

built-in bidirectional peak limiting

Insulation Resistance:

> 10 MOhm for Signaling circuit

Maximum Operating Rate:

3600 cyc/h 60°C

Operating Time:

55...65 ms closing || 20...120 ms opening >= 17221) || 20...80 ms opening >= 18011)

Warranty:

18 months

Ip Degree Of Protection:

IP20 front face IEC 60529

Hold-In Power Consumption In W:

0.7-0.7 W 20°C

Contactor Application:

motor control || resistive load

Control Circuit Voltage Limits:

<= 0.1 Uc -40-70°C drop-out AC/DC || 0.85...1.1 Uc -40-60°C operational AC || 0.8...1.1 Uc -40-60°C operational DC || 1...1.1 Uc 60-70°C operational AC/DC

Rohs Exemption Information:

Yes

Depth:

120 mm

Irms Rated Making Capacity:

1000 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Compatibility Code:

LC1D

Hold-In Power Consumption In Va:

1-1 VA 50/60 Hz (at 20°C)
