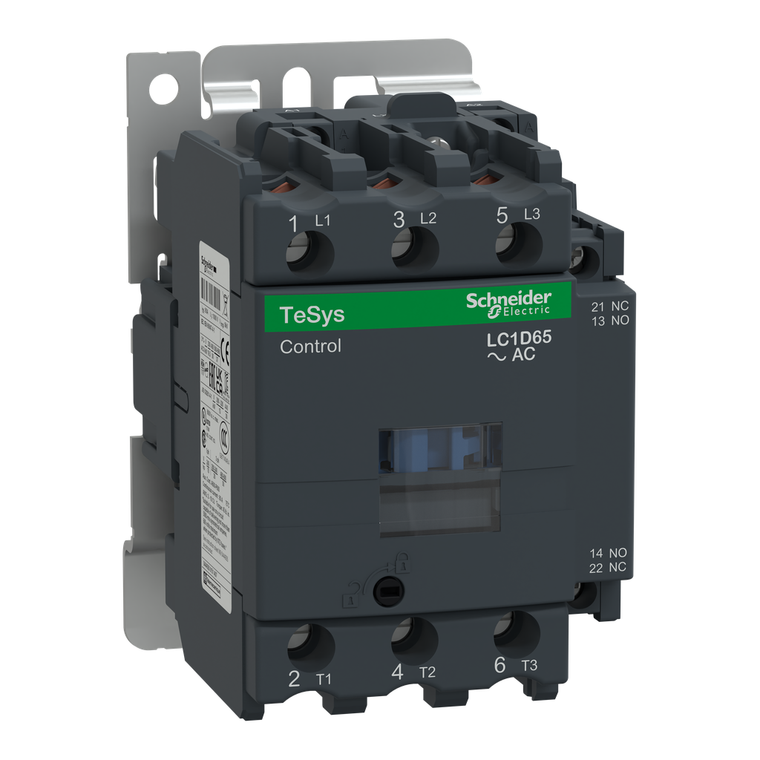

Schneider Electric LC1D65G6 IEC contactor, TeSys D, nonreversing, 65A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 60Hz coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D65G6 IEC contactor, TeSys D, nonreversing, 65A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 60Hz coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D65G6

UPC:

MPN:

LC1D65G6

Condition:

New

Average Impedance:

1 mOhm - Ith 80 A 50 Hz for power circuit

Power Dissipation Per Pole:

6.4 W AC-1

Mechanical Robustness:

shocks contactor opened 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms) || vibrations contactor opened 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz)

Height:

127 mm

Standards:

UL 508 || IEC 60947-5-1 || EN 60947-5-1 || CSA C22.2 No 14 || EN 60947-4-1 || IEC 60947-4-1

Country of Origin:

Mexico

Heat Dissipation:

4-5 W at 50/60 Hz for control circuit

Insulation Resistance:

> 10 MOhm for control circuit

Sustainable Offer Status:

Green Premium product

Environmental Disclosure:

ENVPEP110205EN

Operating Time:

12...26 ms closing || 4...19 ms opening

Compatibility Code:

LC1D

Utilisation Category:

AC-3 || AC-4 || AC-1 || AC-2 || AC-3e

Rohs Exemption Information:

Yes

Motor Power Kw:

30 kW at 440 V AC 50/60 Hz || 30 kW at 380...400 V AC 50/60 Hz || 37 kW at 500 V AC 50/60 Hz || 37 kW at 660...690 V AC 50/60 Hz || 18.5 kW at 220...230 V AC 50/60 Hz || 30 kW at 415 V AC 50/60 Hz || 37 kW at 1000 V AC 50/60 Hz

Rated Breaking Capacity:

1000 A at 440 V for power circuit conforming to IEC 60947

Flame Retardance:

V1 conforming to UL 94

Product Certifications:

RINA || DNV || LROS (pending) || CCC || GL || BV || UL || CSA || GOST || UKCA

Pvc Free:

Yes

[Ith] Conventional Free Air Thermal Current:

10 A (at 60°C) for control circuit || 80 A (at 60°C) for power circuit

Product Or Component Type:

contactor

Auxiliary Contact Composition:

1 NO + 1 NC

Minimum Switching Current:

5 mA for control circuit

Protective Cover:

with

Reach Free Of Svhc:

Yes

Weight:

1.4 kg

Toxic Heavy Metal Free:

Yes

Operating Altitude:

9842.52 ft (3000 m) without derating

Connections - Terminals:

control circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminal 2 1-4 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminal 1 1-2.5 mm² - cable s

Terminals Description Iso N°1:

(A1-A2)CO || (21-22)NC || (13-14)NO

Eu Rohs Directive:

Compliant

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz

Circularity Profile:

N/A

Hold-In Power Consumption In Va:

13-13 VA 50 Hz cos phi 0.3 (at 20°C) || 15-15 VA 60 Hz cos phi 0.3 (at 20°C)

Range Of Product:

TeSys Deca

Inrush Power In Va:

140-140 VA cos phi 0.75 (at 20°C) || 160-160 VA cos phi 0.75 (at 20°C)

Permissible Ambient Air Temperature Around The Device:

-5-60°C || -40-70°C at Uc

Contactor Application:

motor control || resistive load

Irms Rated Making Capacity:

140 A AC for control circuit conforming to IEC 60947-5-1 || 1000 A at 440 V for power circuit conforming to IEC 60947

Poles Description:

3P

Depth:

119 mm

Overvoltage Category:

III

Mercury Free:

Yes

[Ie] Rated Operational Current:

80 A (at <60°C) at <= 440 V AC AC-1 for power circuit || 65 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 65 A (at <60°C) at <= 440 V AC AC-3e for power circuit

Climatic Withstand:

IACS E10 exposure to damp heat

Maximum Horse Power Rating:

10 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA || 10 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to UL || 20 hp at 200/208 V AC 60 Hz for 3 phase motors conforming to CSA || 20 hp at 200/208 V AC 60 Hz for 3 phase motors

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947
