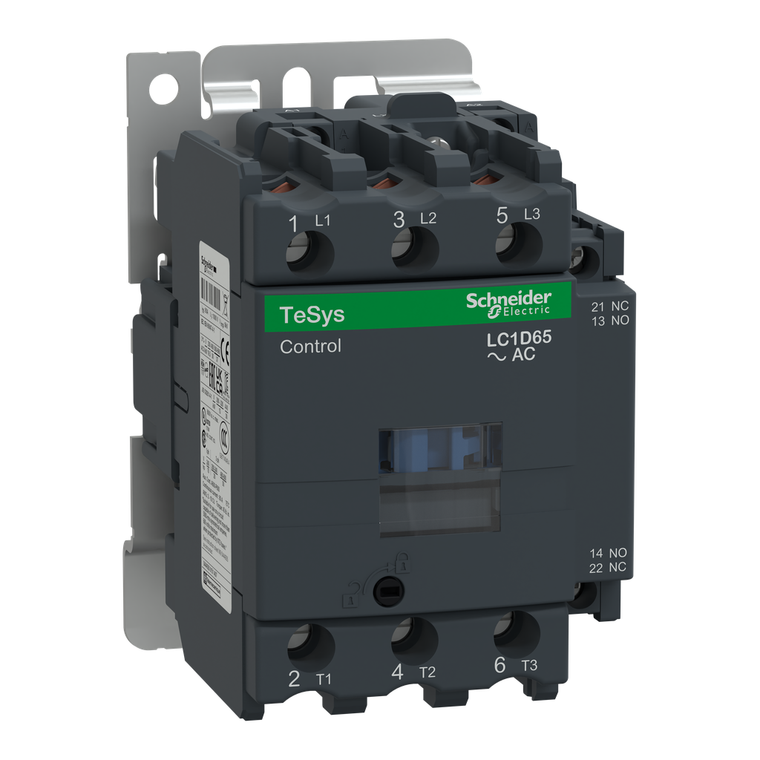

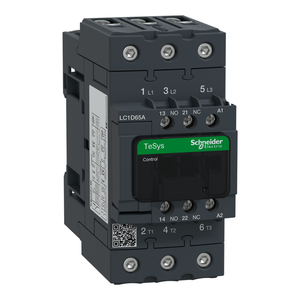

Schneider Electric LC1D65P7 IEC contactor, TeSys D, nonreversing, 65A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 230VAC 50/60Hz coil, open

Schneider Electric LC1D65P7 IEC contactor, TeSys D, nonreversing, 65A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 230VAC 50/60Hz coil, open

Schneider Electric
SKU:
LC1D65P7
$532.80
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 65A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 20HP at 200 to 208VAC, 20HP at 240VAC, 40HP at 480VAC and 50HP at 600VAC three phase. Contactor is also rated for 5HP at 115VAC and 10HP at 240VAC single phase. When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 125A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 230 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 1.90 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
Additional Information
Minimum Switching Current:
5 mA for control circuit
Net Weight:
2.185 kg
Pvc Free:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Connections - Terminals:
control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigid without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cab
Poles Description:
3P
Average Impedance:
1.5 Ohm - Ith 80 A 50 Hz for power circuit
Inrush Power In Va:
160-160 VA cos phi 0.75 (at 20°C) || 140-140 VA cos phi 0.75 (at 20°C)
Heat Dissipation:
4-5 W at 50/60 Hz for control circuit
Climatic Withstand:
IACS E10 exposure to damp heat
Warranty:
18 months
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Hold-In Power Consumption In Va:
15-15 VA 50 Hz cos phi 0.3 (at 20°C) || 13-13 VA 60 Hz cos phi 0.3 (at 20°C)
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Reach Free Of Svhc:
Yes
Maximum Horse Power Rating:
10 hp at 230/240 V AC 60 Hz for 1 phase motors || 20 hp at 200/208 V AC 60 Hz for 3 phase motors || 20 hp at 230/240 V AC 60 Hz for 3 phase motors || 40 hp at 460/480 V AC 60 Hz for 3 phase motors || 50 hp at 575/600 V AC 60 Hz for 3 phase motors ||
Power Dissipation Per Pole:
6.4 W AC-1 || 4.2 W AC-3e || 6.3 W AC-3 || 9.6 W AC-1
[Ie] Rated Operational Current:
65 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 65 A (at <60°C) at <= 440 V AC AC-3e for power circuit || 65 A (at <60°C) at 230 V AC AC-3 for power circuit || 80 A (at <60°C) at 230 V AC AC-1 for power circuit
Country of Origin:
Czechia
Tightening Torque:
control circuit 1.7 N.m screw clamp terminal Philips No 2 || power circuit 5 N.m screw terminal flat Ø 6 to Ø 8 mm || control circuit 1.7 N.m screw clamp terminal pozidriv No 2 || control circuit 1.7 N.m screw clamp terminal flat Ø 6 mm
Standards:
IEC 60947-5-1 || EN 60947-5-1 || IEC 60947-4-1 || EN 60947-4-1 || CSA C22.2 No 14
Auxiliary Contact Composition:
1 NO + 1 NC
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
[Uc] Control Circuit Voltage:
230 V AC 50/60 Hz
Eu Rohs Directive:
Compliant
Height:
122 mm
Circularity Profile:
N/A
Minimum Switching Voltage:
17 V for control circuit
Irms Rated Making Capacity:
140 A at 440 V AC for control circuit conforming to IEC 60947-5-1 || 140 A AC for control circuit conforming to IEC 60947-5-1 || 1000 A at 440 V for power circuit conforming to IEC 60947
Insulation Resistance:
> 10 MOhm for control circuit
Rated Breaking Capacity:
1000 kA at 440 V for power circuit conforming to IEC 60947
Auxiliary Contacts Type:
mirror contact 1 NC IEC 60947-4-1 || mechanically linked 1 NO + 1 NC IEC 60947-5-1
Protective Cover:
with
Fire Resistance:
850°C IEC 60695-2-1
Coil Technology:
without built-in
Depth:
118 mm
Pole Contact Composition:
3 NO
Mechanical Durability:
6000000 cycles
[Icw] Rated Short-Time Withstand Current:
520 A 40°C - 10 s for power circuit || 900 A 40°C - 1 s for power circuit
Non-Overlap Time:
1.5 ms on energisation between NC and NO contacts || 1.5 ms on de-energisation between NC and NO contacts
Contactor Application:
motor control || resistive load
Quantity Per Set:
set of 10
Control Circuit Type:
AC 50/60 Hz
Utilisation Category:
AC-2 || AC-4 || AC-1 || AC-3e
Weight:
2.185 kg
