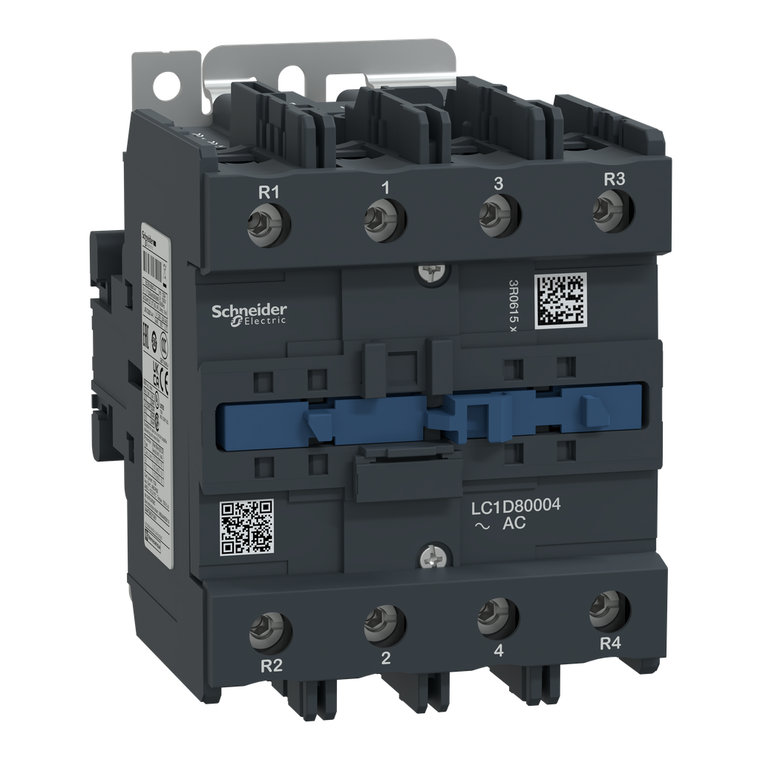

Schneider Electric LC1D80004G7 IEC contactor, TeSys Deca, nonreversing, 125A resistive, 4 pole, 4 NO, 120VAC 50/60Hz coil, open style

Schneider Electric LC1D80004G7 IEC contactor, TeSys Deca, nonreversing, 125A resistive, 4 pole, 4 NO, 120VAC 50/60Hz coil, open style

Schneider Electric
SKU:
LC1D80004G7
$526.40
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 110A resistive load rating. Contactor is supplied with a 120 VAC 50/60 Hz coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.78 inches wide and 4.92 inches deep. It weighs 3.88 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
Additional Information
Inrush Power In Va:
245-245 VA 60 Hz cos phi 0.75 (at 20°C) || 245-245 VA 50 Hz cos phi 0.75 (at 20°C)
Tightening Torque:
control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.2 N.m screw clamp terminals Philips No 2 || power circuit 12 N.m connector flat Ø 6 to Ø 8 mm || power circuit 12 N.m connector hexagonal 4 mm || control circuit 1.2 N.
Compatibility Code:
LC1D
Reach Regulation:
Free of Substances of Very High Concern above the threshold
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947
Permissible Ambient Air Temperature Around The Device:
-40-60°C || 60-70°C with derating
Irms Rated Making Capacity:
1100 A at 440 V for power circuit conforming to IEC 60947
Product Or Component Type:
contactor
Mechanical Durability:
4 Mcycles
Pollution Degree:
3
Connections - Terminals:
control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - ca
Safety Reliability Level:
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Pvc Free:
Yes
Coil Technology:
without built-in suppressor module
Environmental Disclosure:
ENVPEP110205EN
[Ui] Rated Insulation Voltage:
power circuit 600 V CSA || power circuit 600 V UL || power circuit 1000 V IEC 60947-4-1
[Ue] Rated Operational Voltage:
power circuit <= 300 V DC 25...400 Hz || power circuit <= 690 V AC
Protective Cover:
without
Mercury Free:
Yes
Electrical Durability:
0.8 Mcycles 125 A AC-1 <= 440 V
Fire Resistance:
850°C IEC 60695-2-1
Utilisation Category:
AC-1 || AC-3 || AC-3e || AC-4
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Weight:
1.76 kg
[Ie] Rated Operational Current:
125 A (at <60°C) at <= 440 V AC AC-1 for power circuit || 80 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 80 A (at <60°C) at <= 440 V AC AC-3e for power circuit || 55 A (at <60°C) at <= 400 V AC AC-4 for power circuit
Height:
127 mm
Rohs Exemption Information:
Yes
[Ith] Conventional Free Air Thermal Current:
125 A (at 60°C) for power circuit
Motor Power Kw:
22 kW at 220...230 V AC 50/60 Hz || 37 kW at 380...400 V AC 50/60 Hz || 45 kW at 660...690 V AC 50/60 Hz || 55 kW at 500 V AC 50/60 Hz || 45 kW at 415...440 V AC 50/60 Hz
Circularity Profile:
N/A
Width:
96 mm
Hold-In Power Consumption In Va:
26-26 VA 60 Hz cos phi 0.3 (at 20°C) || 26-26 VA 50 Hz cos phi 0.3 (at 20°C)
Country of Origin:
France
Rated Breaking Capacity:
1100 A at 440 V for power circuit conforming to IEC 60947
Overvoltage Category:
III
Power Dissipation Per Pole:
12.5 W AC-1
Device Short Name:
LC1D
Ip Degree Of Protection:
IP20 front face IEC 60529
Mounting Support:
rail || plate
Flame Retardance:
V1 conforming to UL 94
Sustainable Offer Status:
Green Premium product
Protective Treatment:
THIEC 60068-2-30
Operating Altitude:
0...9842.52 ft (0...3000 m)
Mechanical Robustness:
vibrations contactor open 2 Gn, 5...300 Hz) || shocks contactor open 8 Gn for 11 ms) || vibrations contactor closed 3 Gn, 5...300 Hz) || shocks contactor closed 10 Gn for 11 ms)
[Icw] Rated Short-Time Withstand Current:
640 A 40°C - 10 s for power circuit || 990 A 40°C - 1 s for power circuit || 135 A 40°C - 10 min for power circuit || 320 A 40°C - 1 min for power circuit
Toxic Heavy Metal Free:
Yes
Control Circuit Type:
AC 50/60 Hz
Product Certifications:
CCC || UL || CB Scheme || CSA || CE || UKCA || Marine || EAC
Eu Rohs Directive:
Compliant
