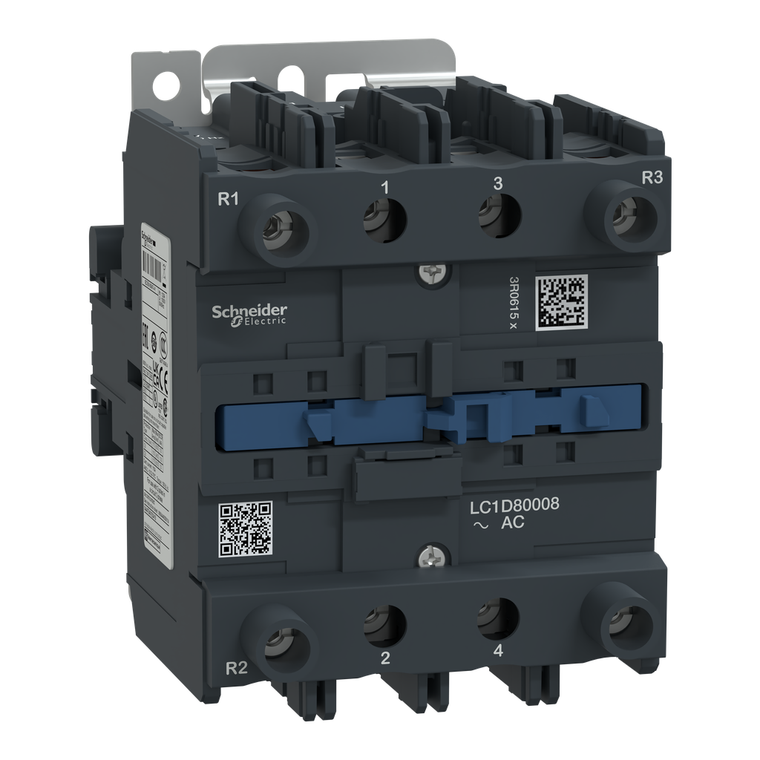

Schneider Electric LC1D80008M7 IEC contactor, TeSys Deca, nonreversing, 125A resistive, 4 pole, 2 NO and 2 NC, 220VAC 50/60Hz coil, open style
Schneider Electric
$518.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LC1D80008M7 IEC contactor, TeSys Deca, nonreversing, 125A resistive, 4 pole, 2 NO and 2 NC, 220VAC 50/60Hz coil, open style
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has two normally open and two normally closed power contacts. Power contacts have a 110A resistive load rating. Contactor is supplied with a 220 VAC 50/60 Hz coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.78 inches wide and 5.51 inches deep. It weighs 4.06 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
- Overvoltage Category:
- III
- Control Circuit Type:
- AC 50/60 Hz
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Tightening Torque:
- control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.2 N.m screw clamp terminals Philips No 2 || power circuit 12 N.m connector flat Ø 6 to Ø 8 mm || power circuit 12 N.m connector hexagonal 4 mm || control circuit 1.2 N.
- [Uc] Control Circuit Voltage:
- 220 V AC 50/60 Hz
- Mounting Support:
- plate || rail
- Inrush Power In Va:
- 245-245 VA 60 Hz cos phi 0.75 (at 20°C) || 245-245 VA 50 Hz cos phi 0.75 (at 20°C)
- Connections - Terminals:
- control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - ca
- Environmental Disclosure:
- ENVPEP110205EN
- Permissible Ambient Air Temperature Around The Device:
- -40-60°C || 60-70°C with derating
- Operating Altitude:
- 0...9842.52 ft (0...3000 m)
- Coil Technology:
- without built-in suppressor module
- [Ith] Conventional Free Air Thermal Current:
- 125 A (at 60°C) for power circuit
- [Ui] Rated Insulation Voltage:
- power circuit 600 V CSA || power circuit 600 V UL || power circuit 1000 V IEC 60947-4-1
- Irms Rated Making Capacity:
- 1100 A at 440 V for power circuit conforming to IEC 60947
- Hold-In Power Consumption In Va:
- 26-26 VA 60 Hz cos phi 0.3 (at 20°C) || 26-26 VA 50 Hz cos phi 0.3 (at 20°C)
- Ip Degree Of Protection:
- IP20 front face IEC 60529
- Power Dissipation Per Pole:
- 12.5 W AC-1
- Reach Free Of Svhc:
- Yes
- Rated Breaking Capacity:
- 1100 A at 440 V for power circuit conforming to IEC 60947
- Sustainable Offer Status:
- Green Premium product
- Fire Resistance:
- 850°C IEC 60695-2-1
- Associated Fuse Rating:
- 200 A gG at <= 690 V coordination type 1 for power circuit || 160 A gG at <= 690 V coordination type 2 for power circuit
- Mercury Free:
- Yes
- Pollution Degree:
- 3
- Warranty:
- 18 months
- Product Certifications:
- CCC || UL || CB Scheme || CSA || CE || UKCA || Marine || EAC
- Climatic Withstand:
- IACS E10 exposure to damp heat
- Contactor Application:
- resistive load
- Eu Rohs Directive:
- Compliant
- Poles Description:
- 4P
- Range:
- TeSys
- Range Of Product:
- TeSys Deca
- [Ie] Rated Operational Current:
- 125 A (at <60°C) at <= 440 V AC AC-1 for power circuit
- Control Circuit Voltage Limits:
- 0.85...1.1 Uc -40-55°C operational AC 60 Hz || 0.3...0.6 Uc -40-55°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-55°C operational AC 50 Hz
- Depth:
- 140 mm
- Flame Retardance:
- V1 conforming to UL 94
- Standards:
- EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 60947-4-1 || IEC 60335-2-40:Annex JJ || UL 60335-2-40:Annex JJ || IEC 60335-1:Clause 30.2
- Rohs Exemption Information:
- Yes
- Country of Origin:
- Czechia
- Net Weight:
- 1.84 kg
- Sustainable Packaging:
- Yes
- [Ue] Rated Operational Voltage:
- power circuit <= 690 V AC 25...400 Hz
- Protective Cover:
- without
- Device Short Name:
- LC1D
- Maximum Operating Rate:
- 3600 cyc/h 60°C
- Toxic Heavy Metal Free:
- Yes
