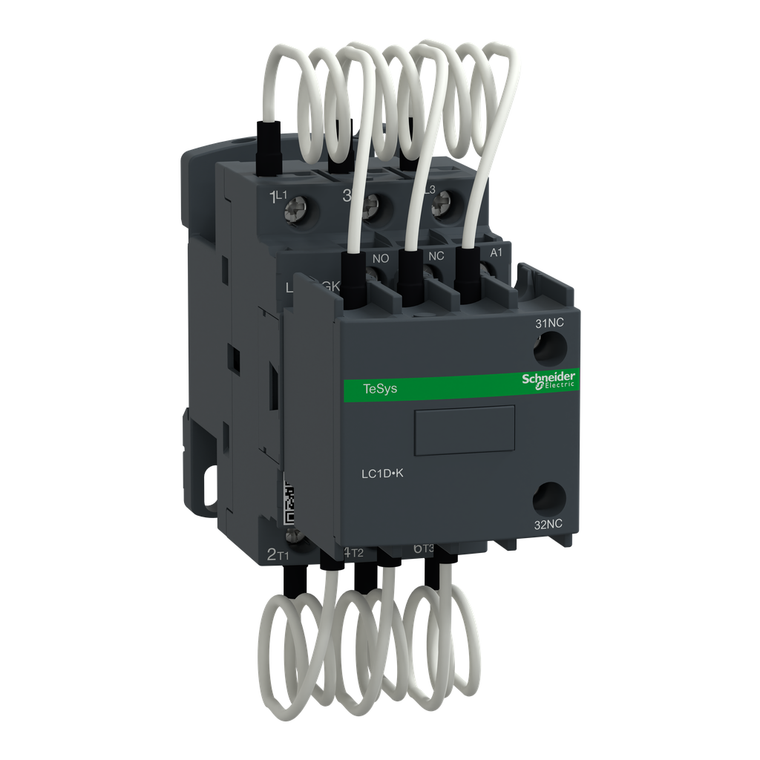

Schneider Electric LC1DGKM7 Capacitor contactor, TeSys Deca, 16.7 kVAR at 400 V/50 Hz, coil 220 V AC 50/60 Hz

(No reviews yet) Write a Review
SKU:
LC1DGKM7
MPN:
LC1DGKM7
Condition:
New
Auxiliary Contacts Type:
mechanically linked 1 NO + 2 NC IEC 60947-5-1
Contactor Application:
power factor correction
[Uc] Control Circuit Voltage:
220 V AC 50/60 Hz
[Ue] Rated Operational Voltage:
power circuit 690 V AC 50/60 Hz
Product Name:
TeSys LC1D.K || TeSys Deca
Environmental Disclosure:
ENVPEP111274EN
Reach Free Of Svhc:
Yes
Country of Origin:
France
Depth:
127 mm
Range:
TeSys || TeSys Deca
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Circularity Profile:
N/A
Electrical Durability:
300000 cycles 400 V || 200000 cycles 690 V
Device Short Name:
LC1DGK
Rohs Exemption Information:
Yes
Toxic Heavy Metal Free:
Yes
Maximum Operating Rate:
240 cyc/h
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Weight:
0.6 kg
Ambient Air Temperature For Operation:
-5-60°C
Pole Contact Composition:
3 NO
Mounting Support:
DIN rail || plate
Product Or Component Type:
capacitor duty contactor
Product Certifications:
IECEE CB Scheme || UKCA
Sustainable Offer Status:
Green Premium product
Reactive Power Rating:
9.5 kvar 230-230 V AC 50 Hz 60°C || 16.7 kvar 400-400 V AC 50 Hz 60°C || 18 kvar 440-440 V AC 50 Hz 60°C || 28.5 kvar 690-690 V AC 50 Hz 60°C
Utilisation Category:
AC-6b
Net Weight:
0.6 kg
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty:
18 months
Tightening Torque:
control circuit 1.7 N.m screw clamp terminals || power circuit 2.5 N.m screw clamp terminals
Mercury Free:
Yes
Control Circuit Type:
AC 50/60 Hz
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive:
Compliant
Ambient Air Temperature For Storage:
-60-80°C
Operating Altitude:
0...9842.52 ft (0...3000 m)
Standards:
EN/IEC 60947-1 || EN/IEC 60947-4-1 || IEC 60335-1
Device Application:
control
Poles Description:
3P
Connections - Terminals:
control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable en
Auxiliary Contact Composition:
1 NO + 2 NC instantaneous
Ip Degree Of Protection:
IP20 front face IEC 60529
$571.20

Description

TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 16.7kVAR@400V 50Hz (28.5kVAR@690V). It provides a 220V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).
