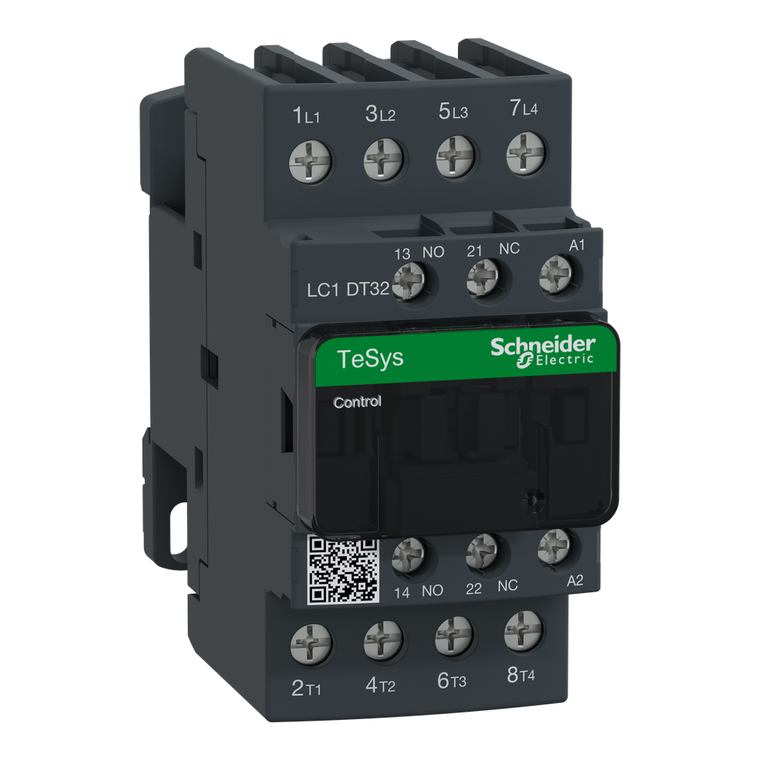

Schneider Electric LC1DT32B7 IEC contactor, TeSys Deca, nonreversing, 32A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style
Schneider Electric
$189.60
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LC1DT32B7 IEC contactor, TeSys Deca, nonreversing, 32A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 32A resistive load rating. Contactor is supplied with a 24 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.58 inches tall, 1.77 inches wide and 3.90 inches deep. It weighs 0.94 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
- Depth:
- 99 mm
- Device Short Name:
- LC1D
- Operating Time:
- 4...19 ms opening || 12...22 ms closing
- Mechanical Durability:
- 15 Mcycles
- Maximum Operating Rate:
- 3600 cyc/h 60°C
- Pvc Free:
- Yes
- Protective Treatment:
- THIEC 60068-2-30
- Non-Overlap Time:
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Height:
- 91 mm
- Eu Rohs Directive:
- Compliant
- Standards:
- CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
- Ip Degree Of Protection:
- IP20 front face IEC 60529
- Pole Contact Composition:
- 4 NO
- Auxiliary Contacts Type:
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- Sustainable Offer Status:
- Green Premium product
- Permissible Ambient Air Temperature Around The Device:
- -40-60°C || 60-70°C with derating
- Product Certifications:
- DNV || GL || CCC || LROS (Lloyds register of shipping) || RINA || BV || GOST || UL || CSA || CB
- Product Or Component Type:
- contactor
- Utilisation Category:
- AC-1 || AC-3 || AC-3e || AC-4
- Minimum Switching Voltage:
- 17 V for Signaling circuit
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947
- [Ui] Rated Insulation Voltage:
- power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL || power circuit 690 V IEC 60947-4-1
- Heat Dissipation:
- 2-3 W at 50/60 Hz
- Control Circuit Voltage Limits:
- 0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz
- Auxiliary Contact Composition:
- 1 NO + 1 NC
- Irms Rated Making Capacity:
- 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 300 A at 440 V for power circuit conforming to IEC 60947
- Overvoltage Category:
- III
- Electrical Durability:
- 1 Mcycles 32 A AC-1 <= 440 V
- Rated Breaking Capacity:
- 300 A at 440 V for power circuit conforming to IEC 60947
- Operating Altitude:
- 0...9842.52 ft (0...3000 m)
- Contactor Application:
- resistive load
- Flame Retardance:
- V1 conforming to UL 94
- Control Circuit Type:
- AC 50/60 Hz
- Hold-In Power Consumption In Va:
- 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20°C) || 7-7 VA 50 Hz cos phi 0.3 (at 20°C)
- Compatibility Code:
- LC1D
- [Icw] Rated Short-Time Withstand Current:
- 40 A 40°C - 10 min for power circuit || 84 A 40°C - 1 min for power circuit || 145 A 40°C - 10 s for power circuit || 240 A 40°C - 1 s for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms fo
- Protective Cover:
- with
- Safety Reliability Level:
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Weight:
- 0.425 kg
- Range:
- TeSys || TeSys Deca
- [Ie] Rated Operational Current:
- 32 A (at <60°C) at <= 440 V AC AC-1 for power circuit
- Toxic Heavy Metal Free:
- Yes
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ue] Rated Operational Voltage:
- power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
- Inrush Power In Va:
- 70-70 VA 60 Hz cos phi 0.75 (at 20°C) || 70-70 VA 50 Hz cos phi 0.75 (at 20°C)
