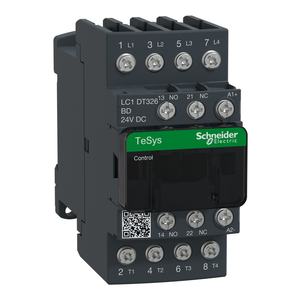

Schneider Electric LC1DT32BD IEC contactor, TeSys Deca, nonreversing, 32A resistive, 4 pole, 4 NO, 24VDC coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1DT32BD IEC contactor, TeSys Deca, nonreversing, 32A resistive, 4 pole, 4 NO, 24VDC coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1DT32BD

UPC:

MPN:

LC1DT32BD

Condition:

New

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Insulation Resistance:

> 10 MOhm for Signaling circuit

Tightening Torque:

control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 1.8 N.m screw clamp terminals flat Ø 6 mm || pow

[Ith] Conventional Free Air Thermal Current:

10 A (at 60°C) for Signaling circuit || 32 A (at 60°C) for power circuit

Range Of Product:

TeSys Deca

Country of Origin:

United States

Fire Resistance:

850°C IEC 60695-2-1

Mercury Free:

Yes

Standards:

CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1

Protective Cover:

with

Environmental Disclosure:

ENVPEP110230EN

Signaling Circuit Frequency:

25...400 Hz

Pvc Free:

Yes

Power Dissipation Per Pole:

2.5 W AC-1

Mechanical Robustness:

vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor closed 15 Gn for 11 ms) || shocks contactor open 8 Gn for 11 ms)

Electrical Durability:

1 Mcycles 32 A AC-1 <= 440 V

Poles Description:

4P

Inrush Power In W:

5.4-5.4 W 20°C)

Range:

TeSys || TeSys Deca

Operating Time:

20±20 % ms opening || 63±15 % ms closing

Compatibility Code:

LC1D

Warranty:

18 months

Net Weight:

0.425 kg

Auxiliary Contact Composition:

1 NO + 1 NC

Depth:

107 mm

Protective Treatment:

THIEC 60068-2-30

[Ui] Rated Insulation Voltage:

power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL || power circuit 690 V IEC 60947-4-1

Eu Rohs Directive:

Compliant with Exemptions

Control Circuit Type:

DC standard

Maximum Operating Rate:

3600 cyc/h 60°C

Rated Breaking Capacity:

300 A at 440 V for power circuit conforming to IEC 60947

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Operating Altitude:

0...9842.52 ft (0...3000 m)

Hold-In Power Consumption In W:

5.4-5.4 W 20°C

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC

Control Circuit Voltage Limits:

0.1...0.25 Uc -40-70°C drop-out DC || 0.7...1.25 Uc -40-60°C operational DC || 1...1.25 Uc 60-70°C operational DC

Circularity Profile:

ENVEOLI1102030EN

Time Constant:

28 ms

Utilisation Category:

AC-1 || AC-3 || AC-3e || AC-4

Connections - Terminals:

control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - c

Irms Rated Making Capacity:

140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 300 A at 440 V for power circuit conforming to IEC 60947

Associated Fuse Rating:

10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 50 A gG at <= 690 V coordination type 1 for power circuit || 35 A gG at <= 690 V coordination type 2 for power circuit

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

Weight:

0.425 kg

Minimum Switching Voltage:

17 V for Signaling circuit
