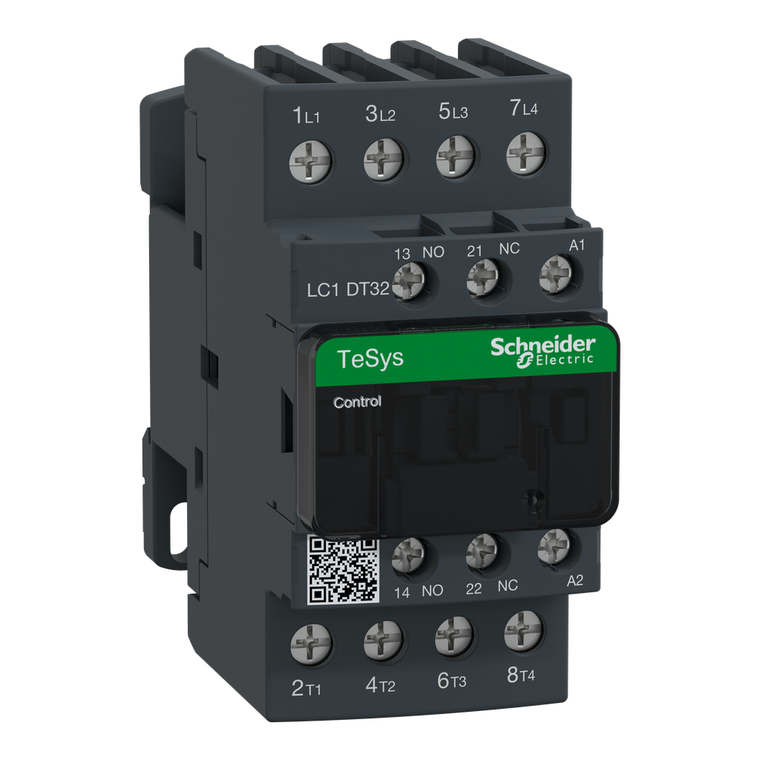

Schneider Electric LC1DT32M7 IEC contactor, TeSys Deca, nonreversing, 32A resistive, 4 pole, 4 NO, 220VAC 50/60Hz coil, open style

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1DT32M7 IEC contactor, TeSys Deca, nonreversing, 32A resistive, 4 pole, 4 NO, 220VAC 50/60Hz coil, open style

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1DT32M7

UPC:

MPN:

LC1DT32M7

Condition:

New

Product Certifications:

DNV || GL || CCC || LROS (Lloyds register of shipping) || RINA || BV || GOST || UL || CSA || CB

Irms Rated Making Capacity:

140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 300 A at 440 V for power circuit conforming to IEC 60947

Pollution Degree:

3

Overvoltage Category:

III

Poles Description:

4P

Pole Contact Composition:

4 NO

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Average Impedance:

2.5 mOhm - Ith 32 A 50 Hz for power circuit

Product Or Component Type:

contactor

Environmental Disclosure:

ENVPEP1501004

Country of Origin:

Indonesia

Tightening Torque:

control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 1.8 N.m screw clamp terminals flat Ø 6 mm || pow

Power Dissipation Per Pole:

2.5 W AC-1

Sustainable Offer Status:

Green Premium product

Rated Breaking Capacity:

300 A at 440 V for power circuit conforming to IEC 60947

Maximum Operating Rate:

3600 cyc/h 60°C

[Ui] Rated Insulation Voltage:

power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL || power circuit 690 V IEC 60947-4-1

Hold-In Power Consumption In Va:

7.5-7.5 VA 60 Hz cos phi 0.3 (at 20°C) || 7-7 VA 50 Hz cos phi 0.3 (at 20°C)

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC

[Uc] Control Circuit Voltage:

220 V AC 50/60 Hz

Contactor Application:

resistive load

Electrical Durability:

1 Mcycles 32 A AC-1 <= 440 V

Depth:

99 mm

Range:

TeSys || TeSys Deca

Operating Altitude:

0...9842.52 ft (0...3000 m)

Width:

45 mm

Warranty:

18 months

Climatic Withstand:

IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat

Rohs Exemption Information:

Yes

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Eu Rohs Directive:

Compliant

Mechanical Durability:

15 Mcycles

Auxiliary Contacts Type:

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Protective Treatment:

THIEC 60068-2-30

Control Circuit Type:

AC 50/60 Hz

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

Ip Degree Of Protection:

IP20 front face IEC 60529

Mounting Support:

plate || rail

Circularity Profile:

ENVEOLI1501004

Control Circuit Voltage Limits:

0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz

Fire Resistance:

850°C IEC 60695-2-1

Toxic Heavy Metal Free:

Yes

Minimum Switching Current:

5 mA for Signaling circuit

Signaling Circuit Frequency:

25...400 Hz

[Ie] Rated Operational Current:

32 A (at <60°C) at <= 440 V AC AC-1 for power circuit

Utilisation Category:

AC-1 || AC-3 || AC-3e || AC-4
