Schneider Electric LC1DT40B7 IEC contactor, TeSys Deca, nonreversing, 40A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style
Schneider Electric
$235.56
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

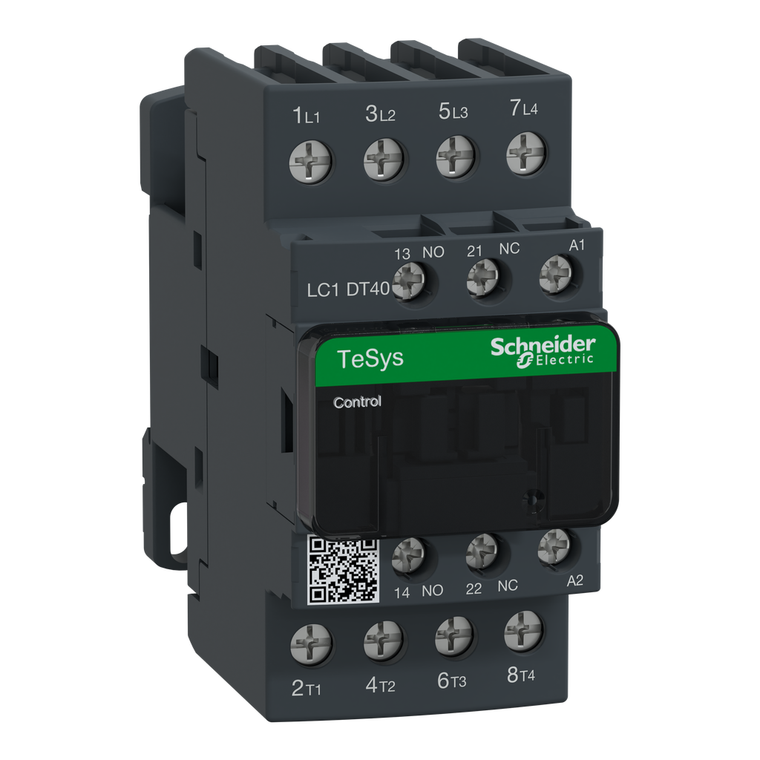

Schneider Electric LC1DT40B7 IEC contactor, TeSys Deca, nonreversing, 40A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 40A resistive load rating. Contactor is supplied with a 24 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.58 inches tall, 1.77 inches wide and 3.90 inches deep. It weighs 0.94 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
- Country of Origin:
- United States
- Rated Breaking Capacity:
- 450 A at 440 V for power circuit conforming to IEC 60947
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Tightening Torque:
- control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 1.8 N.m screw clamps terminals flat Ø 6 mm || po
- Minimum Switching Current:
- 5 mA for Signaling circuit
- [Ith] Conventional Free Air Thermal Current:
- 10 A (at 60°C) for Signaling circuit || 40 A (at 60°C) for power circuit
- Auxiliary Contacts Type:
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- [Icw] Rated Short-Time Withstand Current:
- 50 A 40°C - 10 min for power circuit || 120 A 40°C - 1 min for power circuit || 240 A 40°C - 10 s for power circuit || 380 A 40°C - 1 s for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms f
- Poles Description:
- 4P
- Permissible Ambient Air Temperature Around The Device:
- -40-60°C || 60-70°C with derating
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP110230EN
- Device Short Name:
- LC1D
- Eu Rohs Directive:
- Compliant
- Contactor Application:
- resistive load
- Non-Overlap Time:
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Irms Rated Making Capacity:
- 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 450 A at 440 V for power circuit conforming to IEC 60947
- Mechanical Robustness:
- vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor closed 15 Gn for 11 ms) || shocks contactor open 8 Gn for 11 ms)
- Fire Resistance:
- 850°C IEC 60695-2-1
- Net Weight:
- 0.425 kg
- Product Or Component Type:
- contactor
- Control Circuit Voltage Limits:
- 0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz
- Circularity Profile:
- ENVEOLI1102030EN
- Minimum Switching Voltage:
- 17 V for Signaling circuit
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Signaling Circuit Frequency:
- 25...400 Hz
- Associated Fuse Rating:
- 10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 63 A gG at <= 690 V coordination type 1 for power circuit || 40 A gG at <= 690 V coordination type 2 for power circuit
- [Ie] Rated Operational Current:
- 40 A (at <60°C) at <= 440 V AC AC-1 for power circuit
- Pollution Degree:
- 3
- Range Of Product:
- TeSys Deca
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Pole Contact Composition:
- 4 NO
- Climatic Withstand:
- IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
- Standards:
- CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
- Coil Technology:
- without built-in suppressor module
- Maximum Operating Rate:
- 3600 cyc/h 60°C
- Product Certifications:
- DNV || GL || CCC || LROS (Lloyds register of shipping) || RINA || BV || GOST || UL || CSA || CB
- [Ui] Rated Insulation Voltage:
- power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL || power circuit 690 V IEC 60947-4-1
- Protective Cover:
- with
- Range:
- TeSys || TeSys Deca
- Ip Degree Of Protection:
- IP20 front face IEC 60529
- Operating Altitude:
- 0...9842.52 ft (0...3000 m)
- Pvc Free:
- Yes
- Mounting Support:
- rail || plate
