Schneider Electric LC1DT60AF7 IEC contactor, TeSys Deca, nonreversing, 60A resistive, 4 pole, 4 NO, 110VAC 50/60Hz coil, open style
Schneider Electric
$353.16
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LC1DT60AF7 IEC contactor, TeSys Deca, nonreversing, 60A resistive, 4 pole, 4 NO, 110VAC 50/60Hz coil, open style

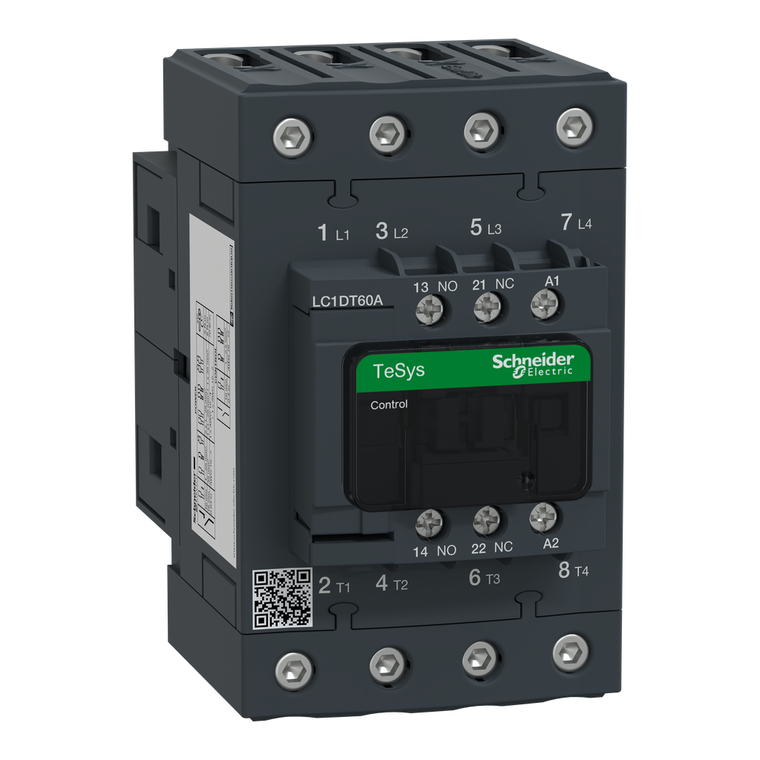

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 60A resistive load rating. Contactor is supplied with a 110 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.76 inches wide and 4.72 inches deep. It weighs 2.40 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
- [Ith] Conventional Free Air Thermal Current:
- 10 A (at 60°C) for Signaling circuit || 60 A (at 60°C) for power circuit
- Auxiliary Contact Composition:
- 1 NO + 1 NC
- Contactor Application:
- resistive load
- Protective Treatment:
- THIEC 60068-2-30
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947
- Pole Contact Composition:
- 4 NO
- Tightening Torque:
- control circuit 1.7 N.m EverLink BTR screw connectors flat Ø 6 mm || control circuit 1.7 N.m EverLink BTR screw connectors Philips No 2 || power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mm || power circuit 5 N.m EverLink BT
- Hold-In Power Consumption In Va:
- 13-13 VA 60 Hz cos phi 0.3 (at 20°C) || 15-15 VA 50 Hz cos phi 0.3 (at 20°C)
- Weight:
- 1.09 kg
- Toxic Heavy Metal Free:
- Yes
- Mercury Free:
- Yes
- Safety Reliability Level:
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Compatibility Code:
- LC1D
- Coil Technology:
- without built-in suppressor module
- Control Circuit Voltage Limits:
- 0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz
- Irms Rated Making Capacity:
- 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 800 A at 440 V for power circuit conforming to IEC 60947
- Fire Resistance:
- 850°C IEC 60695-2-1
- Flame Retardance:
- V1 conforming to UL 94
- Country of Origin:
- Indonesia
- Rated Breaking Capacity:
- 800 A at 440 V for power circuit conforming to IEC 60947
- Pvc Free:
- Yes
- Mechanical Durability:
- 6 Mcycles
- [Ie] Rated Operational Current:
- 60 A (at <60°C) at <= 440 V AC AC-1 for power circuit
- Device Short Name:
- LC1D
- Signaling Circuit Frequency:
- 25...400 Hz
- Connections - Terminals:
- control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - c
- Utilisation Category:
- AC-1
- Maximum Operating Rate:
- 3600 cyc/h 60°C
- Permissible Ambient Air Temperature Around The Device:
- -40-60°C || 60-70°C with derating
- Inrush Power In Va:
- 140-140 VA 60 Hz cos phi 0.75 (at 20°C) || 160-160 VA 50 Hz cos phi 0.75 (at 20°C)
- Mounting Support:
- rail || plate
- Net Weight:
- 1.09 kg
- Climatic Withstand:
- IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
- [Ue] Rated Operational Voltage:
- power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
- Sustainable Offer Status:
- Green Premium product
- Minimum Switching Voltage:
- 17 V for Signaling circuit
- Poles Description:
- 4P
- Range Of Product:
- TeSys Deca
- Rohs Exemption Information:
- Yes
- Range:
- TeSys || TeSys Deca
- Circularity Profile:
- ENVEOLI1503009EN
- Product Certifications:
- GL || CCC || CSA || RINA || DNV || LROS (Lloyds register of shipping) || GOST || BV || UL
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Pollution Degree:
- 3
- Heat Dissipation:
- 4-5 W at 50/60 Hz
- Mechanical Robustness:
- vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor closed 15 Gn for 11 ms) || shocks contactor open 10 Gn for 11 ms)
