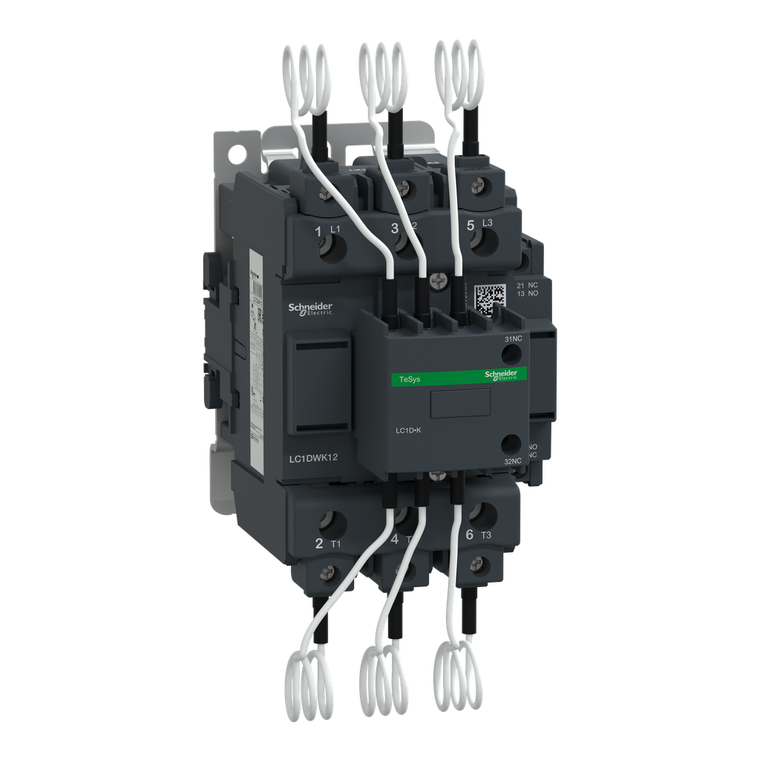

Schneider Electric LC1DWK12V7 Capacitor contactor, Tesys Deca, 63kVAR at 400/415V 50Hz, 400V AC 50/60Hz coil, screw clamp terminals

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1DWK12V7 Capacitor contactor, Tesys Deca, 63kVAR at 400/415V 50Hz, 400V AC 50/60Hz coil, screw clamp terminals

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1DWK12V7

UPC:

MPN:

LC1DWK12V7

Condition:

New

Contactor Application:

power factor correction

Pole Contact Composition:

3 NO

Depth:

154 mm

Connections - Terminals:

control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable en

Reactive Power Rating:

35 kvar 230-230 V AC 50 Hz 60°C || 63 kvar 400-400 V AC 50 Hz 60°C || 67 kvar 440-440 V AC 50 Hz 60°C || 104 kvar 690-690 V AC 50 Hz 60°C || 30 kvar 230-230 V AC 60 Hz 60°C || 60 kvar 460-460 V AC 60 Hz 60°C || 80 kvar 575-575 V AC 60 Hz 60°C

Tightening Torque:

power circuit 9 N.m connector || control circuit 1.7 N.m screw clamp terminals

Reach Free Of Svhc:

Yes

Product Certifications:

IECEE CB Scheme || UL || CSA || UKCA

Warranty:

18 months

Maximum Operating Rate:

240 cyc/h

Device Short Name:

LC1DWK

Ambient Air Temperature For Operation:

-5-60°C

Toxic Heavy Metal Free:

Yes

Product Or Component Type:

capacitor duty contactor

Control Circuit Type:

AC 50/60 Hz

Standards:

EN/IEC 60947-1 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1

Ip Degree Of Protection:

IP20 front face IEC 60529

Poles Description:

3P

Device Location In System:

line interruption || inside delta interruption

Weight:

1.65 kg

Sustainable Offer Status:

Green Premium product

Rohs Exemption Information:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mounting Support:

DIN rail || plate

Range:

TeSys

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Country of Origin:

Czechia

Product Name:

TeSys LC1D.K || TeSys Deca

Ambient Air Temperature For Storage:

-60-80°C

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Eu Rohs Directive:

Compliant

Utilisation Category:

AC-6b

Operating Altitude:

0...9842.52 ft (0...3000 m)

Electrical Durability:

300000 cycles 400 V || 200000 cycles 690 V

Mercury Free:

Yes

Auxiliary Contacts Type:

mechanically linked 1 NO + 2 NC IEC 60947-5-1

Environmental Disclosure:

ENVPEP111274EN

[Uc] Control Circuit Voltage:

400 V AC 50/60 Hz

[Ue] Rated Operational Voltage:

power circuit 690 V AC 50/60 Hz

Auxiliary Contact Composition:

1 NO + 2 NC instantaneous

Device Application:

control

Circularity Profile:

N/A

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Net Weight:

1.65 kg
