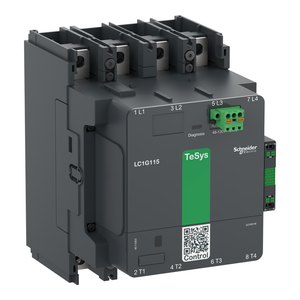

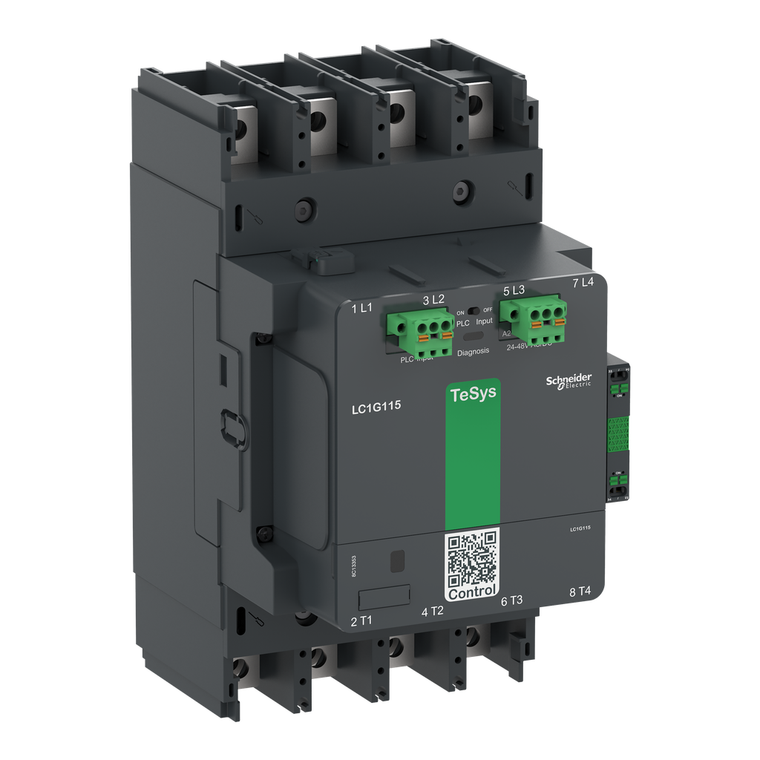

Schneider Electric LC1G1504EHEA Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 275A, 4 pole/NO, 48-130VAC/DC coil

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1G1504EHEA

UPC:

MPN:

LC1G1504EHEA

Condition:

New

[Ui] Rated Insulation Voltage:

1000 V

Protective Treatment:

TH

Hold-In Power Consumption In Va:

8.9-8.9 VA

Rated Breaking Capacity:

1280 A at 440 V

Inrush Power In Va:

260-260 VA

Power Dissipation Per Pole:

10 W AC-1 - Ith 275 A || 5 W AC-3 - Ith 150 A

Safety Reliability Level:

B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1

Inrush Power In W:

190 W

Maximum Operating Rate:

600 cyc/h AC-3 || 600 cyc/h AC-3e || 300 cyc/h AC-1

Weight:

5.1 kg

Average Impedance:

0.00018 Ohm

Net Weight:

5.1 kg

[Ue] Rated Operational Voltage:

<= 1000 V AC 50/60 Hz || <= 460 V DC

Country of Origin:

China

Maximum Horse Power Rating:

40 hp at 200/208 V 60 Hz || 50 hp at 230/240 V 60 Hz || 100 hp at 460/480 V 60 Hz || 125 hp at 575/600 V 60 Hz

Device Short Name:

LC1G

[Ie] Rated Operational Current:

150 A (at <60°C) at <= 440 V AC-3 || 275 A (at <40°C) at <= 1000 V AC-1

Range:

TeSys

Product Or Component Type:

contactor

Depth:

193 mm

Circularity Profile:

ENVEOLI2105013

Ambient Air Temperature For Operation:

-25-60°C

Connections - Terminals:

power circuit: bar 2 - busbar cross section: 25 x 6 mm || power circuit: lugs-ring terminals 1 185-185 mm² || power circuit: bolted connection || control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end || control

[Icw] Rated Short-Time Withstand Current:

1.2 kA - 10 s || 0.7 kA - 30 s || 0.6 kA - 1 min || 0.45 kA - 3 min || 0.35 kA - 10 min

Operating Time:

40...70 ms closing || 15...50 ms opening

Mechanical Robustness:

vibrations 5-300 Hz 2 gn contactor open || vibrations 5-300 Hz 4 gn contactor closed || shocks 10 gn 11 ms contactor open || shocks 15 gn 11 ms contactor closed

Mechanical Durability:

8 Mcycles

Pvc Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For m

Mercury Free:

Yes

Poles Description:

4P

Rohs Exemption Information:

Yes

Environmental Disclosure:

ENVPEP2105013

Auxiliary Contact Composition:

1 NO + 1 NC

Tightening Torque:

18 N.m

Permissible Ambient Air Temperature Around The Device:

-40-70°C at Uc

Ip Degree Of Protection:

IP2X front face with shrouds IEC 60529 || IP2X front face with shrouds VDE 0106

Compatibility Code:

LC1G

[Uimp] Rated Impulse Withstand Voltage:

8 kV

Associated Fuse Rating:

160 A aM at <= 440 V for motor || 160 A aM at <= 690 V for motor || 315 A gG at <= 690 V

Irms Rated Making Capacity:

1890 A at 440 V

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Uc] Control Circuit Voltage:

48...130 V AC 50/60 Hz || 48...130 V DC

Pole Contact Composition:

4 NO

Control Circuit Voltage Limits:

operational: 0.8 Uc Min...1.1 Uc Max (at <60°C) || drop-out: 0.1 Uc Max...0.45 Uc Min (at <60°C)

Mounting Support:

plate
