Schneider Electric LC1G6304EHEN Contactor, high power, TeSys Giga 630, 4 pole/NO, AC-1 <=440V 1050A, 48-130VAC/DC coil
Schneider Electric
$4,225.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

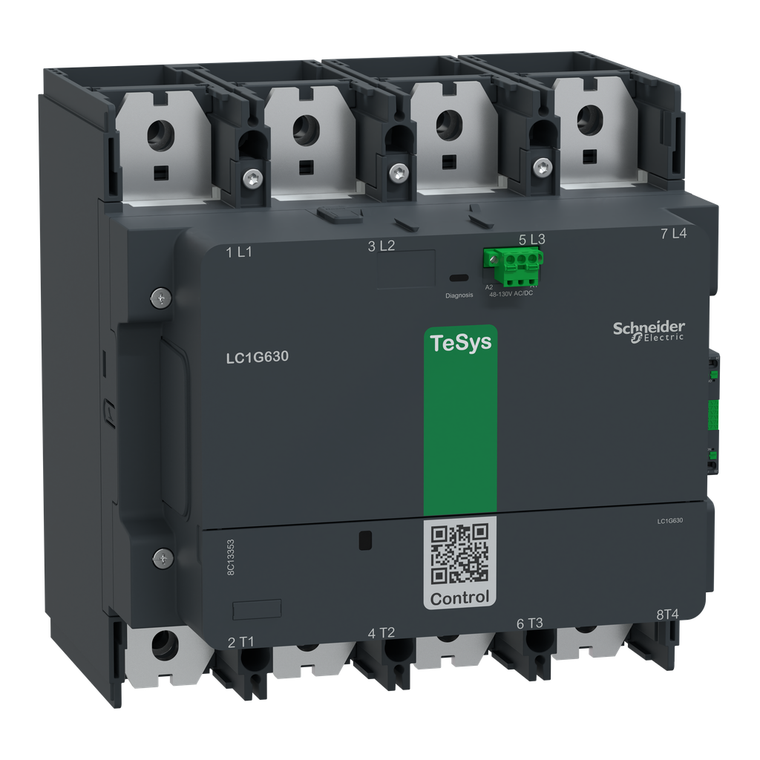

Schneider Electric LC1G6304EHEN Contactor, high power, TeSys Giga 630, 4 pole/NO, AC-1 <=440V 1050A, 48-130VAC/DC coil
TeSys Giga high power contactor, 4 poles (4 NO) for category AC-1 applications up to 1050A @440V. It provides a 48-130V AC/DC wide band low consumption electronic coil and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. It procures high reliability and durability with 5 Mcycles mechanical durability. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It is possibility to replace switching module (main contacts), enhancement contactor life. Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. To be used with power connection by bolted connection and control connections by spring terminals, accessible from front for easy and quick replacement. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude. The dimension is 324mm x 280mm x 248mm (H x W x D), compact size enables panel space savings. Multi standards certified(CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach). Unique QR code provides quick access to complete product data.
- Ambient Air Temperature For Operation:
- -25-60°C
- Compatibility Code:
- LC1G
- Mechanical Robustness:
- vibrations 5-300 Hz 2 gn contactor open || vibrations 5-300 Hz 4 gn contactor closed || shocks 10 gn 11 ms contactor open || shocks 15 gn 11 ms contactor closed
- Halogen Content Performance:
- Halogen free plastic parts product
- Mounting Support:
- plate
- Associated Fuse Rating:
- 630 A aM at <= 440 V for motor || 500 A aM at <= 690 V for motor || 1250 A gG at <= 690 V
- Pole Contact Composition:
- 4 NO
- Control Circuit Voltage Limits:
- operational: 0.8 Uc Min...1.1 Uc Max (at <60°C) || drop-out: 0.1 Uc Max...0.45 Uc Min (at <60°C)
- Sustainable Offer Status:
- Green Premium product
- Range Of Product:
- TeSys Giga
- Height:
- 284 mm
- Hold-In Power Consumption In W:
- 9.5-9.5 W
- [Ue] Rated Operational Voltage:
- <= 1000 V AC 50/60 Hz || <= 460 V DC
- Net Weight:
- 18 kg
- Connections - Terminals:
- power circuit: bar 2 - busbar cross section: 52 x 20 mm || power circuit: lugs-ring terminals 1 185-185 mm² || control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end || control circuit: push-in 1 0.25-2.5 mm² -
- Inrush Power In W:
- 790 W
- Range:
- TeSys
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Tightening Torque:
- 58 N.m
- Utilisation Category:
- AC-3 || AC-3e || AC-1 || AC-5a || AC-5b || AC-6a || AC-6b || DC-1 || DC-3 || DC-5
- Pvc Free:
- Yes
- Contactor Application:
- power switching
- Rated Breaking Capacity:
- 5550 A at 440 V
- Weight:
- 18 kg
- Maximum Operating Rate:
- 600 cyc/h AC-3 || 600 cyc/h AC-3e || 300 cyc/h AC-1
- Environmental Disclosure:
- ENVPEP2105013
- Circularity Profile:
- ENVEOLI2105013
- Eu Rohs Directive:
- Compliant with Exemptions
- [Uc] Control Circuit Voltage:
- 48...130 V AC 50/60 Hz || 48...130 V DC
- Connection Pitch:
- 70 mm
- Permissible Ambient Air Temperature Around The Device:
- -40-70°C at Uc
- Color:
- dark grey
- Irms Rated Making Capacity:
- 7220 A at 440 V
- Hold-In Power Consumption In Va:
- 18.7-18.7 VA
- Overvoltage Category:
- III
- Inrush Power In Va:
- 990-990 VA
- Coil Technology:
- built-in bidirectional peak limiting
- Protective Treatment:
- TH
- Device Short Name:
- LC1G
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV
- Operating Time:
- 40...70 ms closing || 15...50 ms opening
- Rohs Exemption Information:
- Yes
- Product Certifications:
- CB Scheme || CCC || cULus || EAC || CE || UKCA || EU-RO-MR by DNV-GL
- Safety Reliability Level:
- B10d = 100000 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 1800000 cycles contactor with mechanical load EN/ISO 13849-1
- Width:
- 281 mm
- [Ith] Conventional Free Air Thermal Current:
- 1050 A (at 40°C)
- Auxiliary Contact Composition:
- 1 NO + 1 NC
- Ip Degree Of Protection:
- IP2X front face with shrouds IEC 60529 || IP2X front face with shrouds VDE 0106
- Depth:
- 266 mm
- China Rohs Regulation:
- X
