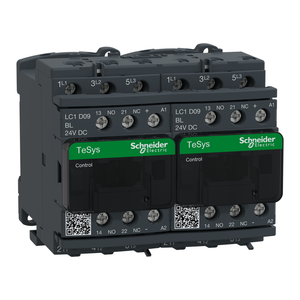

Schneider Electric LC2D096BL TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V low consumption DC coil
Schneider Electric
$364.20
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LC2D096BL TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V low consumption DC coil
TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides 24V DC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by ring-lugs screw terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
- Circularity Profile:
- ENVEOLI1102030EN
- Power Dissipation Per Pole:
- 0.2 W AC-3 || 1.56 W AC-1 || 0.2 W AC-3e
- Safety Reliability Level:
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Depth:
- 95 mm
- Ip Degree Of Protection:
- IP20 front face IEC 60529
- Control Circuit Type:
- DC low consumption
- Overvoltage Category:
- III
- Product Certifications:
- DNV || CSA || CCC || UL || GL || LROS (Lloyds register of shipping) || BV || RINA || GOST || UKCA
- Irms Rated Making Capacity:
- 250 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1
- Net Weight:
- 1.017 kg
- Product Or Component Type:
- reversing contactor
- Fire Resistance:
- 850°C IEC 60695-2-1
- Pole Contact Composition:
- 3 NO
- [Ie] Rated Operational Current:
- 9 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 25 A (at <60°C) at <= 440 V AC AC-1 for power circuit
- Motor Power Kw:
- 2.2 kW at 220...230 V AC 50-60 Hz || 4 kW at 380...400 V AC 50-60 Hz || 4 kW at 415 V AC 50-60 Hz || 4 kW at 440 V AC 50-60 Hz || 5.5 kW at 500 V AC 50-60 Hz || 5.5 kW at 660...690 V AC 50-60 Hz
- Maximum Horse Power Rating:
- 0.5 hp at 115 V AC 60 Hz for 1 phase motors || 1 hp at 230/240 V AC 60 Hz for 1 phase motors || 2 hp at 200/208 V AC 60 Hz for 3 phase motors || 2 hp at 230/240 V AC 60 Hz for 3 phase motors || 5 hp at 460/480 V AC 60 Hz for 3 phase motors || 7.5 hp
- Poles Description:
- 3P
- Width:
- 90 mm
- Ambient Air Temperature For Storage:
- -60-80°C
- [Uc] Control Circuit Voltage:
- 24 V DC
- Minimum Switching Voltage:
- 17 V for Signaling circuit
- Mechanical Durability:
- 30 Mcycles
- Range:
- TeSys || TeSys Deca
- Minimum Switching Current:
- 5 mA for Signaling circuit
- Climatic Withstand:
- IACS E10 || IEC 60947-1 Annex Q category D
- [Ith] Conventional Free Air Thermal Current:
- 10 A (at 60°C) for Signaling circuit || 25 A (at 60°C) for power circuit
- Tightening Torque:
- control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5 || control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || power circuit 1.7 N.m lugs-ring terminals flat Ø 8 mm M3.5 || power circuit 1.7 N.m lugs-ring terminals Philips No 2 M3
- Interlocking Type:
- mechanical
- Device Presentation:
- preassembled with reversing power busbar
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Protective Cover:
- with
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Icw] Rated Short-Time Withstand Current:
- 30 A 40°C - 10 min for power circuit || 61 A 40°C - 1 min for power circuit || 105 A 40°C - 10 s for power circuit || 210 A 40°C - 1 s for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms fo
- Rated Breaking Capacity:
- 250 A at 440 V for power circuit conforming to IEC 60947
- Contactor Application:
- resistive load || motor control
- Environmental Disclosure:
- ENVPEP110230EN
- Hold-In Power Consumption In W:
- 2.4-2.4 W 20°C
- Auxiliary Contact Composition:
- 1 NO + 1 NC
- Insulation Resistance:
- > 10 MOhm for Signaling circuit
- Weight:
- 1.017 kg
- Height:
- 77 mm
- Device Short Name:
- LC2D
- [Ue] Rated Operational Voltage:
- power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
- Protective Treatment:
- TH IEC 60068-2-30
- Associated Fuse Rating:
- 25 A gG at <= 690 V coordination type 1 for power circuit || 20 A gG at <= 690 V coordination type 2 for power circuit || 10 A gG for Signaling circuit conforming to IEC 60947-5-1
- Signaling Circuit Frequency:
- 25...400 Hz
- Warranty:
- 18 months
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947
- Pollution Degree:
- 3
