Schneider Electric

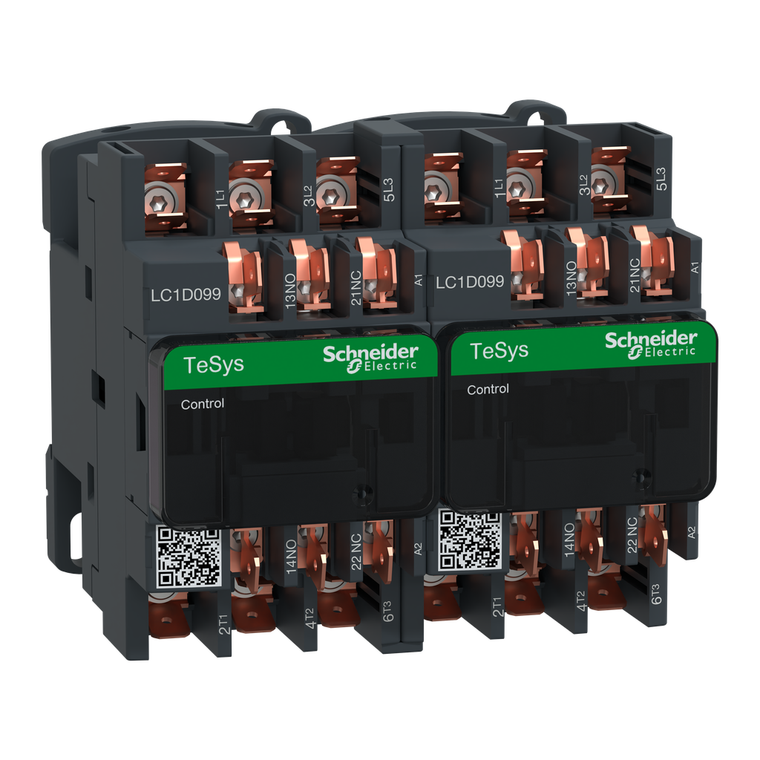

Schneider Electric LC2D099B7 TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V AC coil

(No reviews yet) Write a Review
SKU:
LC2D099B7
MPN:
LC2D099B7
Condition:
New
Interlocking Type:
mechanical
Rohs Exemption Information:
Yes
Tightening Torque:
control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 2.5 N.m screw clamp terminals pozidriv No 2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Coil Technology:
without built-in suppressor module
Electrical Durability:
0.6 Mcycles 25 A AC-1 <= 440 V || 2 Mcycles 9 A AC-3 <= 440 V
Poles Description:
3P
Insulation Resistance:
> 10 MOhm for Signaling circuit
Range:
TeSys || TeSys Deca
[Icw] Rated Short-Time Withstand Current:
30 A 40°C - 10 min for power circuit || 61 A 40°C - 1 min for power circuit || 105 A 40°C - 10 s for power circuit || 210 A 40°C - 1 s for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms fo
Eu Rohs Directive:
Compliant
Mounting Support:
plate || rail
Auxiliary Contact Composition:
1 NO + 1 NC
Signaling Circuit Frequency:
25...400 Hz
Minimum Switching Voltage:
17 V for Signaling circuit
Connections - Terminals:
power circuit Faston terminals 2 || control circuit Faston terminals 1
Control Circuit Voltage Limits:
0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz
Inrush Power In Va:
70-70 VA 60 Hz cos phi 0.75 (at 20°C) || 70-70 VA 50 Hz cos phi 0.75 (at 20°C)
Protective Treatment:
TH IEC 60068-2-30
Minimum Switching Current:
5 mA for Signaling circuit
Environmental Disclosure:
ENVPEP1501004
Width:
90 mm
Product Name:
TeSys D || TeSys Deca
Contactor Application:
motor control || resistive load
Mechanical Robustness:
vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open10 Gn for 11 ms || shocks contactor closed15 Gn for 11 ms
Operating Altitude:
0...9842.52 ft (0...3000 m)
Average Impedance:
2.5 mOhm - Ith 25 A 50 Hz for power circuit
Hold-In Power Consumption In Va:
7.5-7.5 VA 60 Hz cos phi 0.3 (at 20°C) || 7-7 VA 50 Hz cos phi 0.3 (at 20°C)
Protective Cover:
with
Country of Origin:
France
Product Certifications:
DNV || CSA || CCC || UL || GL || LROS (Lloyds register of shipping) || BV || RINA || GOST || UKCA
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Standards:
CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
Auxiliary Contacts Type:
mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
[Ui] Rated Insulation Voltage:
power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL
Pvc Free:
Yes
Utilisation Category:
AC-3 || AC-1
Device Short Name:
LC2D
Circularity Profile:
ENVEOLI1501004
Ambient Air Temperature For Operation:
-40-60°C || 60-70°C with derating
Product Or Component Type:
reversing contactor
Maximum Operating Rate:
3600 cyc/h 60°C
Operating Time:
12...22 ms closing || 4...19 ms opening
Fire Resistance:
850°C IEC 60695-2-1
Flame Retardance:
V1 conforming to UL 94
Motor Power Kw:
2.2 kW at 220...230 V AC 50 Hz || 4 kW at 380...400 V AC 50 Hz || 4 kW at 415...440 V AC 50 Hz || 5.5 kW at 500 V AC 50 Hz || 5.5 kW at 660...690 V AC 50 Hz
Climatic Withstand:
IACS E10 || IEC 60947-1 Annex Q category D
Warranty:
18 months
$287.64

Description

TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides 24V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
