Schneider Electric LC2D25BD TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 25 A - 24 V DC coil

Schneider Electric LC2D25BD TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 25 A - 24 V DC coil

Schneider Electric
SKU:
LC2D25BD
$464.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

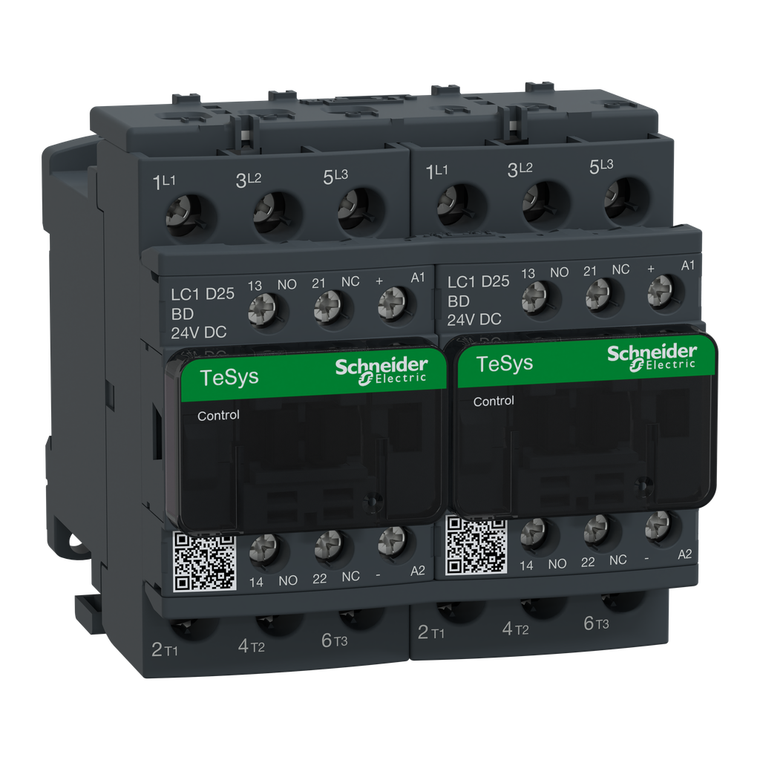

LC2D25BD is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications. Rated 25A AC-3 11kW@400V, it includes a 24V DC coil, 2NO+2NC aux contacts, a mechanical interlock. LC2D25BD is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 11kW@400V. It includes a 24V DC coil and 2NO+2NC built-in auxiliary contacts, NC mirror certified. Compact, DIN-rail mounting, with mechanical interlock and pre-wired reversing circuit, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 90mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 24V DC coil for easy integration to all control systems. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 2 million cycles at 25A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connection by screw clamp terminals.
Additional Information
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947
[Uc] Control Circuit Voltage:
24 V DC
Fire Resistance:
850°C IEC 60695-2-1
Rohs Exemption Information:
Yes
Pollution Degree:
3
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Protective Treatment:
TH IEC 60068-2-30
Country of Origin:
United States
Weight:
1.117 kg
Coil Technology:
built-in bidirectional peak limiting diode suppressor
Standards:
CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
Depth:
101 mm
Utilisation Category:
AC-1 || AC-3 || AC-3e
Interlocking Type:
mechanical
Mechanical Robustness:
vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open8 Gn for 11 ms
[Ie] Rated Operational Current:
25 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 40 A (at <60°C) at <= 440 V AC AC-1 for power circuit
Eu Rohs Directive:
Compliant with Exemptions
Control Circuit Type:
DC standard
Flame Retardance:
V1 conforming to UL 94
Control Circuit Voltage Limits:
0.1...0.25 Uc -40-70°C drop-out DC || 0.7...1.25 Uc -40-60°C operational DC || 1...1.25 Uc 60-70°C operational DC
Environmental Disclosure:
ENVPEP110230EN
[Icw] Rated Short-Time Withstand Current:
50 A 40°C - 10 min for power circuit || 120 A 40°C - 1 min for power circuit || 240 A 40°C - 10 s for power circuit || 380 A 40°C - 1 s for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms f
Pole Contact Composition:
3 NO
Width:
90 mm
Mercury Free:
Yes
Climatic Withstand:
IACS E10 || IEC 60947-1 Annex Q category D
Electrical Durability:
1.65 Mcycles 25 A AC-3 <= 440 V || 1.4 Mcycles 40 A AC-1 <= 440 V || 1.65 Mcycles 25 A AC-3e <= 440 V
Operating Altitude:
0...9842.52 ft (0...3000 m)
Auxiliary Contact Composition:
1 NO + 1 NC
Device Presentation:
preassembled with reversing power busbar
Product Name:
TeSys Deca
Inrush Power In W:
5.4-5.4 W 20°C)
Protective Cover:
with
Connections - Terminals:
control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit scr
Maximum Horse Power Rating:
3 hp at 230/240 V AC 60 Hz for 1 phase motors || 5 hp at 200/208 V AC 60 Hz for 3 phase motors || 2 hp at 115 V AC 60 Hz for 1 phase motors || 7.5 hp at 230/240 V AC 60 Hz for 3 phase motors || 15 hp at 460/480 V AC 60 Hz for 3 phase motors || 20 hp
Ambient Air Temperature For Storage:
-60-80°C
[Ith] Conventional Free Air Thermal Current:
10 A (at 60°C) for Signaling circuit || 40 A (at 60°C) for power circuit
Hold-In Power Consumption In W:
5.4-5.4 W 20°C
Range:
TeSys || TeSys Deca
Poles Description:
3P
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Average Impedance:
2 mOhm - Ith 40 A 50 Hz for power circuit
Warranty:
18 months
Sustainable Offer Status:
Green Premium product
Time Constant:
28 ms
Mechanical Durability:
30 Mcycles
Product Certifications:
DNV || CSA || CCC || UL || GL || LROS (Lloyds register of shipping) || BV || RINA || GOST || UKCA || CB
