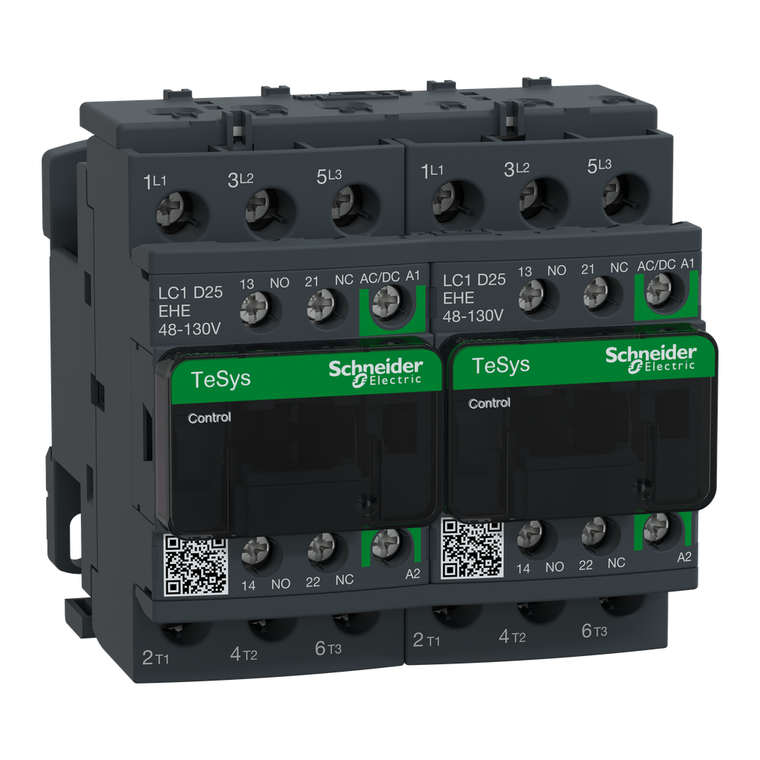

Schneider Electric LC2D25EHE TeSys Deca reversing contactor - 3P - <= 440 V - 25 A AC-3 - 48...130 V AC/DC coil

Schneider Electric LC2D25EHE TeSys Deca reversing contactor - 3P - <= 440 V - 25 A AC-3 - 48...130 V AC/DC coil

Schneider Electric
SKU:
LC2D25EHE
$209.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
LC2D25EHE is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications. Rated 25A AC-3 11kW@400V, it includes a 48-130V AC/DC low consumption electronic coil, 2NO+2NC aux contacts, a mechanical interlock. LC2D25EHE is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 11kW@400V. It includes a 48-130V AC/DC low consumption electronic coil and 2NO+2NC built-in auxiliary contacts, NC mirror certified. Compact, DIN-rail mounting, with mechanical interlock and pre-wired reversing circuit, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 90mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with an electronic coil, wide band voltage 48-130V, AC/DC compatible, low consumption. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 2 million cycles at 25A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connection by screw clamp terminals.
Additional Information
Range:
TeSys || TeSys Deca
Pole Contact Composition:
3 NO
Heat Dissipation:
0.8-0.8 W 50/60 Hz
Environmental Disclosure:
ENVPEP1609001EN
Operating Altitude:
0...9842.52 ft (0...3000 m)
Hold-In Power Consumption In W:
0.8-0.8 W 20°C
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Auxiliary Contact Composition:
1 NO + 1 NC
Warranty:
18 months
Device Short Name:
LC2D
Connections - Terminals:
control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit scr
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Pollution Degree:
3
Mechanical Robustness:
vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open8 Gn for 11 ms
[Icw] Rated Short-Time Withstand Current:
50 A 40°C - 10 min for power circuit || 120 A 40°C - 1 min for power circuit || 240 A 40°C - 10 s for power circuit || 380 A 40°C - 1 s for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms f
Contactor Application:
motor control || resistive load
Electrical Durability:
2 Mcycles 21 A AC-3 <= 440 V || 0.9 Mcycles 40 A AC-1 <= 440 V || 2 Mcycles 21 A AC-3e <= 440 V
Overvoltage Category:
III
Mounting Support:
rail || plate
Depth:
92 mm
Irms Rated Making Capacity:
140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 450 A at 440 V for power circuit conforming to IEC 60947
Inrush Power In Va:
25-25 VA 50/60 Hz 20°C)
Circularity Profile:
ENVEOLI1609001EN
Device Presentation:
preassembled with reversing power busbar
Product Or Component Type:
reversing contactor
Mercury Free:
Yes
Climatic Withstand:
IACS E10 || IEC 60947-1 Annex Q category D
Utilisation Category:
AC-1 || AC-3 || AC-3e
Protective Treatment:
TH IEC 60068-2-30
Maximum Operating Rate:
3600 cyc/h 60°C
Ip Degree Of Protection:
IP20 front face IEC 60529
Fire Resistance:
850°C IEC 60695-2-1
Sustainable Offer Status:
Green Premium product
Color:
Gray SE GREY 6) || Green SE GREEN 2)
Maximum Horse Power Rating:
2 hp at 115 V AC 60 Hz for 1 phase motors || 3 hp at 230/240 V AC 60 Hz for 1 phase motors || 7.5 hp at 200/208 V AC 60 Hz for 3 phase motors || 7.5 hp at 230/240 V AC 60 Hz for 3 phase motors || 15 hp at 460/480 V AC 60 Hz for 3 phase motors || 20 h
Minimum Switching Voltage:
17 V for Signaling circuit
Country of Origin:
France
[Uc] Control Circuit Voltage:
48...130 V AC 50/60 Hz || 48...130 V DC
Flame Retardance:
V1 conforming to UL 94
Mechanical Durability:
15 Mcycles
Auxiliary Contacts Type:
mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Tightening Torque:
control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm || power circuit 2.5 N.m screw clamp terminals Philips No 2 || power
Ambient Air Temperature For Storage:
-60-80°C
Width:
90 mm
Height:
85 mm
Product Name:
Tesys Deca green || TeSys Deca
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rated Breaking Capacity:
450 A at 440 V for power circuit conforming to IEC 60947
Product Certifications:
CCC || CSA || EAC || UL || KC || DNV-GL || LROS (Lloyds register of shipping) || UKCA
Insulation Resistance:
> 10 MOhm for Signaling circuit
